BAICHUN BC 10 Quick Start Manual

Hide thumbs Also See for BC 10:
1
2
3
4
5
6

Advertisement

Table of Contents

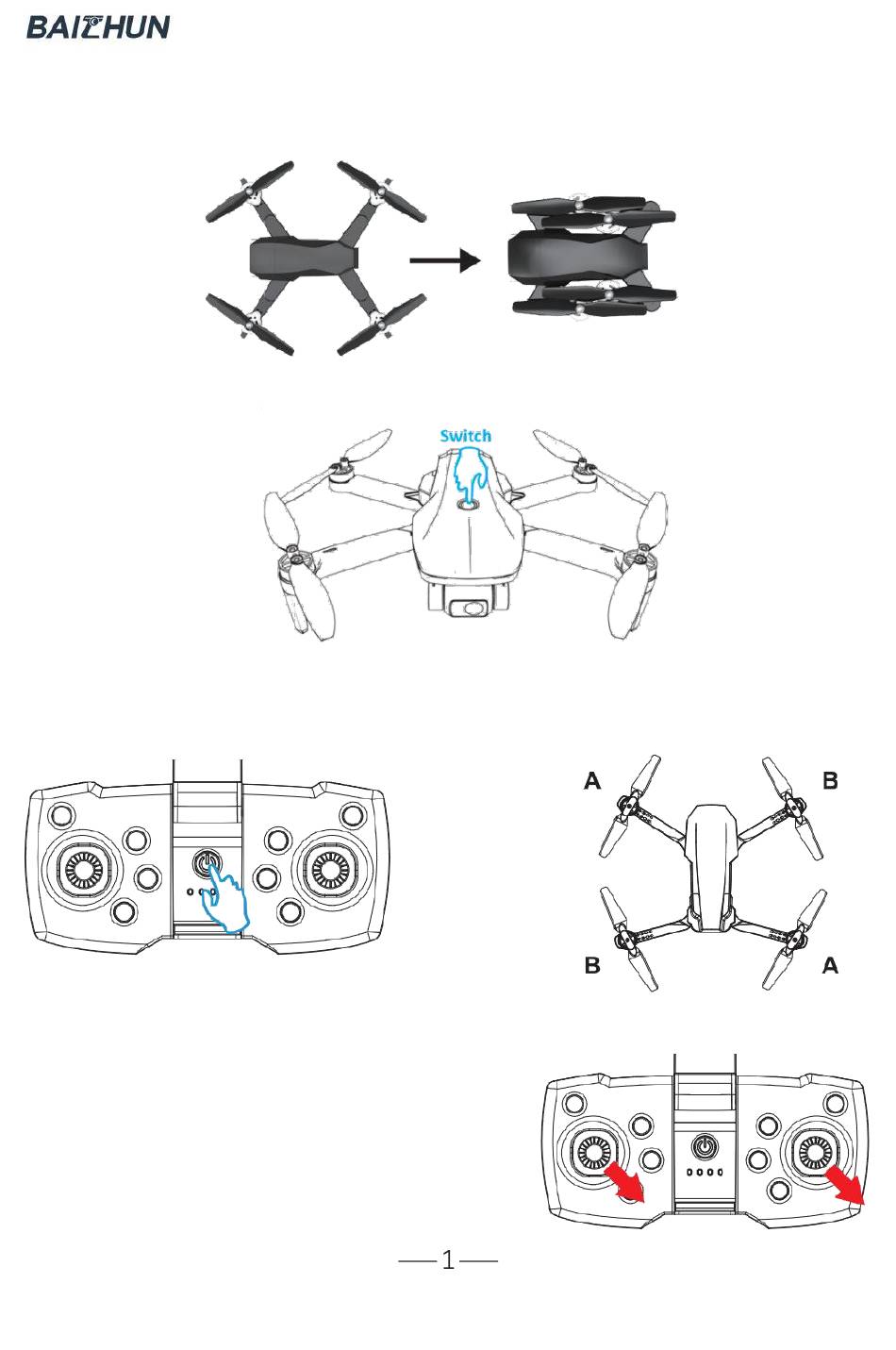

1) Unfold the arms
2) Power aircraft
Press and hold the power switch until the aircraft's lights turn on.
3) Pair remote with the aircraft
Turn on the power switch of the remote controller, and the four lights of the aircraft are always on,
that means automatic frequency pairing is successful.
4) Gyroscope calibration
Place the aircraft on a flat horizontal surface, pull down the
left and right sticks of the remote in the direction of and 5
o'clock at the same time (as shown in the picture), the
remote makes a "DI" sound, the aircraft's lights will flash
quickly during the process , once the lights change back to
the previous lights, the gyroscope calibration is completed.
Quick Start Guide
(FOR REMOTE CONTROL)
Switch
14+ EN
BC 10
Blue LED ON
Red LED ON
Gyroscope calibration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BAICHUN BC 10

Summary of Contents for BAICHUN BC 10

  • Page 1 14+ EN Quick Start Guide BC 10 (FOR REMOTE CONTROL) 1) Unfold the arms 2) Power aircraft Press and hold the power switch until the aircraft’s lights turn on. 3) Pair remote with the aircraft Turn on the power switch of the remote controller, and the four lights of the aircraft are always on, that means automatic frequency pairing is successful.

  • Page 2: Flight Control

    ALWAYS REFER TO INSTRUCTION MANUAL FOR COMPLETE DETAILS 5) Unlock engines Method 1: Push the left joystick to the highest position, when the propellers rotate, the motors are unlocked successfully. Method 2: Pull down the left joystick and right joystick at the same time in the direction of 5 o'clock and 7 o'clock, the propellers will rotate, unlock the motors successfully.

  • Page 3: Fine Tuning Adjustment

    * Fly left and right(Right joystick) 8) Stop the engines Method 1: Short press "one key landing" button. Method 2: After doing the unlock gesture, if you want to stop the motor, pull down the left joystick and the right stick at the same time in 5 and 7 o'clock direction, and the propellers will stop turning. Method 3: Pull down the left joystick to the lowest position until the propellers stop turning.

  • Page 4: Headless Mode

    10) One key to backward Press this button and hold for 2-3 seconds, the aircraft will retreat along the tail direction. At this time, when you move the right stick in any direction, the aircraft will stop continuing to retreat. : This function can only be done backwards, it can’t return to the take-off point and to land Attention automatically.

  • Page 5: Step 6: Gyroscope Calibration

    Quick Start Guide (FOR MOBILE CONTROL) Do not recommend beginners to control the aircraft with the APP Step 1: Download the app Scan QR code below using your device camera, corresponding to APP Store or Google Play Store and download the “WIFI UAV” application for free Google Play IOS Device Android Device...
  • Page 6 *Gravity Mode:Gravity Mode: In this mode, as the phone tilts and swings forward, the aircraft will be induced by the movement to fly forward. As the phone tilts and swings to the right, the aircraft will be induced by the movement to fly to the right.
