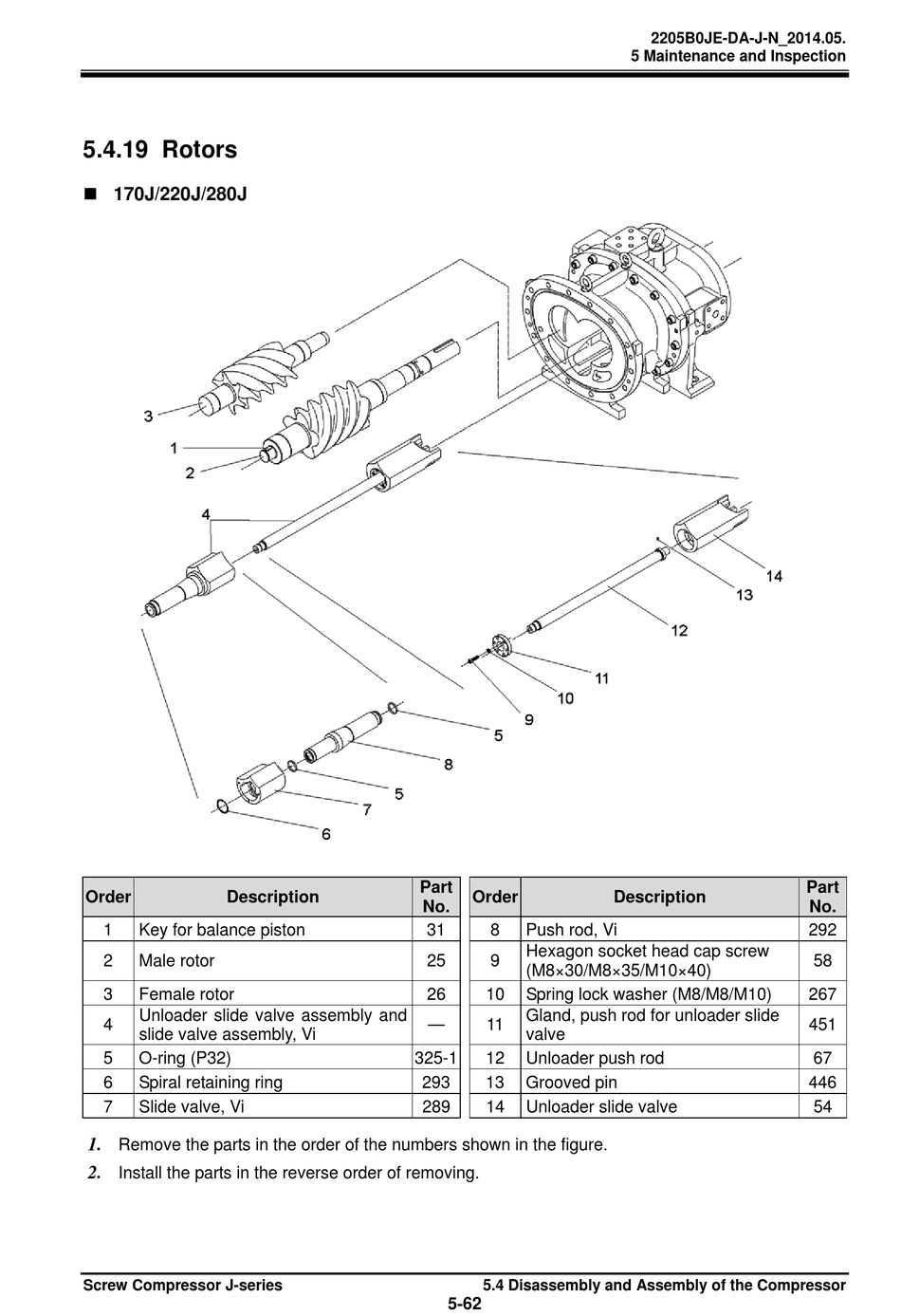

5.4.19 Rotors

 170J/220J/280J
Order Description
1 Key for balance piston
2 Male rotor
3 Female rotor
Unloader slide valve assembly and
4
slide valve assembly, Vi
5 O-ring (P32)
6 Spiral retaining ring
7 Slide valve, Vi
1.
Remove the parts in the order of the numbers shown in the figure.
2.
Install the parts in the reverse order of removing.
Screw Compressor J-series
Part
Order
No.
31 8 Push rod, Vi
Hexagon socket head cap screw
25 9
(M8×30/M8×35/M10×40)
26 10 Spring lock washer (M8/M8/M10)
Gland, push rod for unloader slide
— 11
valve
325-1 12 Unloader push rod
293 13 Grooved pin
289 14 Unloader slide valve
5.4 Disassembly and Assembly of the Compressor
5-62
2205B0JE-DA-J-N_2014.05.
5 Maintenance and Inspection
Description
Part
No.
292
58
267
451
67
446
54
