SP-6600A 5.1 SURROUND SPEAKER SET

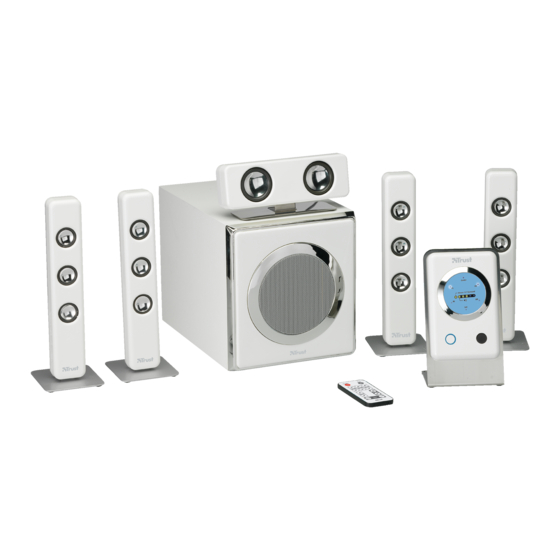

Product information
A: Display
B: Subwoofer
C: Centre speaker
D: Surround speakers
E: Remote control
F: 5.1 cable
G: DIN connection cable
H: DVD cable (x3)
I: Stereo cable
J: Game console cable
K: Stereo or 5.1 indicator
Connecting the display to the subwoofer
Use the cable (G) to connect the display to the subwoofer.
1
Connect the subwoofer's DC-out cable to the display's (A) DC-in connection.
Connecting to a PC/MP3 player
Use the 5.1 cable (F) to connect a PC to the display (A).
2
Use the jack-jack cable (I) to connect an MP3 player to the display (A).
Continue from point 6 to connect the speakers.
Connecting a DVD player
Connect the DVD cables (H) to the DVD player.
Connect the 5.1 cable (F) to the front: Green, rear: Black and centre/sub: Orange connections on the
3
display (A).
Continue from point 6 to connect the speakers.
Connecting a game console
Connect the game console cable (J) to a game console.
4
Connect the stereo cable (I) to the display's (A) stereo-in connection.
Continue from point 6 to connect the speakers.
Connecting the speakers and the power supply
5
Connect the front, rear and centre speakers to the subwoofer (B).
6
Insert the plug into a plug socket.
7
Turn the speaker set on.
Selecting stereo/5.1 sound
Stereo mode: in the stereo mode, the sound is divided between all the speakers and the indicator is
8
red.
L: On/Off button
M: LED display – displays the speakers
N: Volume indicator
O: IR receiver
P: Power button
Q: Volume of the individual speaker groups
R: Choice between 5.1 and stereo input
S: Mute function
T: System volume
U: Battery compartment
1
UK
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Trust SP-6600A
Summary of Contents for Trust SP-6600A
- Page 1 SP-6600A 5.1 SURROUND SPEAKER SET Product information A: Display L: On/Off button B: Subwoofer M: LED display – displays the speakers C: Centre speaker N: Volume indicator D: Surround speakers O: IR receiver E: Remote control P: Power button F: 5.1 cable...
- Page 2 SP-6600A 5.1 SURROUND SPEAKER SET 5.1 mode: all the speakers are controlled independently and the indicator is green. Configuring 5.1 speakers in Windows XP Click ‘Start – Run’. Type ‘mmsys.cpl’ and click ‘OK’. Click “Advanced’. Select ‘5.1 Surround Sound Speakers’ and click ‘OK’.
- Page 3 This device has a two-year product warranty which is valid from the date of purchase. Go to www.trust.com/warranty for more information. • It is forbidden to reproduce any part of this instruction manual without the permission of Trust International B.V.
