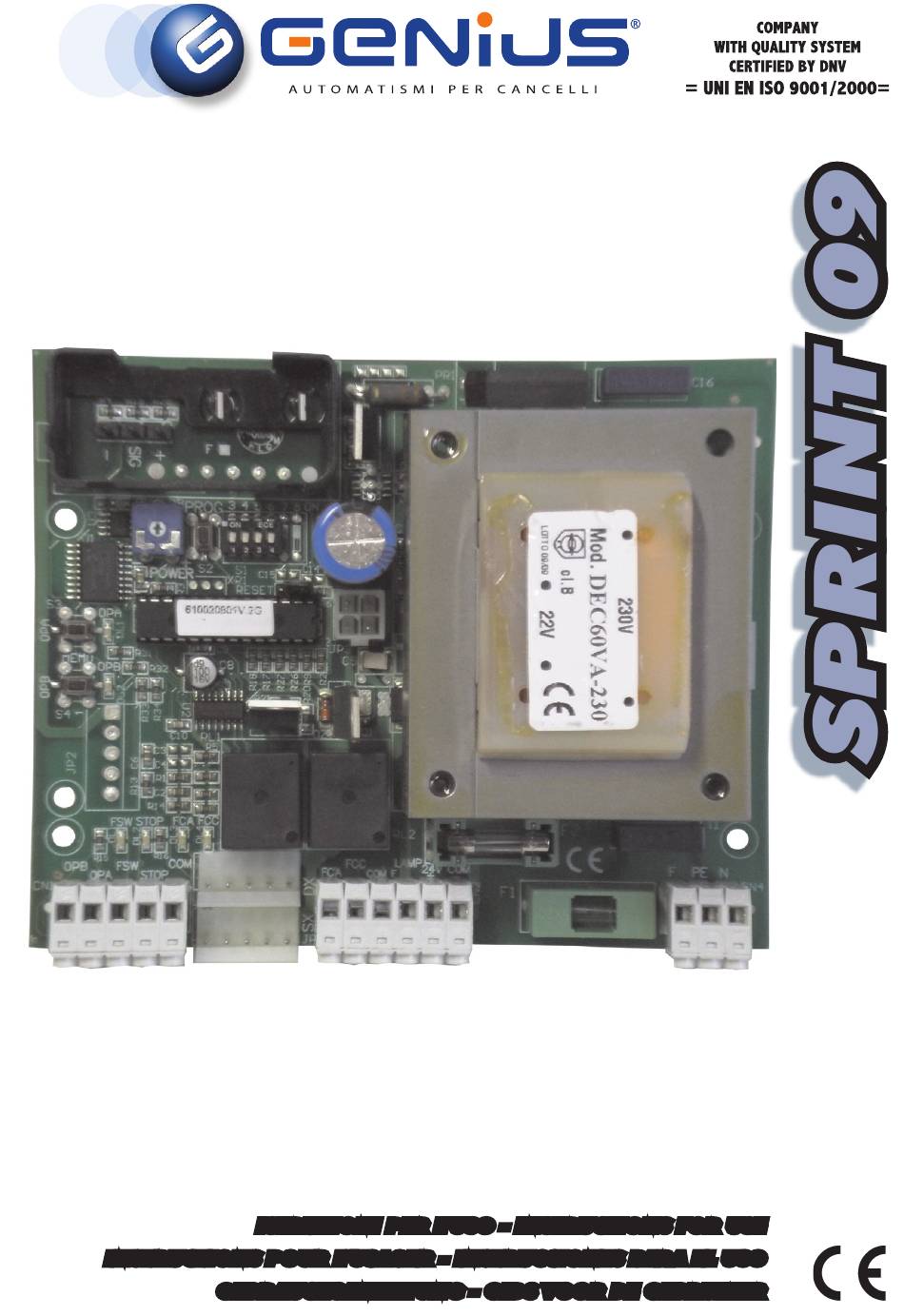

- Page 1 ISTRuzIoNI PeR l’uSo - INSTRucTIoNS foR uSe INSTRucTIoNS PouR l’uSageR - INSTRuccIoNeS PaRa el uSo gebRauchSaNleITuNg - gIdS vooR de gebRuIkeR...
- Page 2 Eloigner de la portée des enfants les radiocommandes ou tout autre générateur GENIUS declines all liability caused by improper use or use other than that for which d’impulsions, pour éviter tout actionnement involontaire de l’automatisme.
- Page 3 DEUTSCH GENIUS is niet aansprakelijk als de regels der goede techniek niet in acht genomen zijn bij de bouw van het sluitwerk dat gemotoriseerd moet worden, noch voor vervormingen die zouden kunnen ontstaan bij het gebruik.
- Page 4 SPRINT 09 Pag. Pag. Immagini - Images - Images - Imágenes - Bilder - Afbeeldingen Immagini - Images - Images - Imágenes - Bilder - Afbeeldingen Fig. 1 Fig. 2 Fig. 3...
- Page 5 Pag. Pag. SPRINT 09 Immagini - Images - Images - Imágenes - Bilder - Afbeeldingen Immagini - Images - Images - Imágenes - Bilder - Afbeeldingen Fig. 4 Fig. 5 Fig. 6 Fig. 7...
-
Page 6: Ce Declaration Of Conformity
2006/95/EC Low Voltage directive. • 2004/108/EC Electromagnetic Compatibility directive. Additional information: This product underwent a test in a typical uniform configuration (all products manufactured by GENIUS S.p.A.). Grassobbio, October 22, 2009 Managing Director D. Gianantoni Notes on reading the instruction Read this installation manual to the full before you begin installing the product. -
Page 7: General Characteristics
1. GENERAL CHARACTERISTICS We thank you for having chosen one of our products. GENIUS is certain that from it you will obtain all the performance you require. All our products are the result of years of experience in the field automated systems, with the added advantage of being part of one of the sector’s leading groups. -
Page 8: Connections And Operation
SPRINT 09 Pagina Guide for the installer 5. CONNECTIONS AND OPERATION 5.1. TERMINAL BOARD CN1 (Fig. 2) 5.1.1. S “STOP & COM” terminals. Normally closed contact. Connect, to these terminals, any safety device (push-button, key selector, etc..) which must stop gate movement, disabling all automatic functions. The gate resumes its memory-stored cycle only by means of another total opening pulse. - Page 9 Pagina SPRINT 09 Guide for the installer 5.4. MOTOR CONNECTION The motor cable must be connected to one of the two rapid connectors, JP4, according to gate closing direction. More precisely, if the gate, in its closing position, is on the right of the gearmotor, the motor cable must be connected to connector JP4 DX, vice versa, the motor must be connected to connector JP4 SX.
-
Page 10: Encoder Operation
SPRINT 09 Pagina Guide for the installer 8. ENCODER OPERATION Thanks to encoder control, this control unit guarantees installation conforming to the current safety regulations. The encoder is active both when the gate is beng opened and closed. During the opening manoeuvre, the encoder reverses the travel direction for about two seconds, locating the control unit in •... - Page 11 Pagina SPRINT 09 Guide for the installer 12.1. Memory storage of 868 MHz radio controls You can memory store up to a maximum of 250 codes, subdivided between the two channels, OPEN A and OPEN B. On the radio control, simultaneously press and hold down push-buttons P1 and P2 (see radio control instructions). After about one second, the radio control LED begins to flash.
-
Page 12: Function Logics
SPRINT 09 Pagina Guide for the installer 13. PROTECTIVE FUSES There are two protective fuses on the control unit. The values and dimensions of the fuses are shown in the table below: FUSE PROTECTION FUSE PROTECTION F1=T3.15A 250V - 5x20... - Page 13 Pagina SPRINT 09 Guide for the installer STEP-BY-STEP MANUAL LOGIC DIP-SWITCH 3=OFF / DIP-SWITCH 5=ON INPUTS GATE STATUS PHOTOCELLS OPEN A OPEN B STOP DIP-SWITCH 4=OFF DIP-SWITCH 4=ON Gate opens Disables OPEN com- Disables OPEN com- Disables OPEN com-...
- Page 14 SPRINT 09 Pagina 9 NOTE - NOTES - NOTE - NOTAS - ANMERKUNG - OPMERKINGEN...
- Page 15 Pagina 0 SPRINT 09 NOTE - NOTES - NOTE - NOTAS - ANMERKUNG - OPMERKINGEN...
- Page 16 Les descriptions et les illustrations du présent manuel sont fournies à titre indicatif. GENIUS se réserve le droit d’apporter à tout moment les modifications qu’elle jugera utiles sur ce produit tout en conservant les caractéristiques essentielles, sans devoir pour autant mettre à...
