Summary of Contents for Caple WDU060

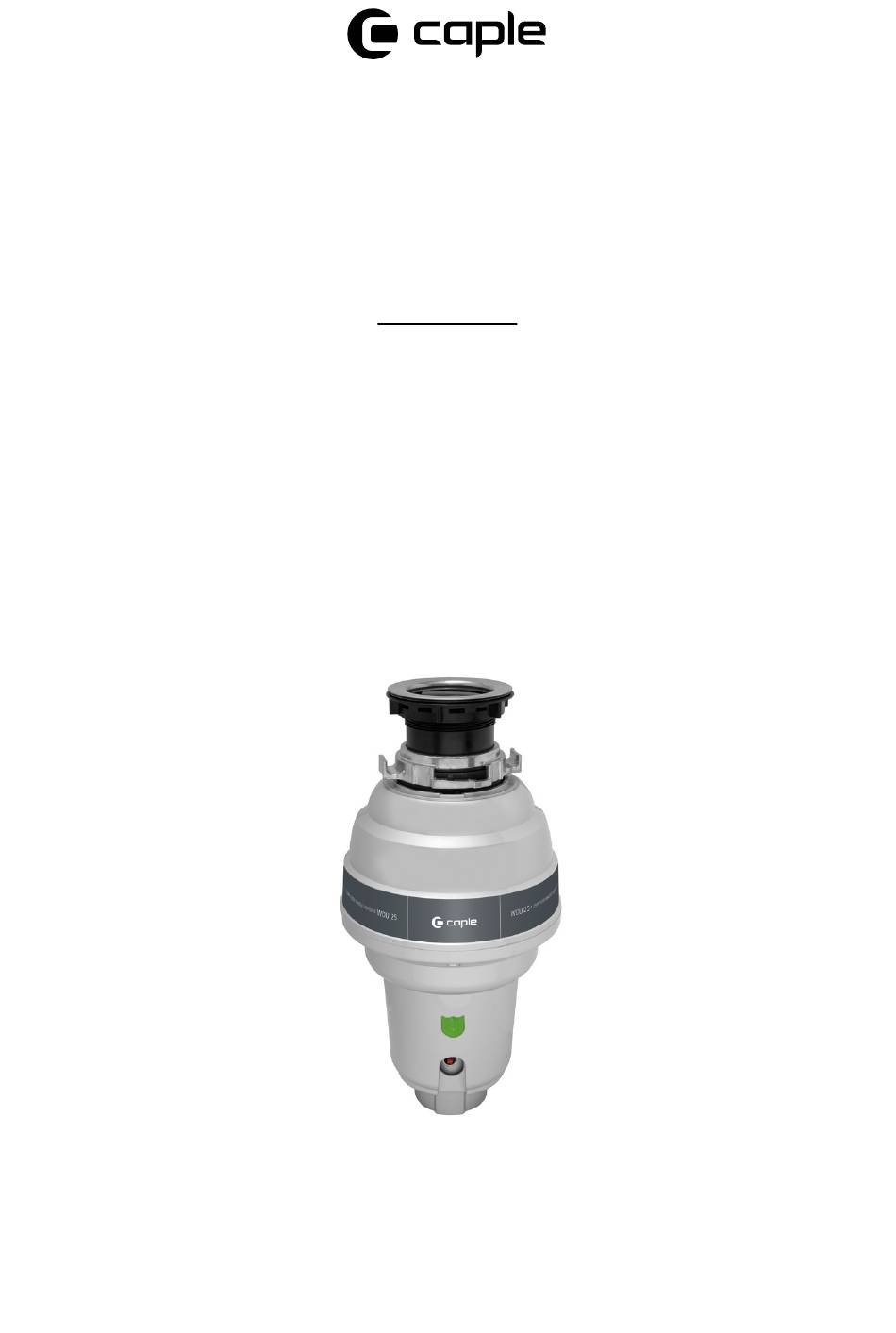

- Page 1 W a s t e D i s p o s a l U n i t I n s t r u c t i o n M a n u a l WDU060, WDU080 & WDU125 WDU125 Shown Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
Dishwasher Connection Installation Of Mounting Assembly Electrical Connections Attaching Discharge Elbow Operating Instructions Cleaning And Maintenance Installation Dimensions Troubleshooting Air Switch Assembly Instructions Caple Contact Details Instruction manual WDU060, WDU080 & WDU125 Please keep this instruction manual for future reference... -
Page 3: Instructions
Model information and serial number appears on the rating label affixed to bottom of the disposer. For your convenience,write down the model and serial numbers prior to installation. Instruction manual WDU060, WDU080 & WDU125 3 Please keep this instruction manual for future reference... -
Page 4: Safety Instructions
- When attempting to remove objects from a waste disposer use long-handled tongs or pliers. If the disposer is magnetically actuated, non-magnetic tools should be used. Instruction manual WDU060, WDU080 & WDU125 Please keep this instruction manual for future reference... - Page 5 - Children should be supervised to ensure that they do not play with the appliance. Instruction manual WDU060, WDU080 & WDU125 5 Please keep this instruction manual for future reference...
-
Page 6: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Instruction manual WDU060, WDU080 & WDU125 Please keep this instruction manual for future reference... -
Page 7: Dishwasher Connection
Run water and RUBBER check for leaks. HOSE DISHWASHER HOSE DRAIN DISPOSER *Air gap may not be required for all installations. Check local plumbing codes. Instruction manual WDU060, WDU080 & WDU125 7 Please keep this instruction manual for future reference... -
Page 8: Installation Of Mounting Assembly
ELBOW GASKET HOPPER through rubber gasket into sink opening. Do not SCREWS rotate sink flange once it is seated. ELBOW FLANGE RESET BUTTON (FRONT) DISCHARGE ELBOW Instruction manual WDU060, WDU080 & WDU125 Please keep this instruction manual for future reference... - Page 9 BOTTOM BEAD the cushion mount acts as a gasket between the bottom of the sink flange and the top of the disposer. See illustration 3G. Instruction manual WDU060, WDU080 & WDU125 9 Please keep this instruction manual for future reference...
-
Page 10: Electrical Connections
3mm contact separation In each pole. 20Amp DP switches BS 3676 meet this condition. 13 AMP FUSED SPUR MOUNTED UNDER SINK Instruction manual WDU060, WDU080 & WDU125 Please keep this instruction manual for future reference... - Page 11 A molded plug with a loose lead with disconnected wires can be hazardous as an electrical shock hazard could occur should such a plug be inserted into a 13 amp socket anywhere within the home. Instruction manual WDU060, WDU080 & WDU125 11 Please keep this instruction manual for future reference...
- Page 12 The appliance must be installed so that reset button is readily accessible. Instruction manual WDU060, WDU080 & WDU125 Please keep this instruction manual for future reference...
-
Page 13: Attaching Discharge Elbow
› If mount ring is hard to turn, you may add a small amount of petroleum jelly or liquid soap to hopper projections. Run water and check for leaks. Instruction manual WDU060, WDU080 & WDU125 13 Please keep this instruction manual for future reference... -
Page 14: Operating Instructions
NOT grind or dispose of such items as plastic, tin cans, bottle caps, glass, china, leather, cloth, rubber, string, clams and oyster shells, aluminium foil or feathers. Instruction manual WDU060, WDU080 & WDU125 Please keep this instruction manual for future reference... -
Page 15: Cleaning And Maintenance
Do not be alarmed, the stainless steel turntables used will not corrode and can be cleaned accordingly. Instruction manual WDU060, WDU080 & WDU125 15 Please keep this instruction manual for future reference... -
Page 16: Installation Dimensions
W D U 0 8 0 219mm 185mm 161mm 404mm 70mm 354mm 70mm 140mm 137mm 132mm SI NGL E B OWL SIN G LE B OWL 231mm aprox. 255mm aprox. Instruction manual WDU060, WDU080 & WDU125 Please keep this instruction manual for future reference... - Page 17 E L B O W D E TA I L S - A L L M O D E L S 220mm 185mm 1 1/2” B.P.S. 439mm 70mm 140mm S INGLE B OW L 255mm aprox. Instruction manual WDU060, WDU080 & WDU125 17 Please keep this instruction manual for future reference...
-
Page 18: Troubleshooting
Dislodge object by rotating table with a wooden spoon handle (see 9A) and remove object. If no foreign object is present, there may be internal problems. Instruction manual WDU060, WDU080 & WDU125 Please keep this instruction manual for future reference... - Page 19 D O N OT P R E S S T H E R E D R E S E T B U T TO N U N L E S S P O W E R I S S W I T C H E D O F F AT T H E P O W E R P O I N T. Instruction manual WDU060, WDU080 & WDU125 19 Please keep this instruction manual for future reference...
-
Page 20: Air Switch Assembly Instructions
3. Actuator Outlet (Black Threaded portion) WDU125 4. Air Tube-Clear or black 5. Sensor Inlet nozzle to connect air tube Only the Actuator Image Representational he drilled Outlet (3) Instruction manual WDU060, WDU080 & WDU125 Please keep this instruction manual for future reference... - Page 21 N OT E : The disposer will turn on at this time. Then, remove the tube and button. The disposer can now be controlled with the wall switch. Instruction manual WDU060, WDU080 & WDU125 21 Please keep this instruction manual for future reference...
-
Page 22: Caple Contact Details
Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
