Summary of Contents for Caple WDU050

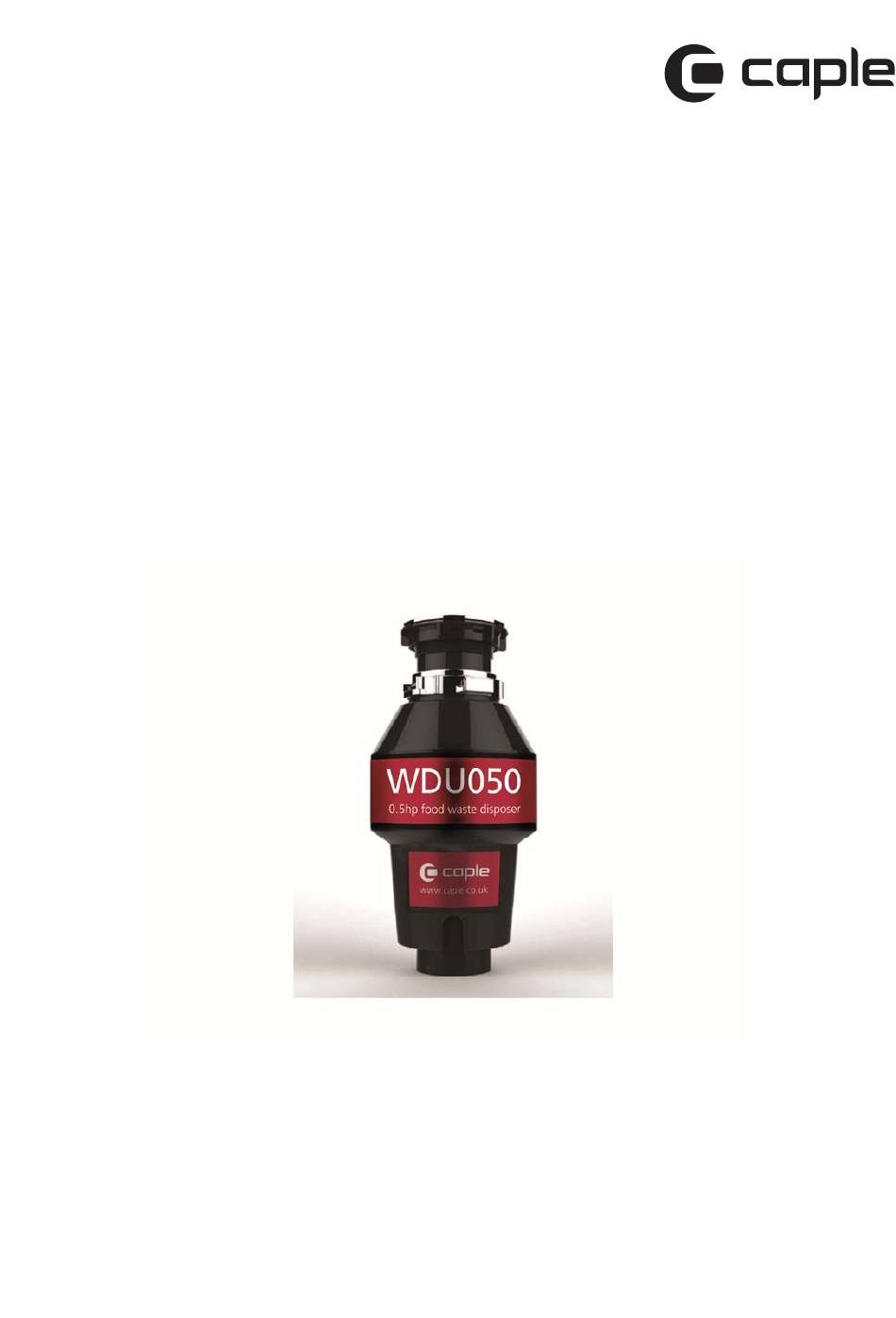

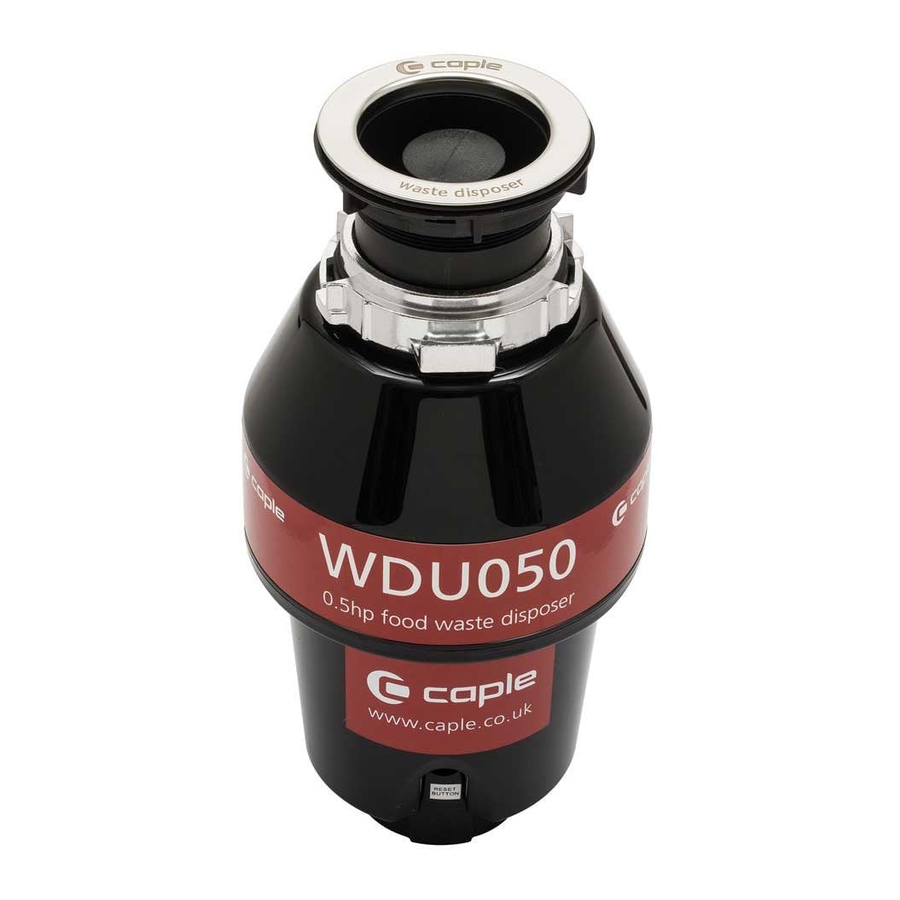

- Page 1 Instruction manual for food waste disposer Model code: WDU050, WDU075 WDU100 Contact Caple on 0117 938 1900 or service@caple.co.uk...
-
Page 2: Table Of Contents
Troubleshooting Service information Thank you for choosing Caple. Please follow the information detailed in this instruction manual carefully, and the appliance should provide many years of service. Please write the model number and serial number for your food waste disposer below, you... -
Page 3: Safety Information
- If the supply cord becomes damaged, it must be replaced wooden object such as a wooden spoon. by a Caple engineer or a similary qualified person in order to - When attempting to remove objects from a waste avoid a hazard. - Page 4 IMPORTANT SAFETY INSTRUCTIONS. READ ALL INSTRUCTIONS BEFORE USING. WARNING! Electrical connection (cont.) If yo u are no t familiar with electrical po wer and procedu res, call a qualifie d electri cian . The power c ord and/or connections m ust Follow the lead con nected to this b lade marked with comply with l ocal codes and o rdinances.
- Page 5 (not supplied) as shown if you prefer, we also have a air switch available (product code below. WDUAIR). This is available directly from Caple or the retailer you purchased our appliance. This can be installed in the worksurface or sink (see below).
-
Page 6: Installation Instructions
Installation Instructions Food waste disposer Before you begin What you will need Re ad th ese in structions compl etely and carefully IMPORTA NT - Keep th ese in structions Phil lips and flat blade sc rewdrivers IMPORTANT - O bserv e all governing cod es an d ordinances . - Page 7 Installation Instructions Components and installation Components NOTE: Pay close attent ion to the order of the sink flange parts, as they have been correct ly assembled by the factory. A . Disassemble the sink flange assembly from the Stopper disposer by turning the mount ring to the left (clockwise) and removing it .
- Page 8 Installation Instructions Dishwasher connection (if required) If you are connecting a dishwasher to you waste disposal unit, please complete the following steps. If you are not connecting a dishwasher proceed to step 3 Attaching the discharge elbow. 2 Connect the hose Knock out the plug Connect the dishwasher hose using a hose clamp.
- Page 9 Installation Instructions Connecting the disposer to the sink flange 1 A ttach to the sink flange 3 Lock the mount ring Line up the disposer Turn the mount ring to the right until it locks up tight Mount under the sink flange. Hopper projections must be to the extreme left of ring slot Guide the hopper...
-
Page 10: Dimensions
Dimensions A : Disposer height Dimensions B : Disposer from bottom of sink bowl to Model centerline of discharge outlet C: Distance from centerline of the discharge WDU050 365mm 176mm 70mm 197mm 137mm outlet to end of discharge tube D : Disposer width... -
Page 11: Operating Instructions
Operating Instructions This disposer uses anti-jam swivel impellers that make a clicking sound as they swing into place. This indicates normal operation, and is not a fault. Operating instructions . Remove the sink stopper and turn on a medium flow of cold water. Turn on the waste disposer (by the wall switch or air switch). -
Page 12: Troubleshooting
Troubleshooting tips Before calling Caple Service Review the below chart before contacting Caple Service as you may find a simple solution, saving you both time and money. SAFETY NOTE: Before investigating any possible issues you MUST disconnect the power supply. -
Page 13: Service Information
Guarantee Caple undertake that if within the guarantee period stated on the guarantee card this appliance or any part thereof that is proved to be defective by reason only of faulty workmanship or materials, we will at our option repair or replace the same free of any charge for... - Page 14 Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk...
