User Guide

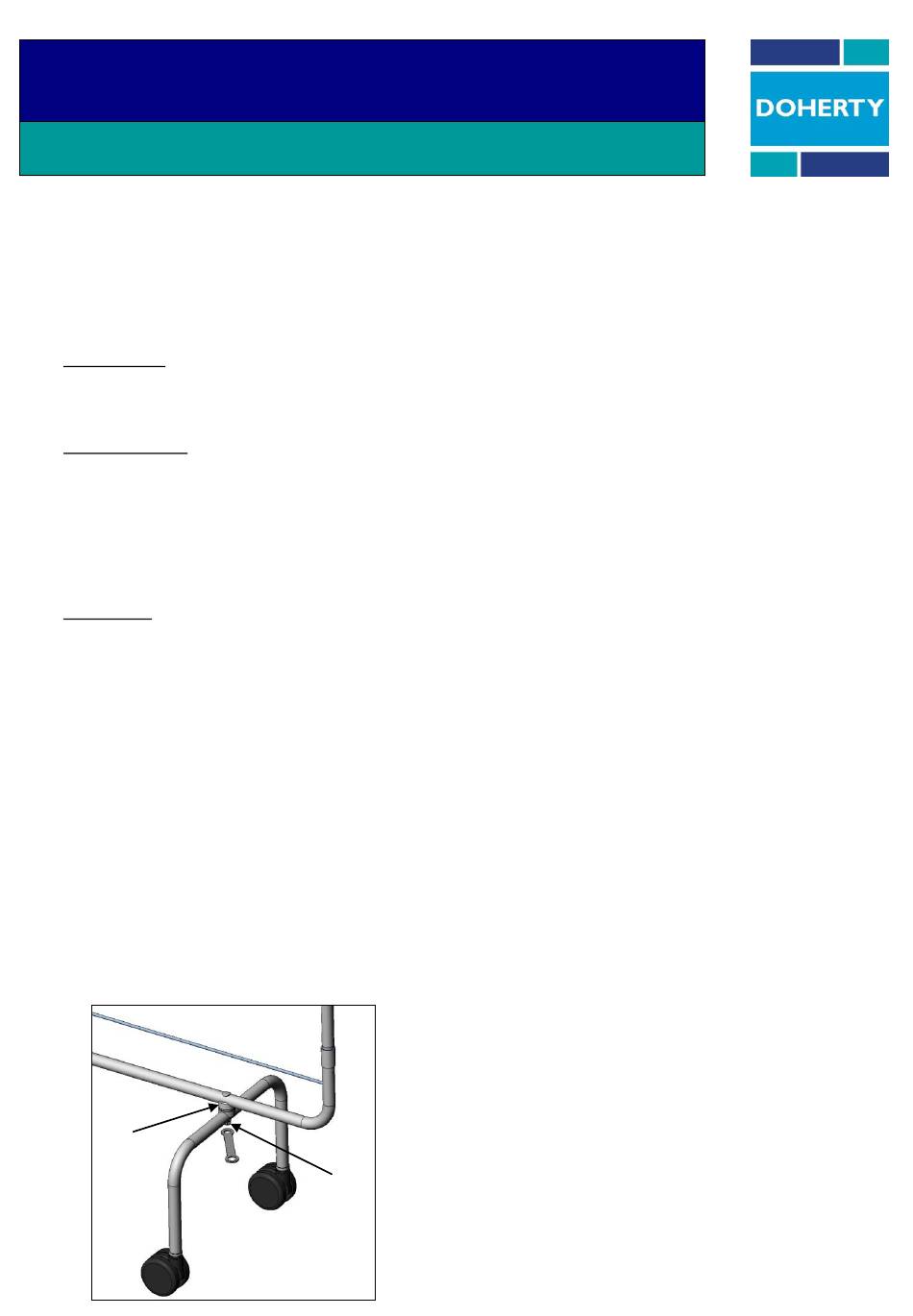

SCR01 & SCR03 Screen Assembly Instruction

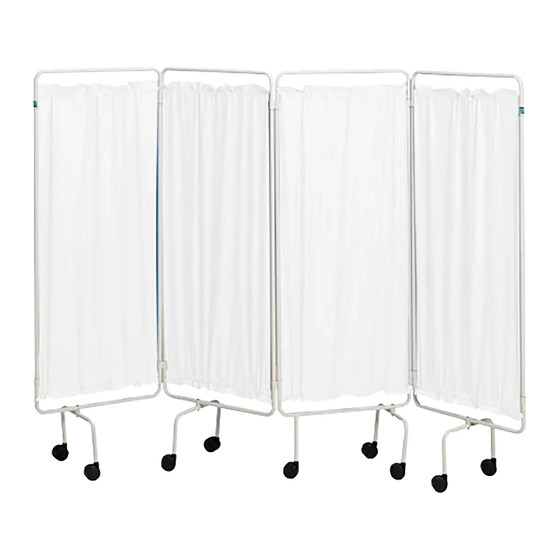

Thank you for purchasing a Sidhil Doherty Screen. Before installing your new screen
please read these instructions carefully and ensure you fully understand them.
Please note, screen curtains or panels must be purchased separately, please contact your
supplier for further information.

Kit of parts:

 x1 Screen

Specifications:

 Folded Width:
 Fully Open Width:
 Height:
 Net Weight:

Assembly:

The screen is supplied in a flat form and will require a simple assembly procedure to be
carried out before it can be used.
Situated at the base of the screen are 4 stabilising legs that need to be rotated around so
that the screen can stand correctly.
1. Unpack the screen, lay it on the floor and open out flat.
2. Using the supplied spanner loosen nut (item A) to allow saddle clamps (item B) to
separate cleanly. Note, saddle clamps interlock at 90 degree intervals only.
3. Rotate leg around through 90 degrees.
4. Pressing the bolt downwards towards the tube, re-tighten the nut. Tightening fully
may require the use of a 10mm socket and ratchet. Once tight ensure both saddle
clamps are seated correctly.
5. Repeat the above procedure for each stabilising leg.
6. Please dispose of the packaging in a sensible & environmental fashion.
B
 x1 Spanner
635mm
(25")
2455mm
(96.6")
1718mm
(5' 6")
13 kg
(28.7lb)
A
