- Page 1 Doherty Panel Screen Instructions for use...
- Page 3 Welcome to Sidhil Still making it better... Excellence in customer At Sidhil, everything we do is designed around quality. service is our key objective. From our modern and efficient Alongside our focus on manufacturing plant in Halifax, innovation, research and West Yorkshire, we manufacture product development, we a range of products for the...
- Page 4 INTRODUCTION................5 SPECIFICATION...............6 ASSEMBLY & PREPARING FOR USE..........7 CLEANING..................10 GENERAL MAINTENANCE.............10 WARRANTY..................11...

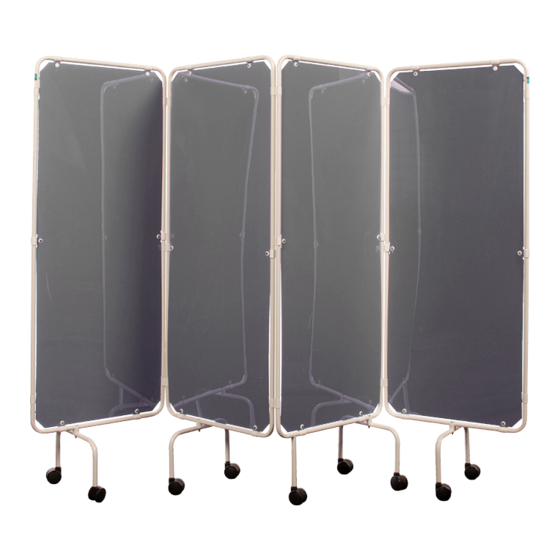

- Page 5 1. INTRODUCTION Thank you for purchasing a Doherty Panel Screen System. The screen system is designed to provide a modern alternative to the traditional plastic and polyester screen curtains. Your screen system is part of a matching range of furniture, including fixed height couches and a range of trolleys.
-
Page 6: Specification
2. SPECIFICATION Height 1720mm (67.7”) Unfolded Length 2450mm (96.5”) Folded Length 615mm (24.2”) Unfolded Width 355mm (14.0”) Folded Width 440mm (17.3”) Screen System Contents Screen Panels Mount Clips White Finishing Washers Blue Countersunk Screws Grey Cover Caps Purple Allen Keys Black All screen panels come in a range of 5 attractive colours. - Page 7 3. ASSEMBLY & PREPARING FOR USE These instructions relate to assembling a screen system onto a frame. The screen can be assembled stood up, but it is advisable to assemble it on the floor where possible. If the screen is to be assembled standing up, perform step eleven first. 1.
- Page 8 5. The panels must be fastened to the screen in a set order and orientation. Position the first panel over the frame with the fixed castor leg and pivoting leg, as shown in figure 3. Ensure the clips are to the inside of both legs as shown below. If the panel slots do not line up with the clips to the bottom, you probably have the panel upside down, rotate the panel through 180°...
- Page 9 9. Repeat stages 5-8 for the remaining panels, noting the panel order to assemble in figure 3. There are 2 types of clip arrangement, this is necessary as each panel must be rotated 180° to its neighbour, as shown below. Turn the panels round so that panels 1 and 4 have distance ‘A’...
-
Page 10: General Maintenance
5. GENERAL MAINTENANCE The Doherty panel screen system and frame require very little maintenance, however if there are any signs of damage, or the screen is not performing as it should, please contact your supplier for assistance. For Service & Support outside of the UK &... -
Page 11: Warranty
6. WARRANTY Sidhil Ltd guarantees this product is free from defects in material and workmanship under normal use for 1 year (1 year full parts and labour) from the date of purchase from Sidhil Ltd, its subsidiary companies, authorised dealers and international distributors. Proof of purchase must be presented with any claim. - Page 12 CONTACT INFORMATION Tel: +44 (0) 01422 233000 Fax: +44 (0) 01422 233010 Email: sales@sidhil.com www.sidhil.com Sidhil Business Park, Holmfield, Halifax, HX2 9TN A member of the Siddall & Hilton Ltd. Group of Companies (93/42/EEC) Certificate No. FM14550 INSTRUC/SCRPK 19/11/2015 - rev.4...
