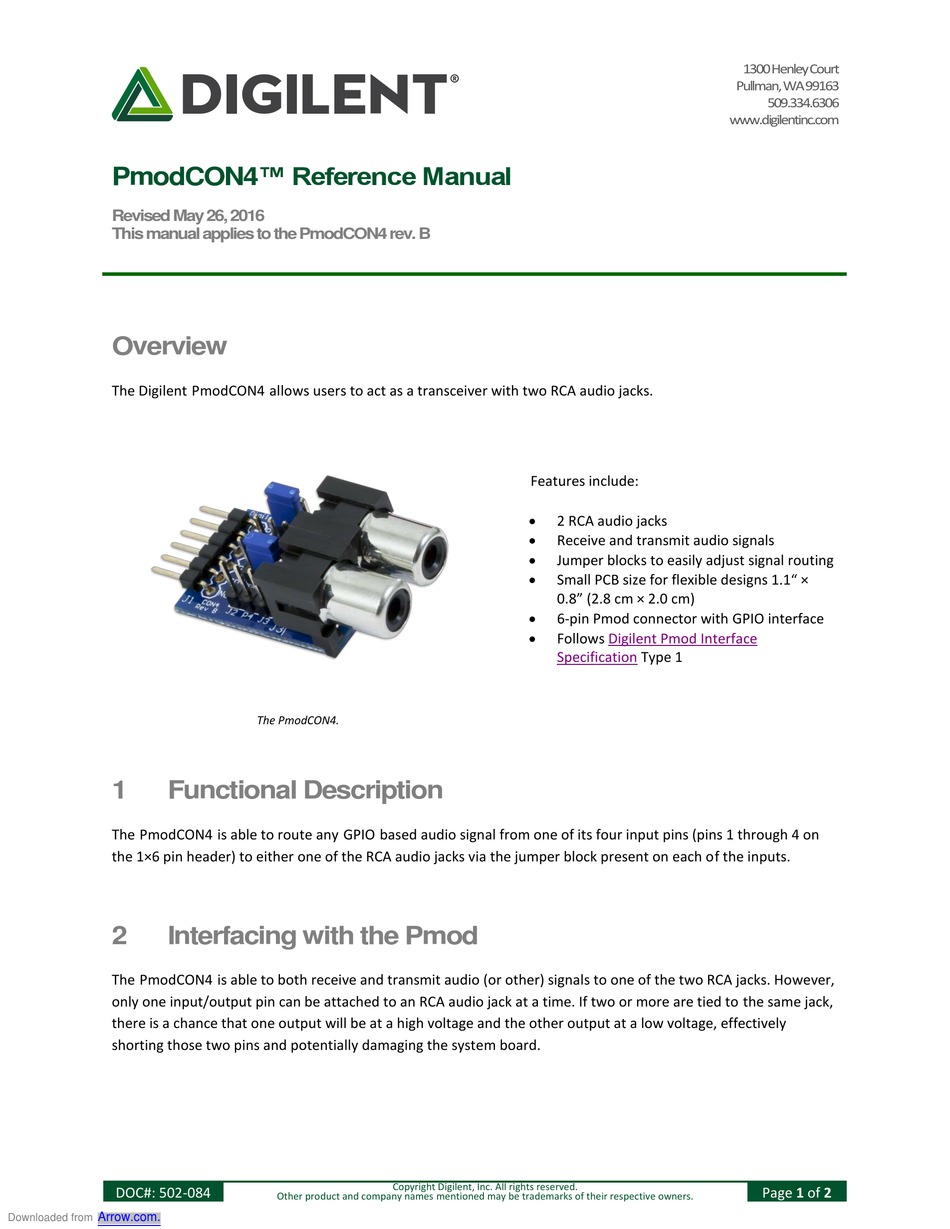

Digilent PmodCON4 Reference Manual

PmodCON4™ Reference Manual
Revised May 26, 2016
This manual applies to the PmodCON4 rev. B
Overview
The Digilent PmodCON4 allows users to act as a transceiver with two RCA audio jacks.
1 Functional Description
The PmodCON4 is able to route any GPIO based audio signal from one of its four input pins (pins 1 through 4 on
the 1×6 pin header) to either one of the RCA audio jacks via the jumper block present on each of the inputs.
2 Interfacing with the Pmod
The PmodCON4 is able to both receive and transmit audio (or other) signals to one of the two RCA jacks. However,
only one input/output pin can be attached to an RCA audio jack at a time. If two or more are tied to the same jack,
there is a chance that one output will be at a high voltage and the other output at a low voltage, effectively
shorting those two pins and potentially damaging the system board.
DOC#: 502-084
Arrow.com.
Downloaded from
The PmodCON4.
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Features include:

2 RCA audio jacks

Receive and transmit audio signals

Jumper blocks to easily adjust signal routing

Small PCB size for flexible designs 1.1" ×
0.8" (2.8 cm × 2.0 cm)

6-pin Pmod connector with GPIO interface

Follows Digilent Pmod Interface
Specification Type 1
1300 Henley Court
Pullman, WA 99163
509.334.6306
www.digilentinc.com
Page 1 of 2
