Saluki MO1072 Series Manual

Modular oscilloscope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

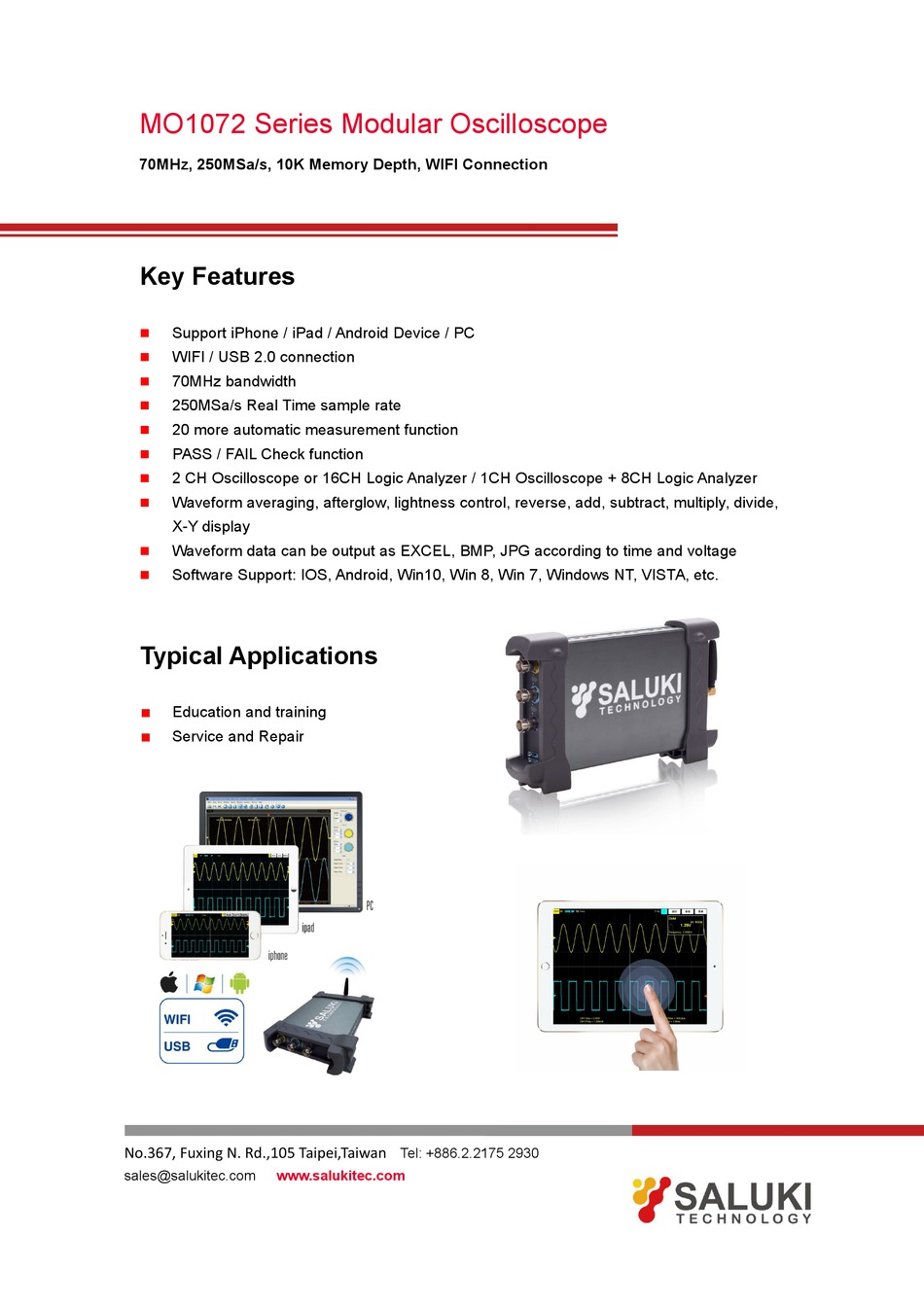

MO1072 Series Modular Oscilloscope
70MHz, 250MSa/s, 10K Memory Depth, WIFI Connection
Key Features
Support iPhone / iPad / Android Device / PC
WIFI / USB 2.0 connection
70MHz bandwidth
250MSa/s Real Time sample rate
20 more automatic measurement function
PASS / FAIL Check function
2 CH Oscilloscope or 16CH Logic Analyzer / 1CH Oscilloscope + 8CH Logic Analyzer
Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide,
X-Y display
Waveform data can be output as EXCEL, BMP, JPG according to time and voltage
Software Support: IOS, Android, Win10, Win 8, Win 7, Windows NT, VISTA, etc.
Typical Applications
Education and training
Service and Repair
No.367, Fuxing N. Rd.,105 Taipei,Taiwan
sales@salukitec.com
www.salukitec.com
Tel: +886.2.2175 2930

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MO1072 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Saluki MO1072 Series

Summary of Contents for Saluki MO1072 Series

  • Page 1 MO1072 Series Modular Oscilloscope 70MHz, 250MSa/s, 10K Memory Depth, WIFI Connection Key Features Support iPhone / iPad / Android Device / PC  WIFI / USB 2.0 connection  70MHz bandwidth  250MSa/s Real Time sample rate  20 more automatic measurement function ...
  • Page 2 MO1072 Series Modular Oscilloscope 70MHz, 250MSa/s, 10K Memory Depth, WIFI Connection Saluki MO1072 Series Modular Oscilloscope is designed based on the platform of IOS, Android and Windows system. With a simple App, you can easily used it in your iPhone, iPad, Android device or PC, then get a Multi-touch operation.
  • Page 3 MO1072 Series Modular Oscilloscope 70MHz, 250MSa/s, 10K Memory Depth, WIFI Connection Vertical Vertical Resolution 8Bit 10mV - 5V/div @ x1 probe 100mV - 50V/div @ x10 probe; Vertical Displacement Range 1V - 500V/div @ x100 probe 10V - 5KV/div @ x1000 probe Position Range ±4division...
  • Page 4 MO1072 Series Modular Oscilloscope 70MHz, 250MSa/s, 10K Memory Depth, WIFI Connection General Information Temperature Operating: 0℃ - 40℃; Non-operating: -20℃ - 60℃ Humidity Below 35℃, ≤90% relative humidity; 35℃-40℃, ≤60% relative humidity Volume 190mm x 100mm x 35mm Weight 0.7KG (net weight) Standard Package 230x175x75cm.
  • Page 5 MO1072 Modular WIFI Oscilloscope User Manual Saluki Technology Inc.
  • Page 6 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com The document applies to the modular WIFI oscilloscopes of the following models:  MO1072 Modular WIFI Oscilloscope  MO1072L Modular WIFI Oscilloscope MO1072 Modular WIFI Oscilloscope standard accessories:  Main Machine  Probe x2 ...
  • Page 7 Saluki. Saluki Tech owns the copyright of this document which should not be modified or tampered by any organization or individual, or reproduced or transmitted for the purpose of making profit without its prior permission, otherwise Saluki will reserve the right to investigate and affix legal liability of infringement.
  • Page 8 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Contacts Service Tel: 886.2.2175 2930 Website: www.salukitec.com Email: info@salukitec.com Address: No. 367 Fuxing N Road, Taipei 105，Taiwan (R.O.C.)

  • Page 9: Table Of Contents

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Content General Safety Summary ..............................7 Brief Introduction ................................9 Minimum system requirements ..........................9 Quick Start ..................................10 Connections and Indications ............................ 11 Set Connection Mode .............................. 12 Charging the battery ..............................13 General Check .................................
  • Page 10 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 4.14 Acquisition Modes ..............................49 4.15 Interpolation ................................49 4.16 Utility Function ................................. 50 4.16.1 Record ................................. 51 4.16.2 Pass/Fail ................................51 4.16.3 Self Calibration ..............................53 4.16.4 Factory Setup ..............................53 4.16.5 Language ................................53 4.17 Print And Print Preview ............................

  • Page 11: General Safety Summary

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 1 General Safety Summary Review the following safety precautions carefully before operate the device to avoid any personal injuries or damages to the device and any products connected to it. To avoid potential hazards, use the device as specified by this user’s guide only.
  • Page 12 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Caution: “Caution” identifies conditions and actions that may damage the product or other properties. Refer to DANGER: Protective Condutor Chassis grand Earth(grand) Terminal the manual High Voltage Terminal System Terms The following terms may appear on the instrument: Danger: The term “Danger”...

  • Page 13: Brief Introduction

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 2 Brief Introduction MO1072 is WLAN dual-channel digital storage oscilloscope geared towards tablet computers, it's a small, lightweight, portable, battery powered, fully featured two channel oscilloscope. The oscilloscope is ideal for production test, research and design and all of the applications involving analog circuits test and troubleshooting, as well as education and training.

  • Page 14: Quick Start

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 3 Quick Start In addition to the list of general features on the next page, this chapter describes how to do the following tasks: Connections and Indications  Set Connection Mode  Charging the battery ...

  • Page 15: Connections And Indications

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 3.1 Connections and Indications 1) CH 1: Input connectors for waveform display. 2) CH 2: Input connectors for waveform display. 3) EXT.: Input connector for an external trigger source. Use the Trigger menu to select the Ext. source. 4) CAL.: Probe compensation output.

  • Page 16: Set Connection Mode

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com : USB/WI-FI indication ② : Hotspot, creates it's own wireless local area network (WLAN). Yellow light is always flashing. : When the device is connected with PC and communicates with PC successfully via USB cable, the light blinks in green for long.

  • Page 17: Charging The Battery

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 2) In USB mode, if the driver is installed successfully on a PC, the software can communicate with the device automatically, so the device won’t power off when connect it with the PC. If the driver isn’t installed successfully on a PC, there is no communication, so the device will power off more than ten minutes.

  • Page 18: Function Check

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Correctly Compensated Over compensated Under Compensated 4) If necessary, use a non-metallic tool to adjust the trimmer capacitor of the probe for the fattest square wave being displayed on the oscilloscope. 5) Repeat if necessary. WARNNING: To avoid electric shock while using the probe, be sure the perfection of the insulated cable, and do not touch the metallic portions of the probe head while it is connected with a voltage source.

  • Page 19: Self Calibration

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com  Connect the oscilloscope with PC, iOS or Android 1) Connect with PC via USB cable or Wi-Fi. Please refer to Connect with 2) Connect with IOS via Wi-Fi. Please refer to Connect WITH APPLE.

  • Page 20: Pc Application

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 4 PC Application Install Software  Install Driver  Set Connection Mode with PC  The User’s Interface  The Menu System  Set Oscilloscope  Set Horizontal System  Set Vertical System  Set Trigger System ...

  • Page 21: Install Software

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 4.1 Install Software Caution: You must install the software before using the oscilloscope on Windows PC. 1) While in Windows, insert the installation CD into the CD-ROM drive. 2) The installation should start up automatically. Otherwise open Windows Explorer, and switch to the CD-ROM driver and run Setup.exe.
  • Page 22 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 4) Choose a destination directory. Click ‘Next’ to continue. 5) Check the setup information. Click Next to start copying of files.
  • Page 23 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 6) This Status dialog is displayed during copying of files. 7) Updating your system configuration.

  • Page 24: Install Driver

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 9) The installation is complete. 4.2 Install Driver Caution: You must install the driver before connect the device with Windows PC via USB cable. Not need to install driver if you connect with PC via Wi-Fi. 1.
  • Page 25 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 3. New hardware is found. 4. New hardware search wizard starts.
  • Page 26 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 5. New hardware search wizard starts to search the drive. 6. New hardware wizard installs software...
  • Page 27 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 7. Finish new hardware search wizard. 8. New hardware is found. 9. New hardware wizard installs software and finish new hardware search wizard.
  • Page 28 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 10. Your new hardware is installed and ready to use. Note: Simply plug this cable’s USB-B end into the device, and plug the two USB-A ends into open ports on one PC. This cable then pulls power from both USB port, and thus increases the output to the external driver. The red molded hood on the auxiliary USB-A connector enables the user to quickly distinguish between main and auxiliary power.
  • Page 29 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 2) Right click “MO1072”, select “Update driver software”. According to the installation wizard to install. 3) The driver has been successfully installed.

  • Page 30: Set Connection Mode With Pc

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Now your device is ready to use. 4.3 Set Connection Mode with PC Communicate with PC via USB cable 1) Connect the A-Type Plug of USB cable to your PC’s USB port. Connect the B-Type Plug of USB cable to the device USB port.

  • Page 31: The User's Interface

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 4) Double click shortcut icon on desktop to open software. And click in toolbar to connect via Wi-Fi. 5) If the device is connected with PC successfully, the status information will display “Connected” on bottom status bar.
  • Page 32 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 1) The Main Menu All setting can be found in the main menu. 2) The Toolbar 3) The Horizontal Panel The user can change Time/Div, format in the panel. 4) The vertical Panel The user can turn on/off the CH1/CH2.Also the user can change the CH1/CH2 volt/div, coupling and probe attenuation.

  • Page 33: The Menu System

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Readout shows the coupling of the channels. Readout shows the vertical scale factors of the channels. A “B” icon indicates that the channel is bandwidth. 12) Status Information. Demo: Don’t communicate with PC. Disconnected: The device is not connected with PC successfully. Connected: The device is connected with PC successfully.

  • Page 34: Setup The Oscilloscope

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 4.6 Setup the Oscilloscope  Use “AUTOSET” to display a signal automatically. Auto setup functions one time each time you click the “AUTO” button. The function obtains a stable waveform display for you. It automatically adjusts the vertical scale, horizontal scale and trigger settings. Auto setup also displays several automatic measurements in the graticule area, depending on the signal type.

  • Page 35: Application Of The X-Y Operation

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com  Horizontal Setting 1) Time/DIV: lead the setting of the time base parameters Select the time setting for the beam to sweep one major division on the screen. By selecting different time/div settings it is possible to zoom in on the frozen waveform on the screen. 2) Format: lead the setting of the horizontal format parameters.
  • Page 36 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 6) Adjust the scale and offset of the horizontal and vertical to a desirable waveform display. The following picture shows a typical example. 7) Apply the Ellipse Method to observe the phase difference between the two channels. Signal in X-Y Format: Instruction of the Ellipse Method: Sinθ...

  • Page 37: Set Vertical System

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 4.8 Set Vertical System Click “Vertical” in “Setup” menu. The following figure shows the Vertical System window. It shows the vertical parameters settings. Channel Choose: User can select the channel by clicking the Combo box. ON/OFF: Turn on/off the channel Volt/div: Select the channel voltage/div Couple: Select the channel coupling...

  • Page 38: Set Trigger System

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Select the attenuation factor for the probe. To check the probe attenuation setting, toggle the probe menu to match the attenuation factor of the probe. This setting remains in effect before you changed again. Click “Probe” in “Vertical Setting” window to select the probe attenuation.
  • Page 39 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com  Trigger Setting The trigger determines when the oscilloscope starts to acquire data and display a waveform. When a trigger is set up properly, it can convert unstable displays or blank screens into meaningful waveforms. If the oscilloscope wants to acquire a waveform, it collects enough data so that it can draw the waveform to the left of the trigger point.

  • Page 40: Capturing A Single-Shot Signal

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com  Change Trigger Level Trigger Level icon: User can also drag the trigger icon on screen to adjust the trigger level. Double click trigger icon to set trigger level to the vertical midpoint between the peaks of the trigger signal. 4.9.2 Capturing a Single-Shot Signal To capture a single event, it needs to gather some pre-test knowledge of the signal in order to set up the trigger level...
  • Page 41 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com ON/OFF: Turn On/Off the MATH Channel. Source A/B: Set the sources of the math channel. Volt/DIV : Set the resolution of the math channel. Operate: Set operates type of the math channel. The mathematic functions include addition, subtraction, multiplication, division. Operate Four Types: A + B...

  • Page 42: Fast Fourier Transform Function

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 4.10.2 Fast Fourier Transform Function User can use the FFT mode to convert a time-domain signal into its frequency components (spectrum). You can use the FFT mode for the following types of analysis: To use the FFT mode, you need to click “Setup-> FFT” to open the FFT setting window. The FFT setting window: You can select the Source channel, Window algorithm, FFT number, and FFT Zoom factor.

  • Page 43: Save And Load

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Scale: Selects the vertical scale units Vertical: Selects the vertical scale Horizontal: Selects the FFT zoom factor Sets horizontal scale, If the information is more than the quantity displayed to the display window, more information is displayed by using scroll bar.
  • Page 44 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com There are two Ref channels, Ref1 and Ref2. The Reference Channel Function: On/Off: Turn on/off the reference channel. Load Click “Load” to load the “*.rfc” file that was selected. The load file window will appear. Save Click “Save”...

  • Page 45: Save/Load Setup

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Note: If you turn on the “Reference” channel, the load file window will appear. 4.11.3 Save/Load Setup Save Setup You can use the “File-> Save Setups” in main menu to permanently save setting. Load Setup You can use the “File->...
  • Page 46 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Dots Vectors  Display Grid Click “Display->Grid” in main menu. The grid shows: Grid  Intensity Click “Display->Intensity” in main menu. The following figure shows the intensity dialog. It shows the display parameters setting. You can change the grid and waveform color intensity in this dialog.

  • Page 47: Measure System

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Click “Display->Wave Color” in main menu. The following figure shows the waveform color dialog. It shows the waveform color setting. If you click the color rectangle, the color dialog will be showed: 4.13 Measure System The oscilloscope displays graphs of voltage versus time and can help to measure the displayed waveform.

  • Page 48: Cursor Measure

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 4.13.2 Cursor Measure Click “Cursor” in main menu. This method allows you to take measurements by moving the cursors. Source The user can set the source to CH1, CH2 and MATH. When you use cursors, be sure to set the Source to the waveform on the display that you want to measure. Type There are four types of cursors: Cross, Trace, Vertical and Horizontal.
  • Page 49 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Do these steps: 1. Click “Cursor->Source”, select CH1 (select CH2 if you want trace CH2). 2. Click “Cursor->Type”, select Trace. 3. Click the cursor at the position that you want traced of the wave in the waveform window. The Trace cursor display window: The Trace cursor measure result display on status bar: Vertical...
  • Page 50 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com The Vertical cursor measure result display on status bar: 6) Horizontal The Horizontal cursors appear as horizontal lines on the display and measure the horizontal parameters. Do these steps: 1. Click “Cursor”-> “Source” select CH1 (select CH2 if you want measure CH2). 2.

  • Page 51: Automatic Measurement

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com The Horizontal cursor measure result display on status bar: 4.13.3 Automatic Measurement Automatic Measurement: The oscilloscope performs all the calculations automatically in this mode. As this measurement uses the waveform record points, it is more precise than the graticule and cursor measurements. Automatic measurements show the measurement results by readouts which are periodically updated with the new data acquired by the oscilloscope.
  • Page 52 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com  Cycle Mean: The arithmetic mean over the first cycle in the waveform  Positive OverShoot: Positive Overshoot = (Max - Top)/Amp x 100 %, Measured over the entire waveform  Negative OverShoot: Negative Overshoot = (Base - Min)/Amp x 100 %, Measured over the entire waveform. 3) Horizontal ...

  • Page 53: Acquisition Modes

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com DVM: Display RMS and frequency of measured waveform of CH1 or CH2. 4.14 Acquisition Modes There are two acquisition modes: Normal, Average. Normal: In this acquisition mode, the oscilloscope samples the signal in evenly spaced intervals to construct the waveform.

  • Page 54: Utility Function

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com The Sin(x)/x Interpolation: Note: The default interpolation mode is Sin(x)/x. Acquisition When you acquire a signal, the oscilloscope converts it into a digital form and displays a waveform. The acquisition mode defines how the signal is digitized and the time base setting affects the time span and level of detail in the acquisition.

  • Page 55: Record

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com The “Utility” Functions:  Record  Pass/Fail  Calibrate  Factory Setup  Language 4.16.1 Record Before you select the save path every time, you need to manually create a new folder, and then select. Storage “Start”...
  • Page 56 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com The Pass/Fail function monitors changes of signals and outputs pass or fail signals by comparing the input signal with the pre-created mask. Control Setting ON/OFF: Turn on/off the Pass/Fail Source: Select the Pass/Fail channel Output: Select the Pass/Fail output condition Stop When Output: If it was checked, the Pass/Fail will stop when output.

  • Page 57: Self Calibration

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com NOTE：Pass/Fall function is unavailable in X-Y mode and Roll mode. 4.16.3 Self Calibration Please refer to Self calibration. 4.16.4 Factory Setup Click “Factory Setup” in “Utility” menu to load default setups. When you click the Factory Setup in Utility menu, the oscilloscope displays the CH1 and CH2 waveforms and removes all other waveforms.

  • Page 58: Print And Print Preview

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Note: The language of App depends on System language of iOS. 4.17 Print And Print Preview Click “Print” in “File” menu to set the printer to print the current waveform. 1) Click “print” in “File” menu or Ctrl+P”...

  • Page 59: Ios Application

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 5 IOS Application User Interface  Menu System  Connect with Apple/Andriod  Set Horizontal System  Set Vertical System  Set Trigger System  Save and Load  Display System  Measure Signal ...

  • Page 60: User Interface

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 5.1 User Interface The user’s interface: 1) Channel information and Volt/Div : CH1 is selected. : CH2 is selected. If the channel is select, you can see yellow background of CH1 or blue background of CH2. 2) Time/DIV: lead the setting of the time base parameters Select the time setting for the beam to sweep one major division on the screen.

  • Page 61: Menu System

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Menu: Main menu. 6) Trigger Level Tap the trigger level icon and move up or move down, the trigger level value will display on the screen. 7) Horizontal Trigger position Tap the horizontal trigger position icon and move left or move right, the horizontal trigger position will display on the screen.

  • Page 62: Connect With Apple

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Channel: CH1, CH2, Math and Reference setting Trigger: Set trigger system Cursor: Set cursor measure type Measure: Set measurement parameters Display: Change wave display type and color. Acquire: Start, Stop, Autoset and other operation setting Utility: Utility setting File: Save and load waveform data and After enter submenu, please tap “<MENU”...

  • Page 63: Set Horizontal System

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 4) Connect the device to a signal source. 5) Tap the app to open it. Then click “RUN” button. The scope is ready to use. If you can’t connect it successfully, please do as the followings: a) Close the APP.

  • Page 64: The Application Of The X-Y Operation

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 5.4.2 The Application of the X-Y Operation Select X-Y format in Utility menu. More information, please refer to The Application of the X-Y Operation. 5.5 Set Vertical System Click “Channel” in main menu. Select Channel: User can select the channel CH1, CH2, Math and Reference. Channel Setting: ON/OFF: Tap CH1 or CH2 icon on the top left corner of the screen.

  • Page 65: Set Trigger System

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com The following picture shows the waveform of inversion: Reset Double click the icon to reset the waveforms to the vertical center position on the screen. Move the waveform Drag Vertical Position icon to move waveform up and down on the screen. 5.6 Set Trigger System Click “Setup->...

  • Page 66: Save And Load

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Trigger Setting: Please refer to set trigger system. 50%: The trigger level is set to the vertical midpoint between the peaks of the trigger signal. Trigger Level Trigger Level icon: User can also drag the trigger icon on screen to adjust the trigger level.
  • Page 67 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com The Reference Channel Function: On/Off: Slid the slider to enable the function. Volt/DIV: Channel the resolution of the reference channel. Reset: Double click the icon to reset the waveforms to the vertical center position on the screen. Load: Load the reference waveform from the “.rfc”...

  • Page 68: Save/Load Setup

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 5.7.3 Save/Load Setup Save Setup The oscilloscope software saves the current setup before you close the oscilloscope software. The oscilloscope recalls this setup when you run the software next time. You can use the “File->Setups->Save Setups” in main menu to permanently save setting.

  • Page 69: Measure

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com The Trace cursor display window: 5.9.2 Measure Click “Measure” in main menu. DVM: Display RMS and frequency of measured waveform of CH1 or CH2. Slid the slider to enable the DVM function. You can see it on top right corner on the screen. Also you can tap the DVM column and drag it to any location.

  • Page 70: Acquire

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com More information, please refer to Measure. 5.10 Acquire 5.10.1 Capture Mode There are three capture modes Normal, Roll and Scan mode. Please refer to Set Horizontal System Y-T Format. 5.10.2 Interpolation Please refer to Interpolation.

  • Page 71: Android Application

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 6 Android Application User Interface  Menu System  Connect with Andriod  Set Vertical System  Set Trigger System  Measure Signal ...

  • Page 72: User Interface

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 6.1 User Interface The user’s interface: Channel information and Volt/Div Time/DIV: lead the setting of the time base parameters Select the time setting for the beam to sweep one major division on the screen.. Trigger State A signal is triggerred.

  • Page 73: Menu System

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com The marker shows the reference points of the displayed waveforms of CH1. CH1 Zero level The marker shows the reference points of the displayed waveforms of CH2. GESTURES FOR TABLET Time/Div Volt/Div Increase Decrease Decrease Increase 10.

  • Page 74: Connect With Android In Direct Mode

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 6.3 Connect with Android in direct mode When in the direct mode, Android device is connect with the device via Wi-Fi hotspot which created by device. The device works in this mode in default. 1.

  • Page 75: Measure Signal

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Trigger Setting: Please refer to set trigger system. Trigger Level Trigger Level icon: User can also drag the trigger icon on screen to adjust the trigger level. 6.6 Measure Signal Click “Measure” in main menu. More information, please refer to Measure.

  • Page 76: Specifications

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 7 Specifications Specifications Table: Acquisition Channels Bandwidth 70 MHz analog bandwidth Sample rate 250MSa/s(Single channel), 125MSa/s(Dual channel) Mode Normal, Peak Detect, Average(PC Software) Input Input Coupling AC, DC,GND Input Impedance 1MΩ, 25pF Probe Attenuation Factors 1X, 10X, 100X, 1000X Max.
  • Page 77 Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com Position Range ±4 division BandWidth 20MHz Lower Frequency Response(- ≤10Hz(at input BNC) 3dB) Rise Time at BNC ≤5ns DC accuracy ±3% Math Addition, Subtraction, Multiplication, Division Rectangular, Hanning, Hamming, Blackman Window Trigger Trigger Type Edge trigger Trigger Mode Auto, Normal and Single...

  • Page 78: General Maintenance

    Tel: 886.2.2175 2930 Email: sales@salukitec.com www.salukitec.com 8 General Maintenance General Care Do not store or leave the oscilloscope where the device will be exposed to direct sunlight for long periods of time. Caution To avoid damages to the device or probes, do not expose them to sprays, liquids or solvents. To avoid damages to the surface of the device or probes not use any abrasive or chemical cleaning agents.
