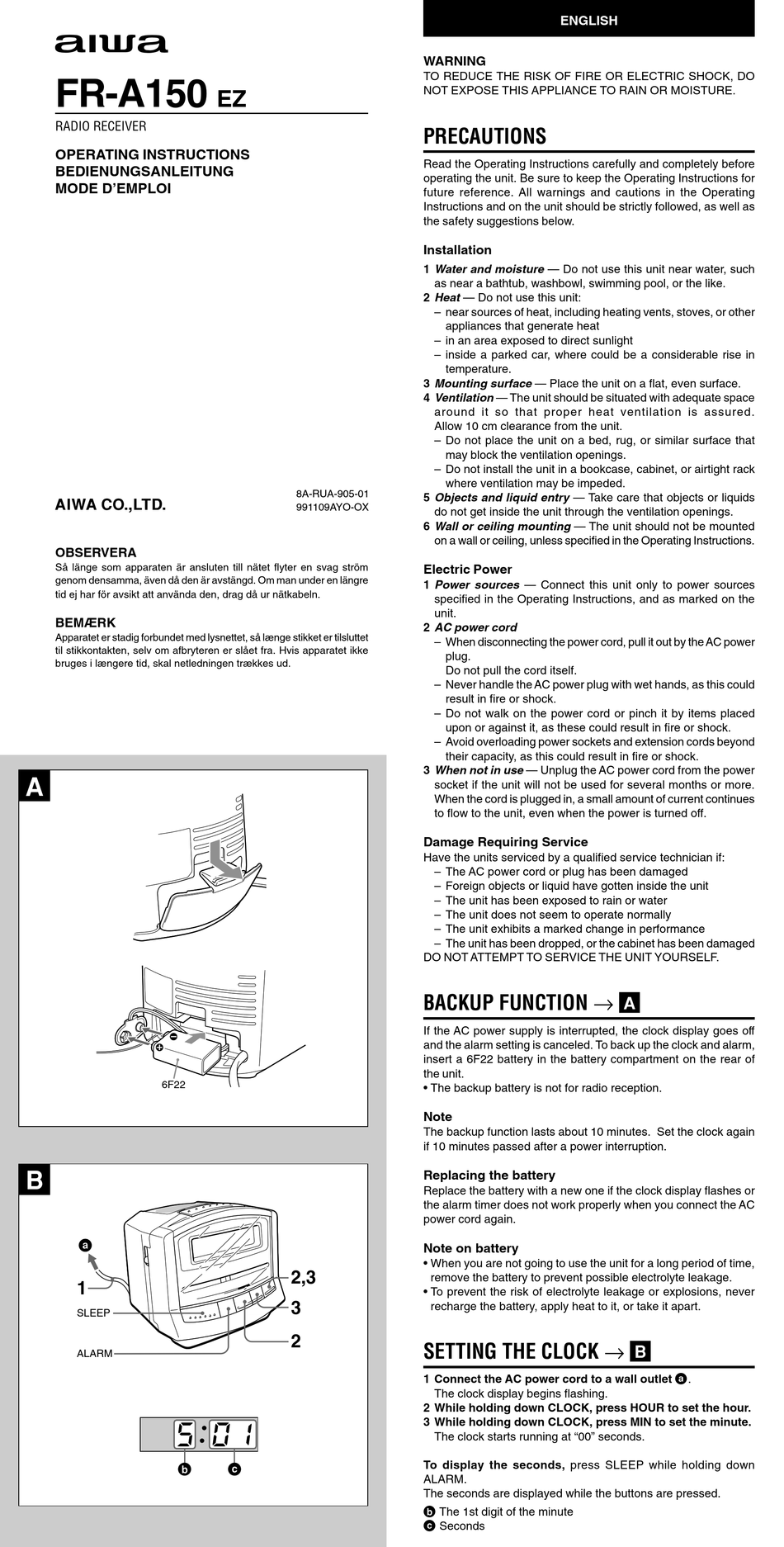

Aiwa FR-A150 EZ Operating Instructions

d
FR-A150
RADIO RECEIVER
OPERATING INSTRUCTIONS
BEDIENUNGSANLEITUNG
MODE D'EMPLOI
A
OBSERVERA
Så länge som apparaten är ansluten till nätet flyter en svag ström
genom densamma, även då den är avstängd. Om man under en längre
tid ej har för avsikt att använda den, drag då ur nätkabeln.
BEMÆRK
Apparatet er stadig forbundet med lysnettet, så længe stikket er tilsluttet
til stikkontakten, selv om afbryteren er slået fra. Hvis apparatet ikke
bruges i længere tid, skal netledningen trækkes ud.
A
6F22
B
1
SLEEP
ALARM
EZ
8A-RUA-905-01
991109AYO-OX
2,3
3
2
ENGLISH

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

PRECAUTIONS

Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions for
future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well as
the safety suggestions below.

Installation

1 Water and moisture — Do not use this unit near water, such
as near a bathtub, washbowl, swimming pool, or the like.
2 Heat — Do not use this unit:
– near sources of heat, including heating vents, stoves, or other
appliances that generate heat
– in an area exposed to direct sunlight
– inside a parked car, where could be a considerable rise in
temperature.
3 Mounting surface — Place the unit on a flat, even surface.
4 Ventilation — The unit should be situated with adequate space
around it so that proper heat ventilation is assured.
Allow 10 cm clearance from the unit.
– Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
– Do not install the unit in a bookcase, cabinet, or airtight rack
where ventilation may be impeded.
5 Objects and liquid entry — Take care that objects or liquids
do not get inside the unit through the ventilation openings.
6 Wall or ceiling mounting — The unit should not be mounted
on a wall or ceiling, unless specified in the Operating Instructions.

Electric Power

1 Power sources — Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.
2 AC power cord
– When disconnecting the power cord, pull it out by the AC power
plug.
Do not pull the cord itself.
– Never handle the AC power plug with wet hands, as this could
result in fire or shock.
– Do not walk on the power cord or pinch it by items placed
upon or against it, as these could result in fire or shock.
– Avoid overloading power sockets and extension cords beyond
their capacity, as this could result in fire or shock.
3 When not in use — Unplug the AC power cord from the power
socket if the unit will not be used for several months or more.
When the cord is plugged in, a small amount of current continues
to flow to the unit, even when the power is turned off.

Damage Requiring Service

Have the units serviced by a qualified service technician if:
– The AC power cord or plug has been damaged
– Foreign objects or liquid have gotten inside the unit
– The unit has been exposed to rain or water
– The unit does not seem to operate normally
– The unit exhibits a marked change in performance
– The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
BACKUP FUNCTION → A
If the AC power supply is interrupted, the clock display goes off
and the alarm setting is canceled. To back up the clock and alarm,
insert a 6F22 battery in the battery compartment on the rear of
the unit.
• The backup battery is not for radio reception.
Note
The backup function lasts about 10 minutes. Set the clock again
if 10 minutes passed after a power interruption.

Replacing the battery

Replace the battery with a new one if the clock display flashes or
the alarm timer does not work properly when you connect the AC
power cord again.
Note on battery
• When you are not going to use the unit for a long period of time,
remove the battery to prevent possible electrolyte leakage.
• To prevent the risk of electrolyte leakage or explosions, never
recharge the battery, apply heat to it, or take it apart.
SETTING THE CLOCK → B
1 Connect the AC power cord to a wall outlet a.
The clock display begins flashing.
2 While holding down CLOCK, press HOUR to set the hour.
3 While holding down CLOCK, press MIN to set the minute.
The clock starts running at "00" seconds.
To display the seconds, press SLEEP while holding down
ALARM.
The seconds are displayed while the buttons are pressed.
b The 1st digit of the minute
c Seconds
