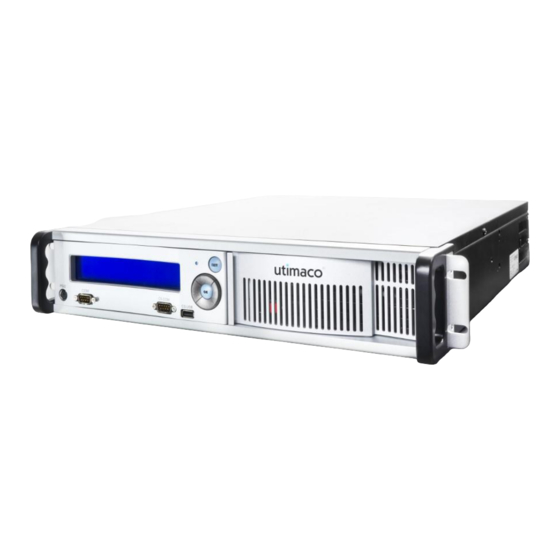

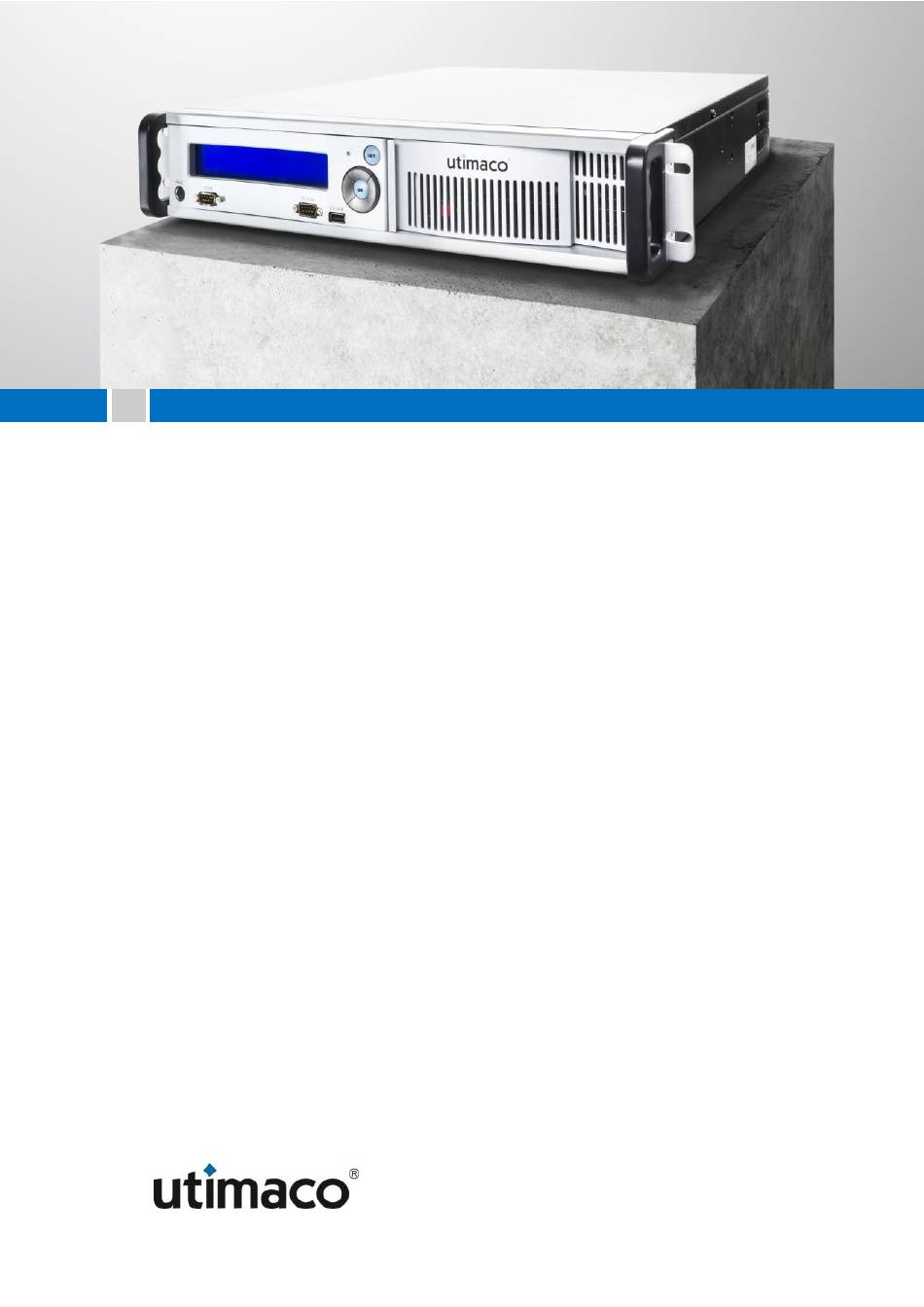

- Page 1 CryptoServer LAN Se-Series Operating Manual...
- Page 2 All Rights reserved No part of this documentation may be reproduced in any form (printing, photocopy or according to any other process) without the written approval of Utimaco IS GmbH or be processed, reproduced or distributed using electronic systems. Utimaco IS GmbH reserves the right to modify or amend the documentation at any time without prior notice.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction ..........................5 About this Manual ........................5 1.1.1 Target Audience for this Manual ..................5 1.1.2 Contents of this Manual ....................... 5 1.1.3 Document Conventions ......................5 Other Manuals ..........................6 Import and Export Regulations....................7 Damage in Transit ........................ - Page 4 Table of Contents Page 4 of 26...
-
Page 5: Introduction
Please do not hesitate to contact us if you have any complaints or comments. About this Manual The Utimaco IS GmbH reserves the right to modify or amend this manual at any time without prior notice. Utimaco IS GmbH assumes no liability for typographical errors and damages incurred due to them. -
Page 6: Other Manuals
Introduction We have used icons to highlight the most important notes and information. Here you find important safety information that should be followed. Here you find additional notes or supplementary information. Other Manuals The CryptoServer is supplied as a PCI-Express (PCIe) plug-in card in the following series: CryptoServer CSe-Series ■... -
Page 7: Import And Export Regulations
Introduction Manuals for System Administrators You will find these manuals on the product CD in the following folder: …Documentation\Administration Guides CryptoServer - Manual for System Administrators ■ If you need to administer a CryptoServer PCIe plug-in card or a CryptoServer LAN using the CryptoServer Administration Tool (CAT), read this manual. -
Page 8: Damage In Transit
If you discover that the transport boxes are damaged when they arrive, please immediately contact your reseller or Utimaco IS GmbH (the address and telephone number are given in Chapter 8, "Contact Address for Support Queries"). Please have the delivery note and the... -
Page 9: General Safety Instructions
General Safety Instructions Please follow all the warnings, safety notes and instructions given on the device or in this manual. If you fail to do so, Utimaco IS GmbH will not accept any liability for any resulting damage caused. The CryptoServer LAN includes a CryptoServer Se. If the predefined limit values for its internal temperature are exceeded (or not reached), all the data on the CryptoServer Se will be deleted. -
Page 10: 19" Rack
You can use slide rails for the installation of the CryptoServer LAN in a 19″ rack which you ■ can purchase from the manufacturer Utimaco IS GmbH. Desktop If you do not want to install CryptoServer LAN in a 19″ rack, please note the following: Place the device on a secure, stable surface. -
Page 11: Power Supply And Power Supply Cable
General Safety Instructions Ensure that the maximum permitted environmental temperature is not exceeded. ■ Ensure adequate ventilation. Never install the device in a cabinet or similar object in which ■ the circulation of air is impeded. The ventilation slots on the device must never be covered. -
Page 12: Opening The Device
If water, wires or other parts penetrate the device by accident, immediately disconnect the ■ power supply cable and inform your dealer or Utimaco IS GmbH. If you operate the device in this condition, you risk either causing a fire, or electrical shocks. -
Page 13: External Battery In The Battery Compartment
CryptoServer Se. The Carrier Battery can power the CryptoServer Se for at least six months. The Carrier Battery must only be replaced by an employee of Utimaco IS GmbH or one of its certified sales partners. -
Page 14: Bringing Into Service
Bringing into Service Bringing into Service Before you start up CryptoServer LAN, check whether all its parts are present: one CryptoServer LAN ■ one power supply cable ■ one CryptoServer Se-Series LAN Operating Manual (this Manual) ■ one PIN pad ■... -
Page 15: Ports And Operating Elements On The Front Face
Bringing into Service Ports and Operating Elements on the Front Face PS/2 power supply for PIN pads. Can also be used as a keyboard connector (without PS/2 Y adapter). Serial port for CryptoServer LAN administration Serial port of the CryptoServer Se USB 2.0 port of the CryptoServer Se Light to show when the device is in operation 6, 7... -
Page 16: Menu Control Buttons
If you press this switch 14 you will trigger the deletion procedure in the CryptoServer Se and all the security-critical information will be deleted. The resulting maintenance tasks are not covered by Utimaco IS GmbH's liability. 3.3.1 Menu Control Buttons There are six menu control buttons. -
Page 17: Bringing The Cryptoserver Lan Into Service
Bringing into Service Bringing the CryptoServer LAN into Service To bring the device into operation, follow these steps: Put the CryptoServer LAN in a 19″ rack or put it in the place where you want. Connect the power supply socket 2 on the rear face of the CryptoServer LAN to a power supply using the power supply cable supplied with the device. -
Page 18: Maintenance
Apart from this, no maintenance tasks should be carried out on the CryptoServer LAN. If you should open CryptoServer LAN for any other maintenance work, all liability claims against Utimaco IS GmbH become null and void. Checking the Battery Status The CryptoServer LAN displays LOW when the External Battery in the battery compartment or the Carrier Battery of the CryptoServer PCI reaches a critical power level. -
Page 19: Replacing The External Battery
If the Carrier Battery state displayed is LOW, it means the power level of the CryptoServer ■ Carrier Battery has sunk to a critical level. In this case, contact Utimaco IS GmbH or a certified sales partner and have them replace the Carrier Battery of the CryptoServer Se. - Page 20 Maintenance Now carefully pull out the battery compartment. During the next steps, take great care not to touch the delete switch on the back wall of the battery compartment. Unplug the power supply plug 13 from the back wall of the battery compartment. Use the wire cutter to carefully disconnect the cable tie from the battery.
- Page 21 Maintenance Remove the cable tie and then take the battery out of the compartment. Now place the new battery in the battery compartment. Then guide the new cable tie through the two holes in the battery compartment again and pull it gently to secure it. Plug the power supply plug 13 of the new battery into the back wall of the battery compartment.
-
Page 22: Switching Off The Cryptoserver Lan
CryptoServer Se no longer being supplied with power, and all the data will be deleted. The resulting maintenance tasks are not covered by Utimaco IS GmbH's liability. On the other hand, a brief interruption to the power supply (if the device is being moved around etc.) does not place a serious demand on the batteries and consequently there is no... -
Page 23: Disposing Of The Cryptoserver Lan
Of course, you also have the option of returning the CryptoServer LAN that you no longer require to us, Utimaco IS GmbH, as the manufacturer. In this case, we will take care for disposing of the CryptoServer LAN and the batteries in an environmentally friendly way. -
Page 24: Technical Data
Technical Data Technical Data Dimensions Height 88 mm (2 slots (height units)) Width 446 mm without attachment bracket (19”) Depth 510 mm excluding handles Weight 13 kg Operating power 90 V ~ 264 V, 47 ~ 63 Hz AC Power supply 400 W Power consumption Typically 54 W/60 VA, maximum 60 W/65 VA... - Page 25 Technical Data Conformity Interference emission in accordance with EN 55022 Class B, EN 61000-3-2, EN 61000-3-3 Interference immunity in accordance with EN 55024 Equipment safety in accordance with IEC 60950-1:2001/ EN 60950-1:2001 (CB scheme) FCC 47 CFR Ch. 1 Part 15 Class B Operating environments: ETSI EN 300 019: Storage class 1.1, Transport class 2.1 (with temperature range restricted to the storage environmental temperature given above), stationary use in environments that are protected...
-
Page 26: Contact Address For Support Queries
Contact Address for Support Queries Contact Address for Support Queries Please feel free to contact us if an error occurs while operating the CryptoServer LAN, or if you have any further questions on CryptoServer LAN. Utimaco IS GmbH Germanusstr. 4 52080 Aachen Germany You can reach us from Monday to Friday 09.00 a.m.
