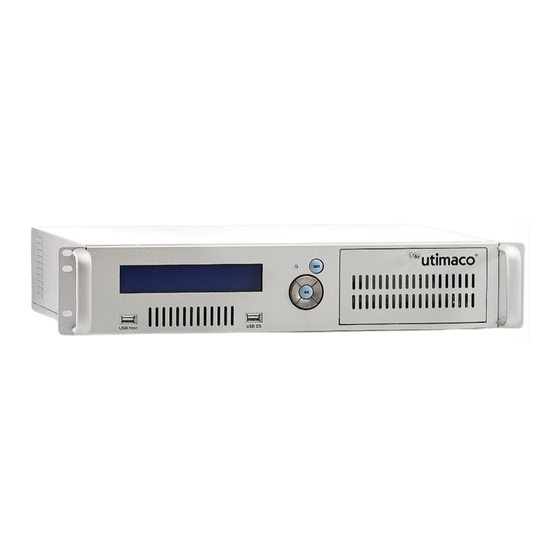

Utimaco CryptoServer LAN V4 Operating Manual
  1. Manuals
  2. Brands
  3. Utimaco Manuals
  4. Server
  5. CryptoServer LAN V4
  6. Operating manual

Utimaco CryptoServer LAN V4 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

CryptoServer LAN V4
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CryptoServer LAN V4 and is the answer not in the manual?

Questions and answers

Related Manuals for Utimaco CryptoServer LAN V4

Summary of Contents for Utimaco CryptoServer LAN V4

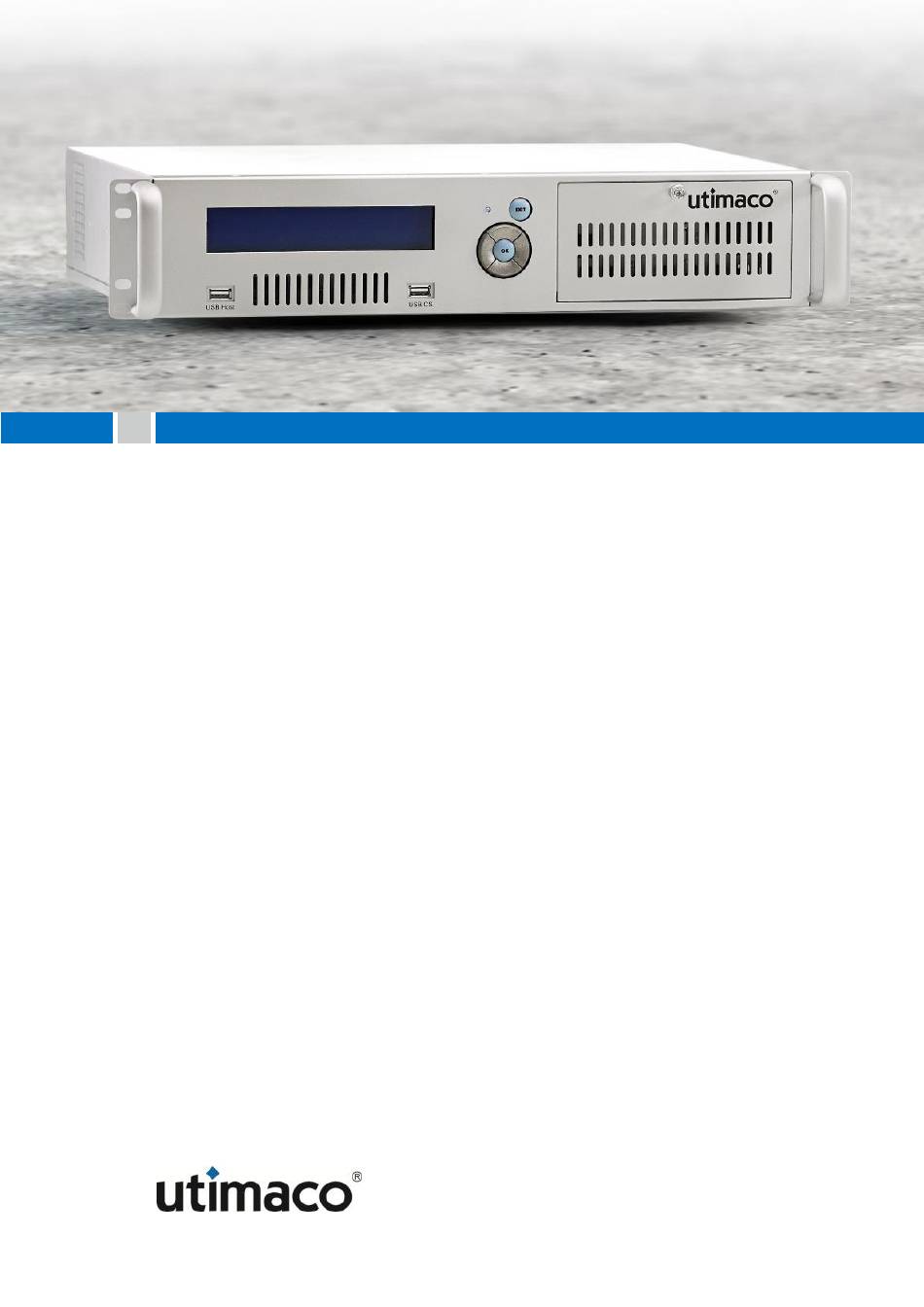

  • Page 1 CryptoServer LAN V4 Operating Manual...
  • Page 2 All Rights reserved No part of this documentation may be reproduced in any form (printing, photocopy or according to any other process) without the written approval of Utimaco IS GmbH or be processed, reproduced or distributed using electronic systems. Utimaco IS GmbH reserves the right to modify or amend the documentation at any time without prior notice.

  • Page 3: Table Of Contents

    Ports and Operating Elements on the Front Panel ..............20 3.3.1 Menu Control Buttons ......................21 3.3.2 Ports and Operating Elements behind the Front Door ............22 Bringing the CryptoServer LAN V4 into Service ............... 22 Maintenance ..........................25 Checking the Battery Status ..................... 25 Replacing the External Battery ....................
  • Page 4 Table of Contents Technical Data of CryptoServer LAN V4 (AC Power Supply) ............40 Technical Data of CryptoServer LAN V4 (DC Power Supply) ............41 Contact Address for Support Queries ..................42 Page 4 of 42...

  • Page 5: Introduction

    Introduction Introduction Thank you for purchasing our CryptoServer LAN V4 security system (referred to below also as CryptoServer LAN). We hope you are satisfied with our product. Please do not hesitate to contact us if you have any questions or comments.

  • Page 6: Document Conventions

    Introduction Chapter 9 provides the manufacturer's contact data in case you have questions on CryptoServer LAN or problems occurred while operating the CryptoServer LAN. 1.1.3 Document Conventions We use the following conventions in this manual: Convention Usage Example Items of the Graphical User Interface Bold Press the button.
  • Page 7 Introduction CryptoServer CSe-Series ■ CryptoServer Se-Series Gen2 ■ The CryptoServer LAN (appliance) is supplied in the following series: CryptoServer LAN CSe-Series ■ CryptoServer LAN Se-Series Gen2 ■ We provide the following manuals on the product CD for the CryptoServer PCIe CSe- and Se- Series Gen2 plug-in cards and for the CryptoServer LAN (appliance) CSe- and Se-Series Gen2: Quick Start Guides You will find these Manuals in the main folder of the SecurityServer product CD.

  • Page 8: Import And Export Regulations

    Nevertheless, damage may occur during transport or improper temporary storage. If you discover that the transport boxes are damaged when they arrive, please immediately contact your reseller or Utimaco (the e-mail address and telephone number are given in Page 8 of 42...

  • Page 9: Deliverables

    Deliverables The CryptoServer LAN deliverables include: one CryptoServer LAN V4 ■ two power supply cables ■ one CryptoServer LAN V4 Operating Manual (this manual) ■ one PIN pad ■ ten smartcards for administering the CryptoServer LAN V4 ■ Page 9 of 42...

  • Page 10: General Safety Instructions

    General Safety Instructions Please follow all the warnings, safety notes and instructions given on the device or in this manual. If you fail to do so, Utimaco will not accept any liability for any resulting damage caused. The CryptoServer LAN includes a CryptoServer CSe- or Se-Series Gen2. If the predefined limit values for its internal temperature are exceeded (or not reached), an alarm will be triggered and all the data on the CryptoServer will be deleted.

  • Page 11: Environmental Temperature

    You can use slide rails for the installation of the CryptoServer LAN in a 19″ rack which you ■ can purchase from the manufacturer Utimaco. To install CryptoServer LAN in a 19″ rack, simply attach the securing brackets to the 19″...

  • Page 12: Power Supplies And Power Supply Cables

    General Safety Instructions Never operate CryptoServer LAN close to water or other liquids. Never spill liquid on the ■ device. Do not place objects, articles of clothing or papers on the device itself. ■ Protect CryptoServer LAN against humid or dusty environments, vibrations, extreme ■...

  • Page 13: Opening The Device

    The CryptoServer LAN must only be opened by the employees of Utimaco or certified sales partners. If the CryptoServer LAN is opened by someone else, instead of an employee of Utimaco or a certified sales partner, Utimaco accepts no liability for any damage caused by opening the device.

  • Page 14: Batteries

    CryptoServer LAN. The carrier battery is placed on the CryptoServer plug- in card. These batteries are not rechargeable. Using the wrong batteries may cause an explosion! Utimaco IS GmbH accepts no liability for damage caused by using any other batteries except the ones supplied by Utimaco IS GmbH. 2.7.1...

  • Page 15: Cleaning

    General Safety Instructions The carrier battery can power the CryptoServer for at least six months. The carrier battery must only be replaced by an employee of Utimaco or one of its certified sales partners. Cleaning Clean CryptoServer LAN with a soft, clean cloth dampened with a mild soapy solution.

  • Page 16: Bringing Into Service

    Figure 7 resp. Figure 9. Figure 1: CryptoServer LAN V4 (AC) – Sockets and ports on the rear side (variant b) Figure 2: CryptoServer LAN V4 (AC) – Sockets and ports on the rear side (variant c)
  • Page 17 Bringing into Service Port/Interface Description CryptoServer LAN V4 (Figure 1 and Figure 2) a1, a2 Power supplies a3, a4 Power supply sockets 90 V ~ 246 V (AC) a5, a6 Power supply switches (switches power on/off) plus control light (green) above...

  • Page 18: Ports And Interfaces On The Rear Side (Dc Power Supply)

    Figure 7 resp. Figure 9. d10 d12 Figure 5: CryptoServer LAN V4 (DC) – Sockets and ports on the rear side (variant b) Page 18 of 42...
  • Page 19 Bringing into Service Figure 6: CryptoServer LAN V4 (DC) – Sockets and ports on the rear side (variant c) Port/Interface Description CryptoServer LAN V4 (Figure 5 and Figure 6) d1, d2 Power supplies d3, d4 Power supply sockets 42 V ~ 60 V DC...

  • Page 20: Ports And Operating Elements On The Front Panel

    Buttons for CryptoServer LAN menu control Screw for opening the front door of the CryptoServer LAN Front door of the CryptoServer LAN Table 4: Ports and operating elements on the front panel of the CryptoServer LAN V4 Page 20 of 42...

  • Page 21: Menu Control Buttons

    There are six menu control buttons.     Figure 8: Control menu buttons of the CryptoServer LAN V4 Button Function EXIT Quit the currently displayed menu level or menu item Select the menu level or confirm the menu item ...

  • Page 22: Ports And Operating Elements Behind The Front Door

    Bringing into Service 3.3.2 Ports and Operating Elements behind the Front Door Figure 9: CryptoServer LAN V4 – Ports and operating elements behind the front door Port/ Description Op. element Mute key for the signal tone that sounds if a power supply fails or is switched off...
  • Page 23 Trans./min.: Clients: Load: Figure 10: Display of CryptoServer LAN V4 – initial view The values displayed in the figure above for the operating mode (Mode:), the temperature in °C (Temp.:), the battery state ( ), the transactions number per minute (Trans./min.:), the number of currently logged on clients (Clients:) and the CryptoServer...
  • Page 24 Bringing into Service Change the password for the users root and cslagent of the CryptoServer LAN as described in chapter "Changing the Password for the Users root and cslagent" of the CryptoServer LAN Manual for System Administrators. Configure the IP address for the CryptoServer LAN and for the default gateway. ▣...

  • Page 25: Maintenance

    Apart from this, no maintenance tasks should be carried out on the CryptoServer LAN. If you should open CryptoServer LAN for any other maintenance work, all liability claims against Utimaco become null and void. Checking the Battery Status The CryptoServer LAN displays LOW when the external battery in the battery compartment or the carrier battery of the CryptoServer CSe/Se-Series Gen2 reaches a critical power level.

  • Page 26: Replacing The External Battery

    If the carrier battery state displayed is LOW, it means the power level of the CryptoServer ■ carrier battery has sunk to a critical level. In this case, contact Utimaco or a certified sales partner and have them replace the carrier battery of the CryptoServer.
  • Page 27 This battery is not rechargeable. Using the wrong batteries may cause an explosion. Utimaco IS GmbH accepts no responsibility for damage caused by any batteries other than those supplied by Utimaco IS GmbH. Please ensure you dispose of spent batteries in accordance with the manufacturer's instructions and in an environmentally responsible manner.
  • Page 28 Maintenance Figure 13: Removing the front door of the CryptoServer LAN V4 Turn the black screw cap of the battery compartment counterclockwise to open it. Figure 14: Opening the battery compartment of the CryptoServer LAN V4 Page 28 of 42...
  • Page 29 Figure 15: Removing the screw cap of the battery compartment Take the battery out of the compartment. Figure 16: Removing the external battery of the CryptoServer LAN V4 Make sure the contacts of the new battery and the metal plate inside the black screw cap are clean and grease-free.
  • Page 30 Maintenance Screw on the black screw cap of the battery compartment to close it, by slightly pushing the screw cap with your finger and turning it clockwise with the other hand. Do not misthread the black screw cap when screwing it on battery compartment. Figure 17: Screwing on the screw cap of the battery compartment for the external battery Close the front door of the CryptoServer LAN, and lock it by turning the knurled screw clockwise.

  • Page 31: Removing/Swapping A Power Supply Module

    Disconnect the power cable from the relevant power supply module (the upper one in our example figures). On a CryptoServer LAN V4 variant c (Figure 2 resp. Figure 6), undo the screw used to attach the guard bracket a17/d15 by using a screwdriver. If you are using a CryptoServer LAN V4 variant b (Figure 1 resp.
  • Page 32 Maintenance Figure 18: Power supply modules (AC) of the CryptoServer LAN V4 Figure 19: Power supply modules (DC) of the CryptoServer LAN V4 Use the handle a1/d1 to carefully pull the power supply module out of the CryptoServer LAN's case.
  • Page 33 Attach the new power supply module to the case with the screw a7/d7 provided for that purpose. On a CryptoServer LAN V4 variant c (Figure 2 resp. Figure 6), attach the guard bracket a17/d15 to the case with the screw to protect both power supply modules against inadvertent displacement during transport/movement.

  • Page 34: Switching Off The Cryptoserver Lan

    CryptoServer no longer being supplied with power, and all the data will be deleted. The resulting maintenance tasks are not covered by Utimaco's liability. On the other hand, a brief interruption to the power supply (if the device is being moved around etc.) does not place a serious demand on the batteries and consequently there is no...

  • Page 35: Disposing Of The Cryptoserver Lan

    Of course, you also have the option of returning the CryptoServer LAN that you no longer require to us, Utimaco, as the manufacturer. In this case, we will take care for disposing of the CryptoServer LAN and the batteries in an environmentally friendly way.
  • Page 36 Disposing of the CryptoServer LAN Figure 20: Opening the front door of the CryptoServer LAN V4 If you want, you can remove the front door from the bracket. Figure 21: Removing the front door of the CryptoServer LAN V4 Page 36 of 42...
  • Page 37 Series Gen2 in the CryptoServer LAN, it is not necessary that the CryptoServer LAN has been switched on. Figure 22: ERASE pushbutton for performing External Erase on a CryptoServer LAN V4 ▣ If there is a single CryptoServer plug-in card integrated in the CryptoServer LAN, only the ERASE CS push-button is connected.

  • Page 38: Disposing The Batteries

    Disposing of the CryptoServer LAN mode = Maintenance Mode state = INITIALIZED (0x000a7f84) temp = 40.1 [C] alarm = ON Figure 23: CryptoServer LAN display – status output after deletion of sensitive data ERASE Regardless of whether you have performed an External Erase (pressing the push- button) or not, the following applies: If you remove the CryptoServer PCIe plug-in card from the CryptoServer LAN and remove...
  • Page 39 Batteries are reused. They contain important raw materials such as iron, zinc, manganese or nickel. You can either dispose of the CryptoServer LAN's battery at a suitable municipal or commercial collection point, or send it to us, Utimaco IS GmbH, as the manufacturer. Page 39 of 42...
  • Page 40 Technical Data of CryptoServer LAN V4 (AC Power Supply) Technical Data of CryptoServer LAN V4 (AC Power Supply) Dimensions Height 88 mm (2 slots (height units)) Width 446 mm without attachment bracket (19″) Depth 472 mm excluding handles Weight 13 kg...
  • Page 41 Technical Data of CryptoServer LAN V4 (DC Power Supply) Technical Data of CryptoServer LAN V4 (DC Power Supply) Dimensions Height 88 mm (2 slots (height units)) Width 446 mm without attachment bracket (19”) Depth 472 mm excluding handles Weight 13 kg...
  • Page 42 Contact Address for Support Queries Contact Address for Support Queries Please feel free to contact us if an error occurs while operating the CryptoServer, or if you have any further questions on CryptoServer. Utimaco IS GmbH Germanusstr. 4 52080 Aachen Germany You can reach us from Monday to Friday 09.00 a.m.
