Summary of Contents for Smittybilt 2983

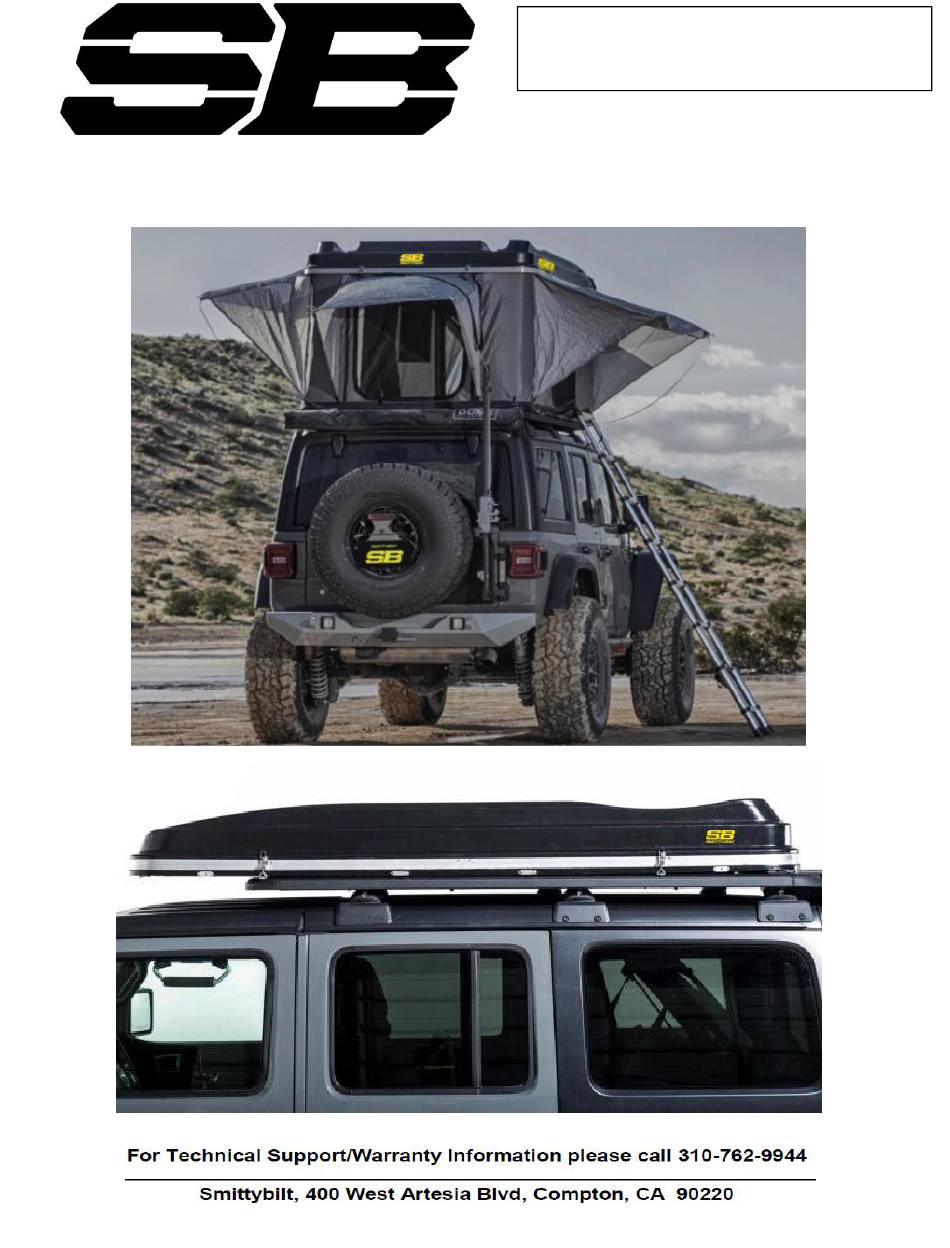

- Page 1 Hardshell Overland Tent Part # 2983 WWW.SMITTYBILT.COM...
- Page 2 Periodically check torque of all hardware. The Smittybilt Overlander Tents are designed to mount easily on most roof rack systems or on an aftermarket rack/crossbar system. Generally, most OE roof racks will have a capacity of 150-200 lbs while vehicle is in motion(dynamic rating). However, when the vehicle is parked and you are utilizing your Smittybilt Overlander Tent you are applying a static load which is easier to support and most rack systems can generally handle this static load with ease.
- Page 3 Hardshell Overland Tent Part # 2983 Mounting Tent to cross bars WWW.SMITTYBILT.COM Periodically check torque of all hardware. Step 1. Install the square head carriage bolts into the access holes on the tent base. Do this for both sides of the tent base, 4 bolts will be used per side.
- Page 4 Hardshell Overland Tent Part # 2983 Set Up WWW.SMITTYBILT.COM Step 1. Open all eight(8) stainless steel latches. Then secure latch making sure the hook is disconnected. Fig 1. This ensures that the hook does not grasp on the catch when trying to open the tent.
- Page 5 Hardshell Overland Tent Part # 2983 Set Up WWW.SMITTYBILT.COM Step 3. Install ladder into ladder brackets on side of tent (Fig 1), then open and adjust ladder to proper height. Secure ladder to tent by inserting the pin thru the hole in the ladder mounting arm. Fig 2&3.
- Page 6 Hardshell Overland Tent Part # 2983 Ladder adjustment WWW.SMITTYBILT.COM For the most adjustment, press in the top most steps buttons and then collapse ladder. If more or less adjustment is needed. The second thru the eighth step can be adjusted in smaller increments.
- Page 7 Hardshell Overland Tent Part # 2983 Window setup WWW.SMITTYBILT.COM Step 1. Insert window rod into window rod holes. (Fig 1) Then bend the rod upward and attach to the grommet on the corner of the window.(Fig 2) Note: front and rear...
- Page 8 Hardshell Overland Tent Part # 2983 Storage solutions WWW.SMITTYBILT.COM Shoe bag can be attached to the left side of the ladder on either side of the tent. Install bag by connecting the toggle and loops. Do not overload shoe bag, as damage to bag or tent may occur.
- Page 9 Hardshell Overland Tent Part # 2983 Closing the tent WWW.SMITTYBILT.COM Step 1. Install the elastic cords on the inside of the tent. They will attach to the loops on inside of each entrance. They are used to help pull the fabric “IN”...
- Page 10 Hardshell Overland Tent Part # 2983 Closing the tent WWW.SMITTYBILT.COM Step 4. Pull down on pull strap till you can reach the roof. Then pull down the roof till it is almost closed. Repeat for opposite side. Step 5. Tuck in any fabric so it does not get caught between the top and bottom half of the shell.
- Page 11 Hardshell Overland Tent Part # 2983 Care Instructions WWW.SMITTYBILT.COM Periodically check torque of all hardware. This includes all tent mounting hardware and internal hinge and hinge mounting hardware. If roof liner buttons come off, they can be simply snapped back into place.
-
Page 12: Care Instructions
Hardshell Overland Tent Part # 2983 Care Instructions WWW.SMITTYBILT.COM 1. Clean fabric only with cold water and a soft brush - do not use soap or detergent, this will remove the waterproofing compounds. 2. Do not expose to petrol, oil orsolvents. - Page 13 Hardshell Overland Tent Part # 2983 WWW.SMITTYBILT.COM...
- Page 14 5 year warranty from date of purchase. Subject to the duration and conditions of the limited warranty stated below, Smittybilt warrants to the original retail purchaser that its products are free from defects in material and workmanship. Smittybilt shall not be responsible for the natural wear and breakdown of materials that occurs with extended use, such as UV damage or worn zippers, abuse, misuse, storm damage, or improper care.
