AVENN 005-TH-RRS64 Owner's Manual

Skinny type roof rack cargo carrier
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

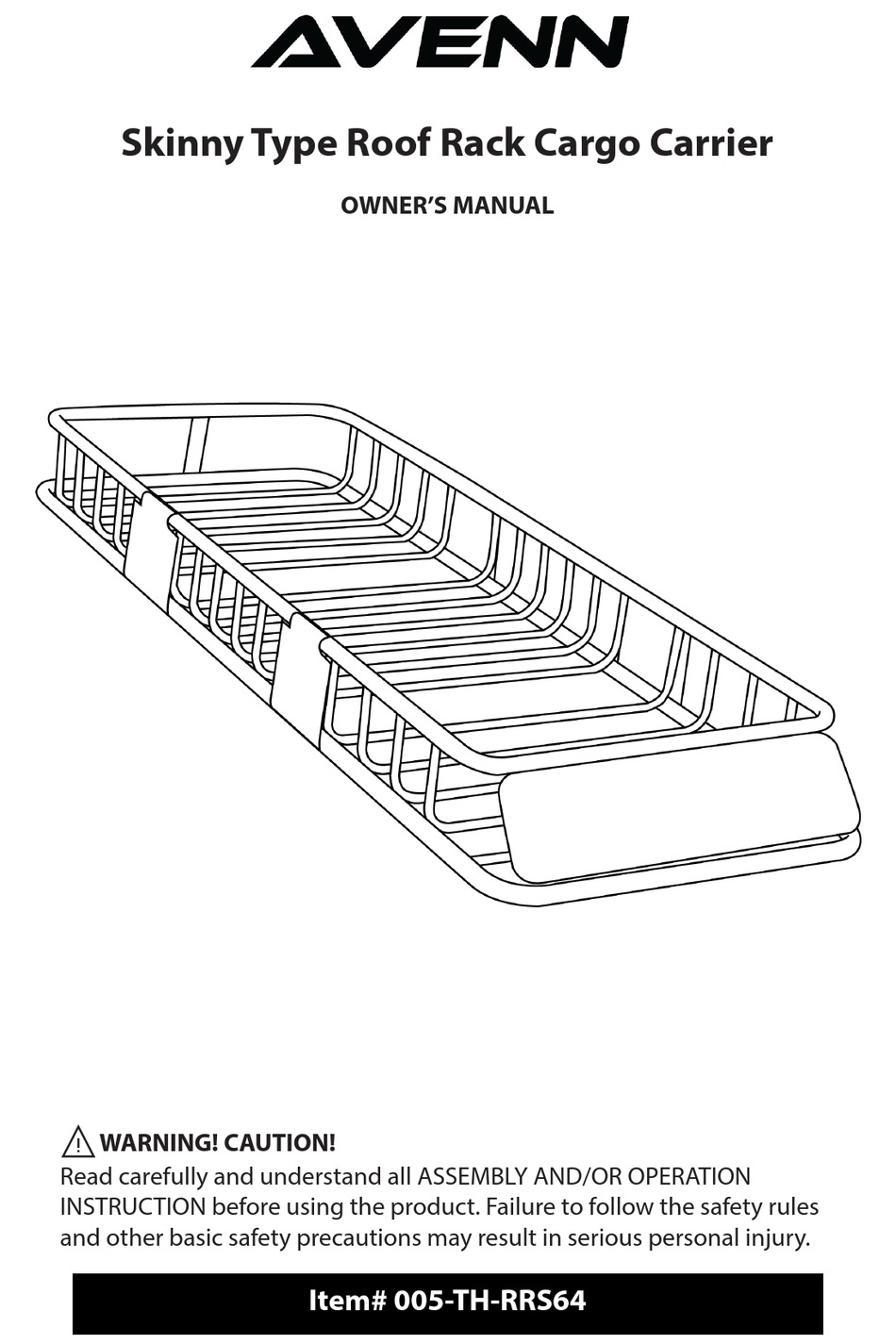

Skinny Type Roof Rack Cargo Carrier
OWNER'S MANUAL
⚠
WARNING! CAUTION!
Read carefully and understand all ASSEMBLY AND/OR OPERATION
INSTRUCTION before using the product. Failure to follow the safety rules
and other basic safety precautions may result in serious personal injury.
Item# 005-TH-RRS64

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 005-TH-RRS64 and is the answer not in the manual?

Questions and answers

Related Manuals for AVENN 005-TH-RRS64

Summary of Contents for AVENN 005-TH-RRS64

  • Page 1 Skinny Type Roof Rack Cargo Carrier OWNER’S MANUAL ⚠ WARNING! CAUTION! Read carefully and understand all ASSEMBLY AND/OR OPERATION INSTRUCTION before using the product. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 005-TH-RRS64...
  • Page 2 owner’s manual Thank you for purchasing our product. This manual covers operation and maintenance information about the product. Read carefully and understand all instruction before using the product. All information in this publication is based on the latest product information available at the time of approval for printing.
  • Page 3 Do not carry any flammable or combustible items on the rack. • Use the roof rack according to your state, or local vehicle regulation. SAVE THESE INSTRUCTIONS SPECIFICATION Model Number 005-TH-RRS64 Overall Dimension 64” x 23” x 6” Max. Load Capacity 150 lb U-bolt Spacing...
  • Page 4 owner’s manual PACKAGE CONTENT Washer Wing Nut Spacer U-Bolts Bracket Top Plate Foam Padding Nuts 16 mm Screws 35 mm Screws Side Fairing Rear Basket Basket Extension Front Basket Front Fairing Top Clip Bottom Clip Allen Wrench...
  • Page 5 owner’s manual ASSEMBLY INSTRUCTION • Slide the basket assembly together.
  • Page 6 owner’s manual • Secure the assembly using the provided screws through the side fairing to the basket frame.
  • Page 7 owner’s manual Top Clip (smaller) Washer Short Screws Bottom Clip (larger) Long Screws Spacer • Assemble the front fairing to the basket. • Install the clip on the rack. The smaller clips fit on the top and the larger clips fit on the bottom. •...
  • Page 8 owner’s manual ASSEMBLY INSTRUCTION (BASKET INSTALLATION) • The rack can only be installed on vehicles with mounting rail and cross bar. NOTE: Check with your vehicle dealership for compatible mounting rail if necessary. • Position the saddle away from the center of the rack for even weight distribution. Align them to the crossbar on your vehicle.
