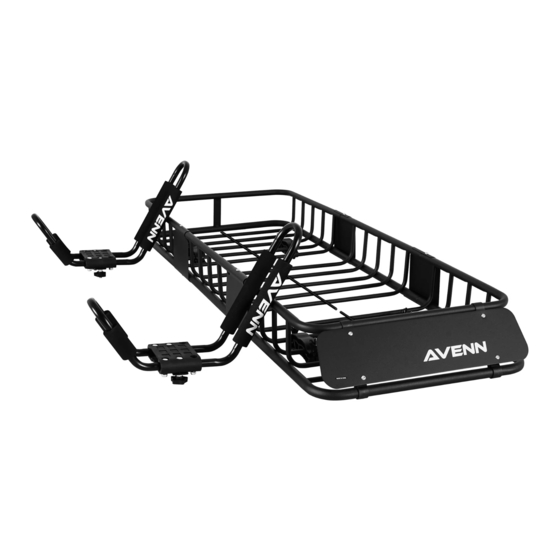

AVENN 005-TH-KRR23W Owner's Manual

Kayak carriers (w/ lashing straps & stern tie down straps) + 64” x 23” x 6” roof rack combo set
Hide thumbs

Advertisement

Quick Links

Download this manual
Kayak Carriers (w/ Lashing Straps & Stern
Tie Down Straps) + 64" x 23" x 6" Roof Rack
Combo Set
OWNER'S MANUAL
WARNING! CAUTION!
Read carefully and understand all ASSEMBLY AND/OR OPERATION
INSTRUCTION before using the product. Failure to follow the safety rules
and other basic safety precautions may result in serious personal injury.
Item# 005-TH-KRR23W

Advertisement

loading
Need help?

Need help?

Do you have a question about the 005-TH-KRR23W and is the answer not in the manual?

Questions and answers

Related Manuals for AVENN 005-TH-KRR23W

Summary of Contents for AVENN 005-TH-KRR23W

  • Page 1 Tie Down Straps) + 64” x 23” x 6” Roof Rack Combo Set OWNER’S MANUAL WARNING! CAUTION! Read carefully and understand all ASSEMBLY AND/OR OPERATION INSTRUCTION before using the product. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 005-TH-KRR23W...

  • Page 2: Table Of Contents

    owner’s manual Thank you for purchasing our product. This manual covers operation and maintenance information about the product. Read carefully and understand all instruction before using the product. All information in this publication is based on the latest product information available at the time of approval for printing.

  • Page 3: Warning And Precaution

    Do not carry cargo that is larger than the rack. • • Use the roof rack according to your state, or local vehicle regulation. SAVE THESE INSTRUCTIONS SPECIFICATION Model Number 005-TH-KRR23W Overall Dimension 64” x 23” x 6” Max. Load Capacity 150 lb U-bolt Spacing 4.65” wide x 1.375”...

  • Page 4: Package Content (Roof Rack)

    owner’s manual PACKAGE CONTENT (Roof Rack) Washer Wing Nut Spacer U-Bolts Bracket Top Plate Foam Padding 16 mm Screws 35 mm Screws Side Fairing Rear Basket Basket Extension Front Basket Front Fairing Top Clip Bottom Clip...

  • Page 5: Assembly Instruction (Roof Rack)

    owner’s manual ASSEMBLY INSTRUCTION (Roof Rack) • Slide the basket assembly together.
  • Page 6 owner’s manual • Secure the assembly using the provided screws through the side fairing to the basket frame.
  • Page 7 owner’s manual Top Clip (smaller) Washer Short Screws Bottom Clip (larger) Long Screws Spacer • Assemble the front fairing to the basket. • Install the clip on the rack. The smaller clips fit on the top and the larger clips fit on the bottom. •...
  • Page 8 owner’s manual ASSEMBLY INSTRUCTION (BASKET INSTALLATION) • The rack can only be installed on vehicles with mounting rail and cross bar. NOTE: Check with your vehicle dealership for compatible mounting rail if necessary. • Position the saddle away from the center of the rack for even weight distribution. Align them to the crossbar on your vehicle.

  • Page 9: Package Content (Kayak Carrier)

    owner’s manual PACKAGE CONTENT (Kayak Carrier) Long Carrier Short Carrier Rubber Big Bracket Small Bracket High Density Foam Nylock Nut Long Bolt Short Bolt Anti Loosing Nut Tie Down Strap Ratchet Lashing Strap Washer...

  • Page 10: Assembly Instruction (Kayak Carrier)

    owner’s manual ASSEMBLY INSTRUCTION (Kayak Carrier) • Slide the high density foam to the carrier. • Slide the long and short carrier into the center rubber.
  • Page 11 owner’s manual short Bolt Long Bolt Big Bracket Washer Anti Loosing Nut Small Bracket Washer Nylock Nut • Install the carrier module on your vehicle mounting rail.
  • Page 12 owner’s manual...
