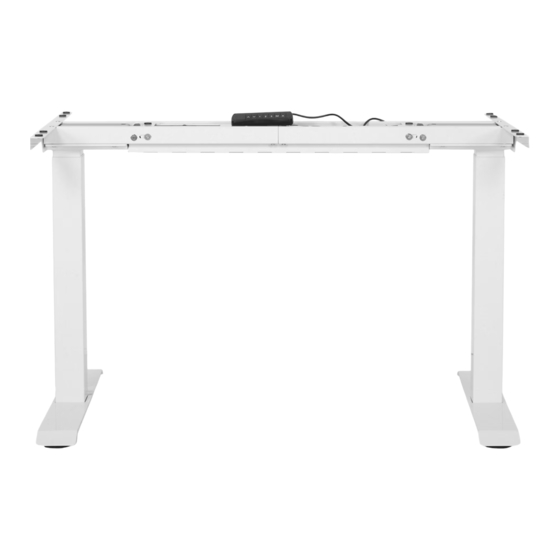

Eurooffice Mex 998ET123IBKZ01W Installation Manual

Item No.: 998ET123IBKZ01W
echnical data
T
Column qty 2 Input Voltage 100- 240V
Max Loading
100KG Max Speed 32mm/ s
capacity
Height range 690-1180mm Temperature 0- 40°C
Length range Certification CE FCC CUL
1100-1450mm
Frequency continuous operation for 2 mins at most after pause for 18 mins

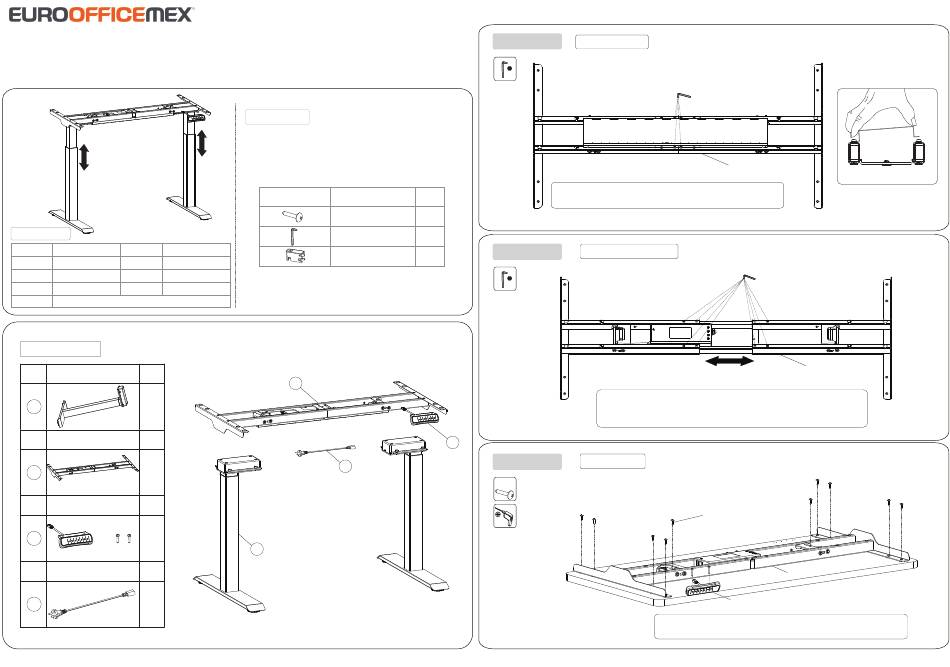

Component list

No. Part Qty
1
2
Table Leg
No. Part Qty
2
1
Supporting Beam (with Control Box)
No. Part Qty
+
3 1
Handset with Self-tapping Screw
No. Part Qty
4 1
Power Plug
Installation guide

Accessory list

Attention: The drawings below are only for reference which might be
slightly different from the actual object, please in kind prevail. Any
tools missing or installation problems, please contact the customer
service firstly.
Spec
ST4.2X19
allen key
4x4mm
Insurance Buckle
2
4
1
STEP1
Take off the Baffle
4x4
Use a 4 x 4 allen key to loosen the 4 screws on the supporting
Qty
beam (2), press one side of the baffle to remove the baffle.
10
1
STEP2
安装步骤2 Adjust Supporting Beam
2
4x4
3
STEP3
安装步骤2 Attach Tabletop
x10
Loosen the screws
2
Use a 4 x 4 allen key to loosen the 8 screws on the supporting beam (2),
adjust the beam to a position suitable for the tabletop, and tighten it with
the 4 x 4 allen key. The adjustment range of the beam is 1100-1450 mm.
ST4.2X19
3
Install the supporting beam (2) on the tabletop, fix it with ST 4.2 x 19
screws, and tighten screws with a pistol drill.
2
2
