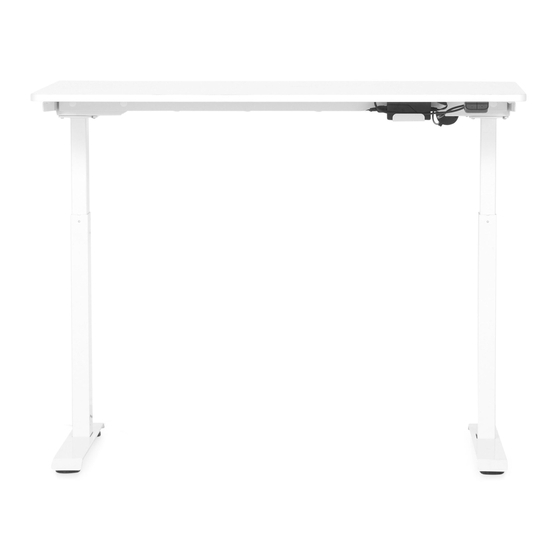

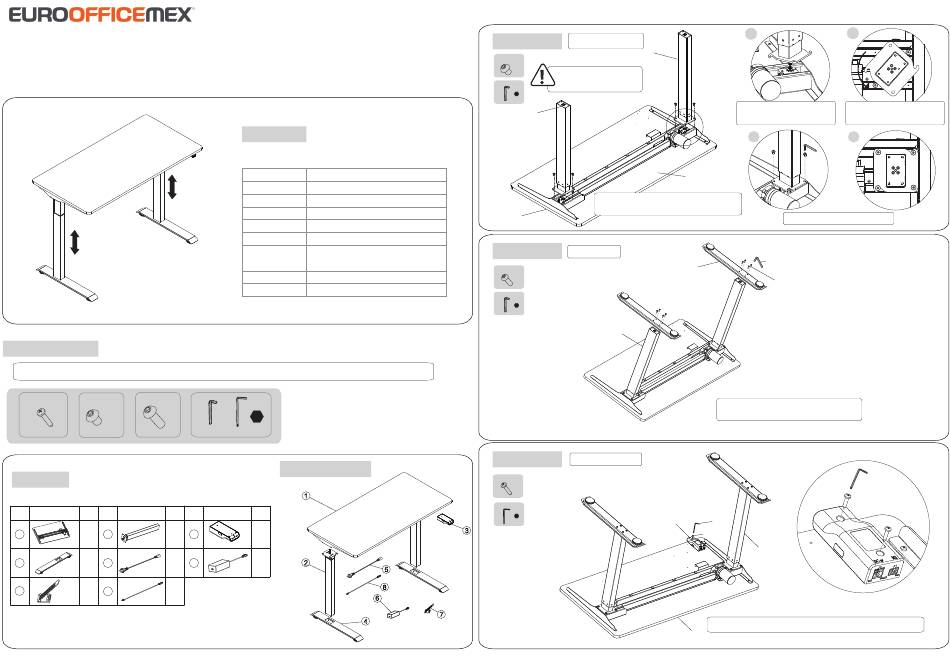

Eurooffice Mex 998ET119EW Installation Manual

Item No.: 998ET119EW
Accessory List
Attention: The drawings below are only for reference which might be slightly different from the actual object, please in kind prevail. Any tools missing
or installation problems, please contact the customer service firstly.
A B C
X3
x8
x4
ST4.2 M6
M6
Part List
No. Part Qty No. Part Qty No.
1 1 2 2 3
Tabletop Lifting column
4 2 5 1 6
Power plug
Feet
4
7 8
1
Cable Adapter
mounts cable
Installation guide
Technical Data
Column Number
2
Maximum Load
50KG
Max Speed
25mm/s
Input Voltage
100-240V
Lowest Position 730mm
Highest Position 1230mm
1200mm(length)
Desktop Size
600mm(width)
Continuous operation for 2 mins at most after
Duty Cycle
pause for 18 mins
Applicable Temperature
0~40°C
D
x1
4x4 5x5
(With cross)
Installation Instruction
1
Part Qty
1
Hand-switch
2
1
Adaptor
4
STEP1
B
x4
D
4x4
Long side of
the column
Short side of
the desktop
STEP2
C
x8
D
4x4
STEP3
A
x2
D
5x5
3
5
8
6
7
Install the lifting column
2
Rotate the column after
inserting it to the bottom
to avoid height difference
Insert the hexagon head of the column
along the wiring trough, the side of the
wire head facing the motor
1
Install the lifting column (2) to the tabletop(1),
then tighten the screws (B) with allen key (D)
Install the feet
4
2
Connect lifting columns(2) to the feet, tighten
screw(C) with allen key(D)
Install the hand switch
3
D
A
Fix the hand switch with the screw (A)and tighten it with 5*5 wrench (D)
1
2
1
Insert
Rotate the column after inserting
it, making the screws on the
supporting beam into the column slot
3 4
D
B
Screws
screws (B)
Tighten the with 4*4 allen key
D
C
D
A
2
