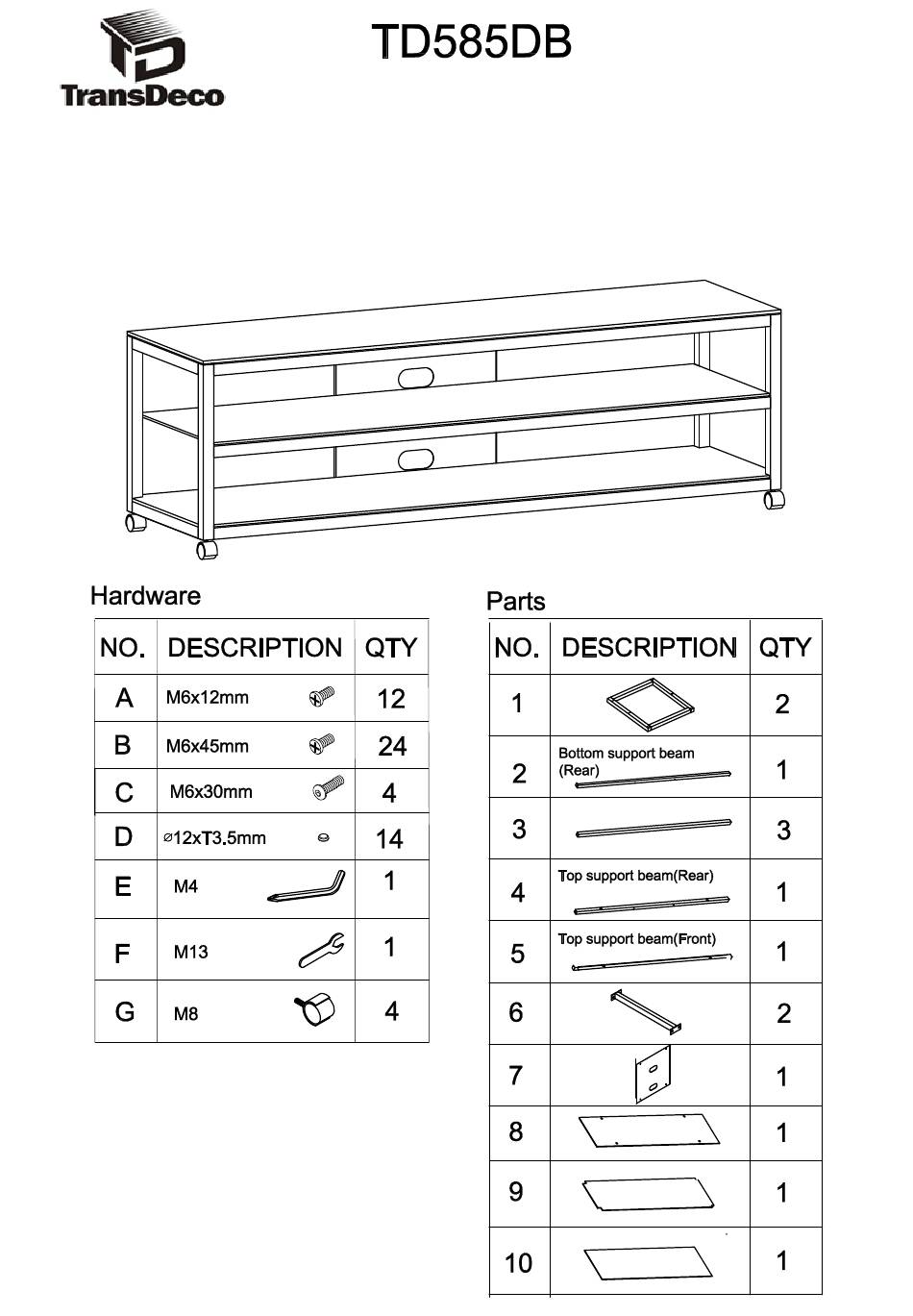

- Page 1 If you have missing parts or questions please email info@transdecointl.com or call 909-606-3833 Mon-Fri 9 AM to 5 PM pacific time. Please have your product model number available.
- Page 2 Install casters to side frames as shown. Install the bottom shelf support beams. Part #2 is on the back side of the unit.
- Page 3 Install the middle shelf support beams(Part #3) as shown. Do not fasten the screws completely at this point for easy alignment later. Install the top shelf support beams Part #4 & 5 as shown and check the bigger pre-drilled holes for the glass are on the top of the beam. Part # 4 is on the back side of the unit.
- Page 4 -Install the right side frame as shown. -Do not fasten any one screw completely until all the beams installed and aligned. -If there is any difficulty to align a screw hole please lossen the screws at the other end of the beam then align the beam and fastern the screw again.
- Page 5 -Install the wire management panel as shown. Apply Self-adhesive vinyl surface pads (Part # D) on the beams as shown.
- Page 6 Install the bottom glass shelf as shown. Install the middle glass shelf as shown.
- Page 7 Install the top glass shelf as shown. Do not over tighten the screw (part # C)
