JCHADWICK 8400K User Manual

JCHADWICK 8400K User Manual

Optical micrometer kit

Advertisement

Quick Links

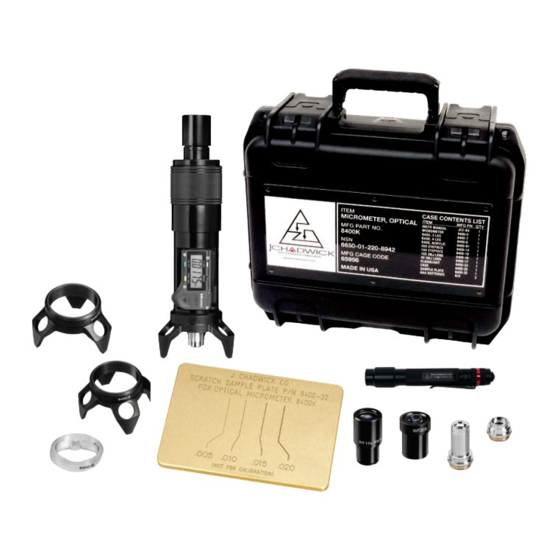

8400K Kit Contents
1
2
3
4
1
11
P/N
Item Description
1
8400-0
Optical Micrometer
(shown w/ eyepiece, objective and base installed)
2
8400-7
Base, 3-Leg
3
8400-8
Base, 4-Leg
4
8400-91
Base, Clear V-Block
5
8400-14
Eyepiece, 20X
6
8400-15
Eyepiece, 10X w/ Reticle
7
8400-16
Objective Lens, 10X
8
8400-17
Objective Lens, 4X
9
8400-23
LED Flashlight
10
8400-25
Carrying Case
11
8400-32
Scratch Sample Plate
Specifications
Accuracy
+/- 0.001" (+/- 0.02mm)
Resolution
0.0005" (0.01mm)
Vertical Range
10X Objective - Max depth 0.250" (6.4mm)
4X Objective - Max depth 1.250" (32mm)
Temperatures
Operating 0ºC to 40ºC / 32ºF to 140ºF
Storage -10ºC to 60ºC / 14ºF to 140ºF
Calibration
Recommended calibration cycle: 12 months
Link to our website with
training videos
product registration.
10
9
8
6
7
5
and

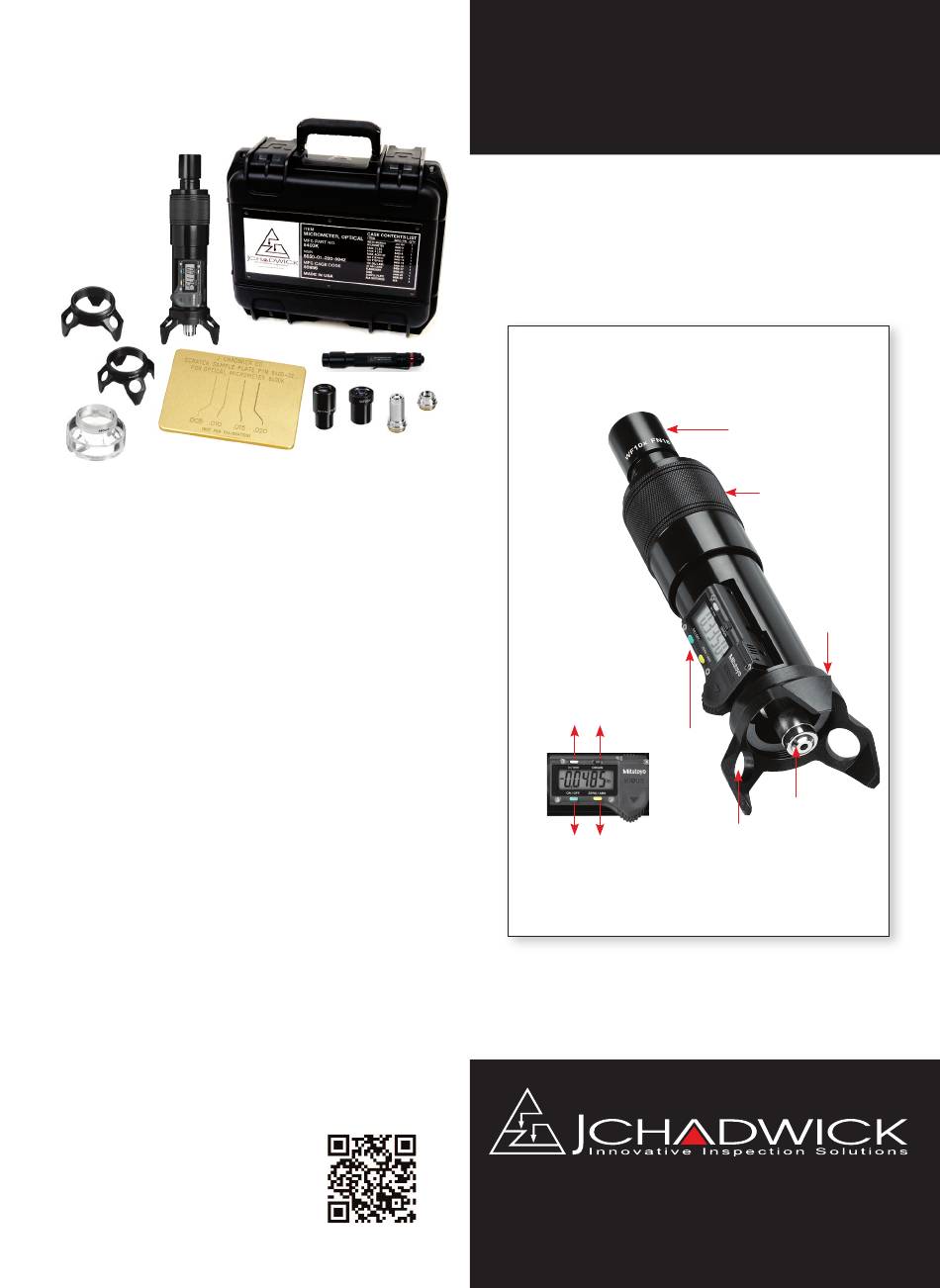

USER MANUAL
8400K
Optical Micrometer Kit
Optical Micrometer
in/mm
ORIGIN
Toggles
Used to set
between
initial zero
inches and
on a flat
millimeters
surface
Digital Display
ON/OFF
ZERO/ABS
Turns
Use during
display
measurement
to set zero
on or off
(start point)
Online Product Registration
www.jchadwickco.com
For technical support:
(866) 358 -9955
www.jchadwickco.com
Doc# B4 Rev Aug-2018
Eyepiece
Focus Adjustment
Base
Objective Lens
Flashlight Receptacle

Advertisement

loading
Need help?

Need help?

Do you have a question about the 8400K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for JCHADWICK 8400K

  • Page 1 USER MANUAL 8400K Kit Contents Doc# B4 Rev Aug-2018 8400K Optical Micrometer Kit Optical Micrometer Eyepiece Item Description Focus Adjustment 8400-0 Optical Micrometer (shown w/ eyepiece, objective and base installed) 8400-7 Base, 3-Leg 8400-8 Base, 4-Leg 8400-91 Base, Clear V-Block...
  • Page 2 Taking Measurements The Micrometer uses focus to measure the distance The Eyepiece, Objective Lens and Base can between two points at different depths. Subjects on be swapped out for different applications. the same focal plane (depth) will appear in very sharp focus, while anything above or below will be blurry.
