HEX-BEAM SP7IDX MARK IV HD Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
HEXBEAM MARK IV HD

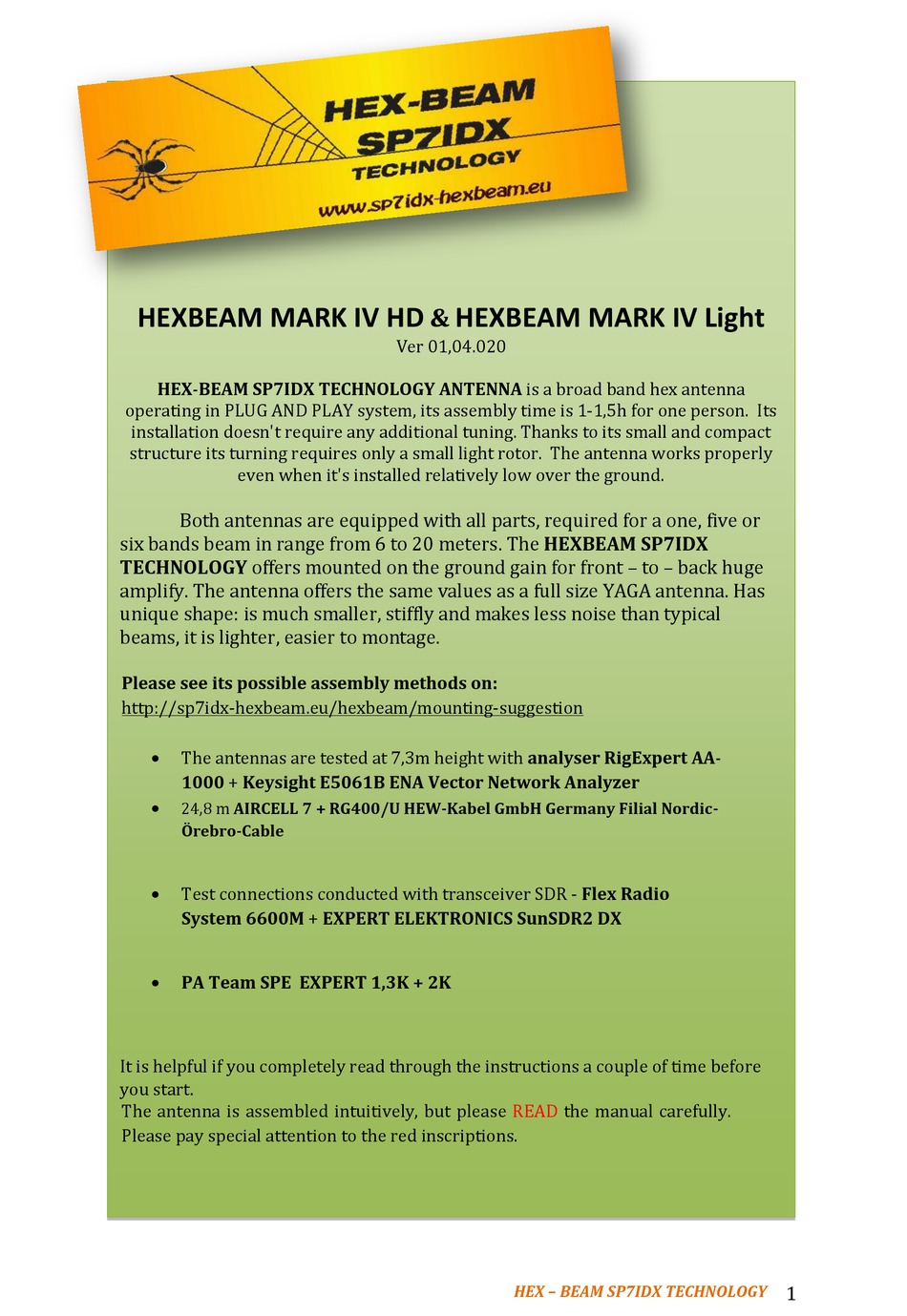

HEX-BEAM SP7IDX TECHNOLOGY ANTENNA is a broad band hex antenna
operating in PLUG AND PLAY system, its assembly time is 1-1,5h for one person. Its
installation doesn't require any additional tuning. Thanks to its small and compact
structure its turning requires only a small light rotor. The antenna works properly
even when it's installed relatively low over the ground.
Both antennas are equipped with all parts, required for a one, five or
six bands beam in range from 6 to 20 meters. The HEXBEAM SP7IDX
TECHNOLOGY offers mounted on the ground gain for front – to – back huge
amplify. The antenna offers the same values as a full size YAGA antenna. Has
unique shape: is much smaller, stiffly and makes less noise than typical
beams, it is lighter, easier to montage.
Please see its possible assembly methods on:
http://sp7idx-hexbeam.eu/hexbeam/mounting-suggestion
The antennas are tested at 7,3m height with analyser RigExpert AA-
1000 + Keysight E5061B ENA Vector Network Analyzer
24,8 m AIRCELL 7 + RG400/U HEW-Kabel GmbH Germany Filial Nordic-
Örebro-Cable
Test connections conducted with transceiver SDR - Flex Radio
System 6600M + EXPERT ELEKTRONICS SunSDR2 DX
PA Team SPE EXPERT 1,3K + 2K
It is helpful if you completely read through the instructions a couple of time before
.
you start
The antenna is assembled intuitively, but please
Please pay special attention to the red inscriptions.
&
HEXBEAM MARK IV Light
Ver 01,04.020
READ
the manual carefully.
HEX – BEAM SP7IDX TECHNOLOGY
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MARK IV HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HEX-BEAM SP7IDX MARK IV HD

Summary of Contents for HEX-BEAM SP7IDX MARK IV HD

  • Page 1 HEXBEAM MARK IV Light Ver 01,04.020 HEX-BEAM SP7IDX TECHNOLOGY ANTENNA is a broad band hex antenna operating in PLUG AND PLAY system, its assembly time is 1-1,5h for one person. Its installation doesn't require any additional tuning. Thanks to its small and compact structure its turning requires only a small light rotor.
  • Page 2 Parcel Arrived...

  • Page 3: Part List

    PART LIST Three types of spreders (poles)  6 pieces - small ones + kevlar lines with S-hooks (6x 1m diameter 12,7mm) #4/8  6 pieces - medium (6x 1,35m diameter 17mm) #5/8  6 pieces - large (6x 1,35m diameter 22mm) #6/8 HEX –...
  • Page 4 this is not a damage or factory defect - it is only covered with a thin transport foil and can be peeled off it is not a defect! transport foil is only for transport and may after some time go away do not worry about it!
  • Page 5 Set of hol dres (wire cleat set):  Size 5 - 6 set  Size 7 - 24 set  Size 9 - 6 set  STORE + Insulating tape - 1 piece – (option) #2/8  Screw 8 x 20 - 4 pieces for hub clamp on rure with centerpost HEX –...
  • Page 7 Down centerhub - mast HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 9 6 sets of electric component (driven+reflector+spacer cords) 6-10-12-15-17-20m #2/8 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 10 Center post + balun (option) -1set #3/8...
  • Page 11 do not change the position of the screw and do not tighten it !!! HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 12 Normal situation centerpost Center plate-1set #1/8 # 7/8 ( or 8/8) polyamide element block clamps 6 set...
  • Page 13 #8/8 (or 7/8) sleeve 6 art HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 15 Centerhub complet +centerpost HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 16 bottom part centerhub...
  • Page 17 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 19 ASSEMBYL INSTRUCTION Step 1. Fix holders on spreaders with 2, 3, 4, 5 and 6 symbols so that they look like on spreaders no.1  6 small poles (1m - 12,7mm) + holders no. 5 - 1 piece per pole ...
  • Page 20 Attention ! correct wire tension adjust with black handle fixing left or right, Do not tighten the wire too much, The wires should be a little slack do not screw it tightly, not the wheel from the car !!! Only minor adjustment is required if any, for proper tension of the wires. Not to tight, not to much sag of the wires.
  • Page 21 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 22 Attention correct wire tension adjust with black handle fixing left or right, Do not tighten the wire too much, do not screw it tightly, not the wheel from the car !!!
  • Page 23 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 25 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 26 Step 2. Place the centre post inside the centre plate so that the UC1 socket was facing the log. As an additional protection against the self-turning of the whole structure the upper flange is equipped with an additional passer-by screw - tight it up carefully! Block the centre plate by turning two set screws located in both flanges - upper and bottom one.
  • Page 27 Step 3. Place the poles in pipes in the centre plate following their numbers on fibreglass spreaders and pipes in the centre plate. Pay attention to places with cut-outs which are inserted into locks in pipes from the centre plate. The poles are marked with numbers and those with the same ones should be stored together.
  • Page 29 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 30 / Block rivet /...
  • Page 31 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 32 Step 4. The assembly and tightening of lines. We start with Kevlar line with S-hook should be fixed in the center post in closed loop. After 6 lines have been fixed in the center post, fasten lines around the perimeter - one to the other - in clockwise direction.
  • Page 33 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 34 Step 5.
  • Page 35 The fixing of bands should begin with the lowest band, i.e. 6M - which is the closest to the centre post. Then 10M, 12M, 15M, 17M and 20M. numbers on centerpost and band 1-20m 2-17m 3-15m 4-12m 5-10m 6-6m The leads have the same band symbols as the centre post. Fix the closed loop on one side of the lead on screw in centre post, then keep putting it through holders on poles until you reach the second screw in the centre post.
  • Page 36 Pay attention to the type of applied washer! Pay much attention during this stage - electric lines cannot be overtightened. You need to feel that they're a bit loose when you touch them, they need to hang down to avoid their breakage during strong wind or snow. To correct the lead tension - loosen or tighten one of the lead holders, two or three pieces - this doesn't affect proper operation of a given band.
  • Page 37 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 39 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 41 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 42 There needs to be a small backlash, the lines should hang down a bit. DO NOT TIGHTEN THEM !!!
  • Page 43 DO NOT MAKE THE WIRES TOO TIGHT. Also too l ose and the wire will drop down and touch the wire below. This is als o not good and will cause the SWR of those two to not be right. You want to kee p the spacing between wires.
  • Page 44 This is how properly bent poles look like...
  • Page 45 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 46 HEXBEAM SP7IDX TECHNOLOGY is very light...
  • Page 47 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 48 Step 5. When the assembly of the antenna is over place it on a mast or other structural work. Please see exemplary installations on my website : http://sp7idx-hexbeam.eu/hexbeam/mounting-suggestion Depending on the target height of the antenna it is advised to use at least one pair of guy ropes which will stabilize the whole structure.
  • Page 49 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 50 For the purpose of outside operation there is a special small mast for HEXBEAM of 7,10 m length.
  • Page 51 For tests and antennas control - MAX6 antenna analyser HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 52 Both products are included in my offer on my website, you’re welcome to visit it. The photos can differ a bit from the actual structure due to implemented structural improvements. If you have any additional questions or think that the structure should be changed or improved, please send me a message.
  • Page 53 DO NOT transmit, even with the aid of a tuner, outside the designed bands. This can cause excessive voltage and arching of the terminals on the center post and replacement is not covered by any warranty. That's it, the assembly is over. Have a nice work with HEX-BEAM SP7IDX TECHNOLOGY Waldi SP7IDX sp7idx@interia.pl www.sp7idx-hexbeam.eu...
  • Page 54 Enclosed you will find my measurements with the RigExpert AA-1000 + Keysight E5061B ENA Vector Network Analyzer through 24,8 m Aircell7. Hexbeam was real 7 + 4,5m above the ground. Remember that this beam is broad-banded so the SWR will remain quite low across each band –...
  • Page 55 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 57 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 59 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 61 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 63 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 65 HEX – BEAM SP7IDX TECHNOLOGY...
  • Page 67 Warranty Antennas HEXBEAM MARK IV HD and Light condition for receiving a plenary indulgence and full warranty! if there is no opinion issued, the warranty tration right! it is only 2-3 minutes devoted to me Sorry to bother you but it is necessary.
  • Page 68 What the Warranty Does Cover 1. Water ingress in the centre post - Lifetime Warranty 2. Centre post failure - Lifetime Warranty 3. Centre hub failure - Lifetime Warranty 4. Double flange failure - Lifetime Warranty 5. Spreaders & Support Cords - Five (5) years What the Warranty Does Not Cover 1.

This manual is also suitable for:
