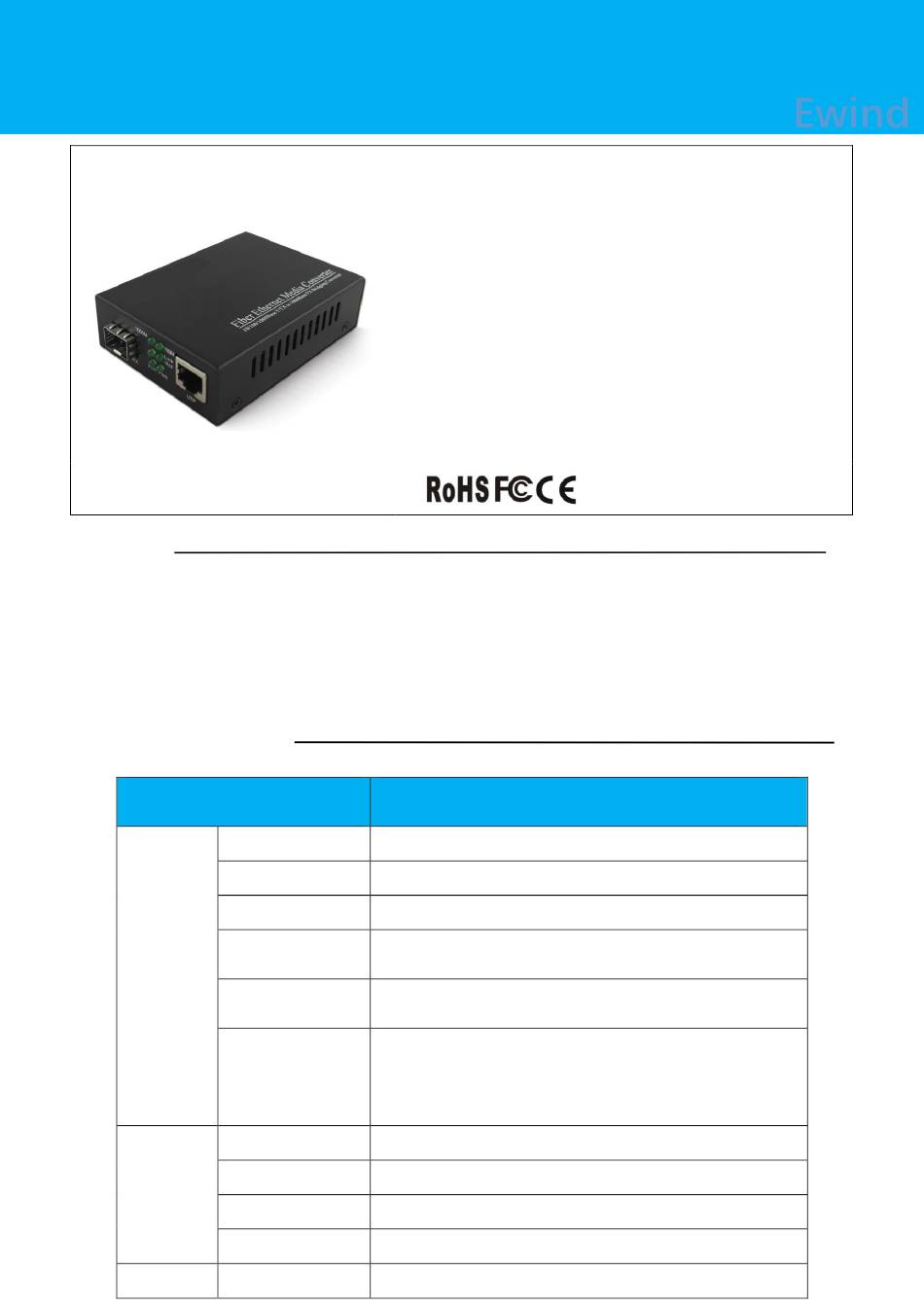

Ewind EW-810SFP-GE Quick Start Manual

1000M Fiber to Rj45 Media Converter
Introduction
The Transceiver converts 100/1000BASE-SX/LX/LH/EX/ZX -fiber to 100/1000Base-T copper media or vice
versa. It is designed for use with 850nm multi-mode/1310nm single-mode/WDM -fiber cable utilizing the
LC-Type connector, transmitting data up to 0.55 kilometers or 100 kilometers. What's more, the SFP to
Ethernet Converter can work as a standalone device (no chassis required) or with EWIND's 19" system
chassis.
TECHNICAL SPECIFICATION
Model
Connector
Data Rate
Optical
Duplex Mode
Interface
Fiber
Distance
Wavelength
Connector
Data Rate
UTP
Interface
Duplex Mode
Cable
Adapter Type
(Model: EW-810SFP-GE)
➢ Works at 100/1000Mbps in Full-Duplex mode for both
TX port and FX port;
➢
Supports Auto MDI/MDIX for TX port;
➢
Provides switch con-gyration of Force /Auto transfer
mode for FX port;
➢
FX port support hot-swappable;
➢
Extends -fiber distance up to 0.55/2km for multi-
mode -fiber and 10/20/40/80/100/120km for single-
mode -fiber;
➢ Easy-to-view LED indicators provide status to monitor
network activity easily;
➢
The Distance support to 20KM;
➢
1x RJ45 port and 1x fiber SFP slot port;
SFP
1000Mbps
Full duplex
MM 50/125um,62.5/125um
SM 9/125um
10/100/1000Mbps:
MM 550m/2km,SM 20/40/60/80km
MM 850nm,1310nm
SM 1310nm,1550nm
WDM Tx1310/Rx1550nm(A side),Tx1550/Rx1310nm(B side)
WDM Tx1490/Rx1550nm(A side),Tx1550/Rx1490nm(B side)
RJ45
10/100/1000Mbps
Half/full duplex
Cat5,Cat6
DC5V
EW-810SFP-GE
Ewind
