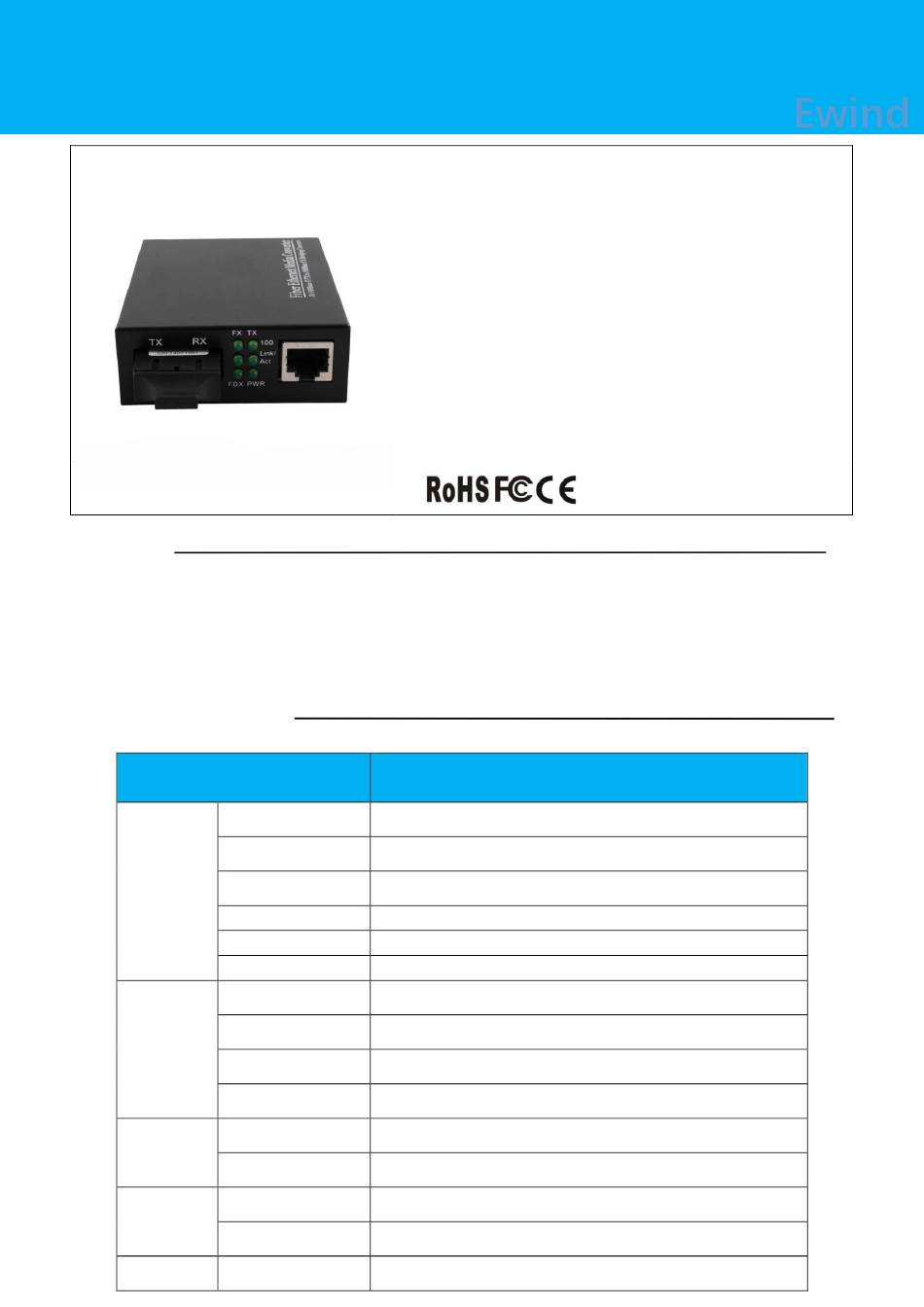

Ewind EW-610SM-20 Quick Start Manual

100M Dual Fiber Media Converter

Introduction

The Transceiver converts 10/100BASE-SX/LX/LH/EX/ZX -fiber to 10/100Base-T copper media or vice versa.
It is designed for use with 850nm multi-mode/1310nm single-mode/WDM -fiber cable utilizing the SC-
Type connector, transmitting data up to 0.55 kilometers or 100 kilometers. What's more, the SFP to
Ethernet Converter can work as a standalone device (no chassis required) or with EWIND's 19" system
chassis.

TECHNICAL SPECIFICATION

Model
Connector
Data Rate
Optical
Duplex Mode
Interface
Fiber
Distance
Wavelength
Connector
Data Rate
UTP
Interface
Duplex Mode
Cable
Adapter Type
Power Input
Power Built-in Type
Adapter Type
Weight
Power Built-in Type
Dimensions Adapter Type
(Model: EW-610SM-20)
➢ Works at 10/100Mbps in Full-Duplex mode for both TX
port and FX port;
➢
Supports Auto MDI/MDIX for TX port;
➢
Provides switch con-gyration of Force /Auto transfer
mode for FX port;
➢
FX port support hot-swappable;
➢
Extends -fiber distance up to 0.55/2km for multi-
mode -fiber and 10/20/40/80/100/120km for single-
mode -fiber;
➢ Easy-to-view LED indicators provide status to monitor
network activity easily;
➢
1x RJ45 port and 1x fiber SC port;
➢
The distance support to 20KM.
Dual Fiber SC port
10/100Mbps
Full duplex
SM 9/125um
20km
1310nm
RJ45
10/100Mbps
Half/full duplex
Cat5, Cat6
DC5V
AC100~240V
0.39kg
0.67kg
94*70.5*26.5cm
EW-610SM-20
