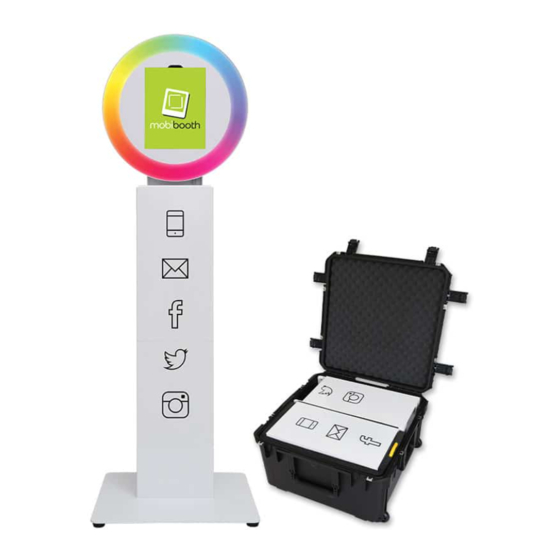

- Page 1 Setup Guide Aura V2 Photo Kiosk Version Date Author Comments 6-22-22 Mark Giesige Initial release...
-
Page 2: Table Of Contents
6. Customize LED Fx ..............14 7. Editing colors ................14 How To pack your Mobibooth Aura™ ..........15 V e r s i o n 1 L a s t m o d i f i e d J u n e 2 2 , 2 0 2 2... -
Page 3: Supported Devices
SUPPORTED DEVICES iPad Models iPad Pro 11-inch (2018) iPad Pro 11-inch (2020) iPad Pro 11-inch (2021) iPad Pro 12.9-inch (2018) iPad Pro 12.9-inch (2020) iPad Pro 12.9-inch (2021) iPad Air (2022) Surface Pro Models Surface Pro 4 Surface Pro 5 Surface Pro 6 V e r s i o n 1 L a s t m o d i f i e d J u n e 2 2 , 2 0 2 2... -
Page 4: Setup Video & Tools
SETUP VIDEO & TOOLS Setup video available at: https://mobibooth.co/aura/assemble In this video we cover: • What parts are included with your photo booth. • How to attach the baseplate. • How to stack and secure vertical tubes. • How to connect power cords. -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS 1. UNPACK PARTS Unpack the top tube, bottom tube and baseplate carefully placing parts on the floor. Remove the hardware bag (black velvet pouch) from the case. Flip bottom tube upside down and place baseplate on top. 2. ATTACH BASEPLATE Install and tighten 4 bolts snugly (do not over tighten) -
Page 6: Flip Lower Assembly
3. FLIP LOWER ASSEMBLY Pull the power cord from the bottom of the tube. Flip the assembly over so that the baseplate is now on the ground. 4. CONNECT POWER CABLES BETWEEN TUBES Ensure that all power cords and blocks are securely installed in the power strips within the lower... -
Page 7: Install The Top Tube
Connect the ring light power cord to the power block in the top tube. Plug the iPad USB power cord into the white power block. 5. INSTALL THE TOP TUBE Place the top tube onto the bottom tube with aligning green dots. -
Page 8: Install Four Tube Bolts
6. INSTALL FOUR TUBE BOLTS Install and tighten four bolts to secure the top tube to the bottom tube. Tighten bolts snug being careful to not over tighten them. 7. ATTACH HEAD ASSEMBLY Feed the wiring pigtail through the oval opening in the top of the pivoter. -
Page 9: Fasten Head Assembly
Attach the head assembly using the two front guide pins to line up the bolt holes. 8. FASTEN HEAD ASSEMBLY Install and tighten two bolts at the rear of the head assembly base to secure it to the pivoter. V e r s i o n 1 L a s t m o d i f i e d J u n e 2 2 , 2 0 2 2 P a g e... -
Page 10: Connect Power Cords
9. CONNECT POWER CORDS Push the head assembly forward to maximum forward angle to access the head pigtail and pivoter pigtail. Connect power cords for light (barrel connector) and iPad (USB-C). 10. POWER UNIT Plug the extension cord into a standard 120 VAC outlet. -
Page 11: Bluetooth App Connectivity
Mobibooth Cloud™ app please visit https://youtu.be/ZLcw93qNcTs. 1. OPEN THE CLOUD APP Open the Mobibooth Cloud™ by tapping the app icon on the iPad’s screen. 2. LOG INTO YOUR ACCOUNT Mobi Log into the app using your Mobibooth Cloud credentials. If you have not created an account, you can do so at https://cloud.mobibooth.co. -
Page 12: Open Rgb Leds
These settings will be the default behavior for all events synced to the app. The Mobibooth Cloud app allows you to create custom LED Fx configurations for each event synced to the app. To access the... -
Page 13: Enable Connect To Bluetooth
4. ENABLE CONNECT TO BLUETOOTH This will cause the app to scan for a Mobibooth Bluetooth controller to connect to. Once connected the controller ID will be displayed below the word “connected”. 5. EDIT APP MODES Once connected to the Bluetooth... -
Page 14: Customize Led Fx
6. CUSTOMIZE LED FX There are currently 13 LED Fx patterns that are supported. Each can have a number of parameters customized including speed, delay and color. Tapping Preview will display the current settings without saving them. Tap Save to save parameter changes. -
Page 15: How To Pack Your Mobibooth Aura
HOW TO PACK YOUR MOBIBOOTH AURA™ 1. Make sure 2. Place head case is on assembly a level in bottom surface. of case. surface. 3. Place 4. Place square baseplate foam pad in next. on top of diffuser. 5. Place 6.
