Summary of Contents for PRISM+ PG240

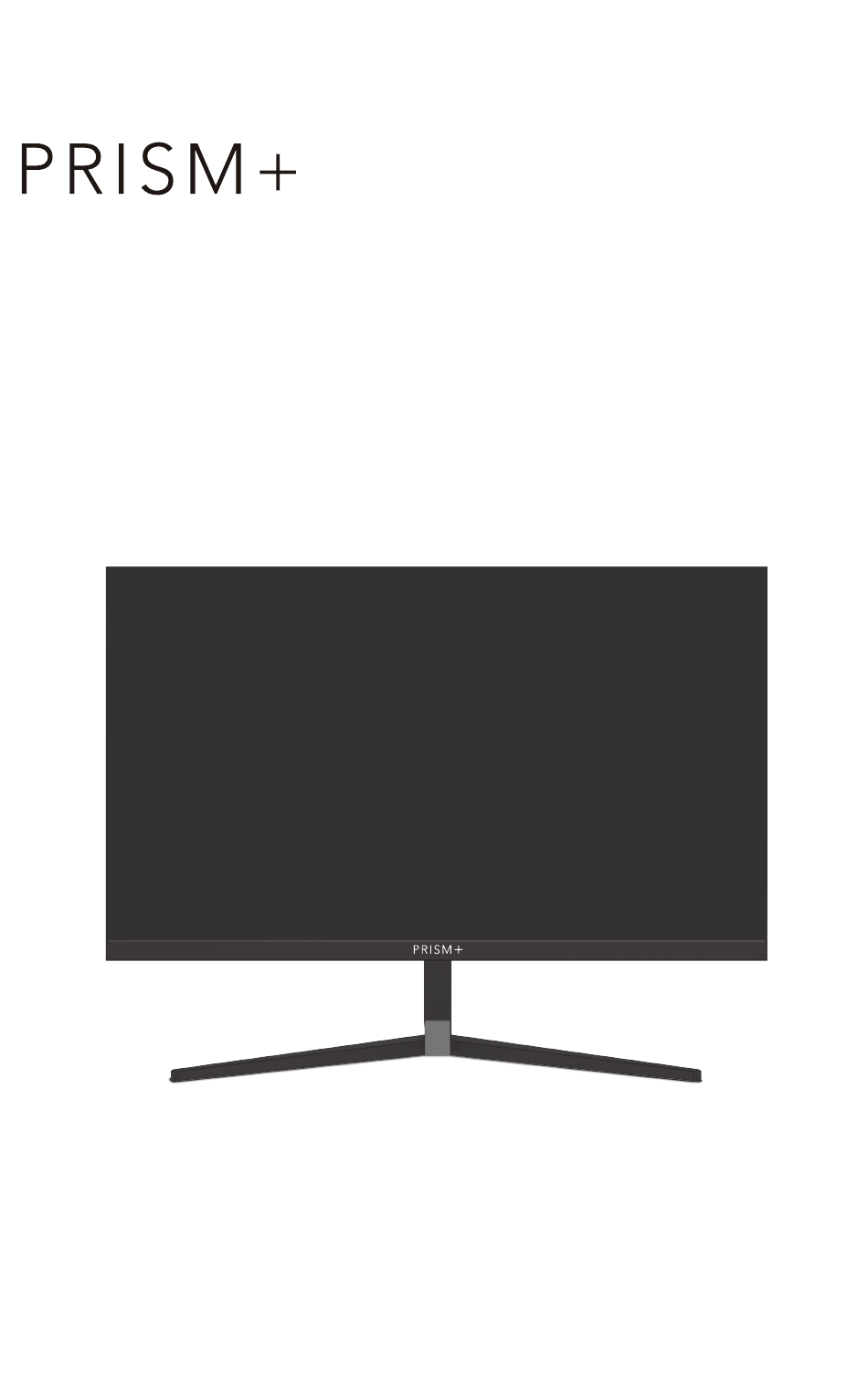

  • Page 1 PG240 User Manual...

  • Page 3: Table Of Contents

    Table of Contents Section 1: Safety Precautions ............. 4 Section 2: Box Contents .............. 5 Section 3: Product Overview ............6 3.1 – Monitor Buttons ............... 6 3.2 – Monitor Ports ..............6 Section 4: Stand Installation ............7 Section 5: Mount Installation ............9 Section 6: Connectivity Options ..........

  • Page 4: Section 1: Safety Precautions

    Section 1: Safety Precautions Read and observe the following warnings and information below. 1. Please disconnect the power plug before cleaning the product. It is recommended to wipe the monitor with a clean, soft and dry cloth. If using a damp cloth, kindly ensure that your monitor is dry before connecting the power plug.

  • Page 5: Section 2: Box Contents

    Section 2: Box Contents Monitor x 1 Stand Stem x 1 Stand Base x 1 Screws*23mm x 5 Screws*12mm x 3 PG240 User Manual Power Adapter x 1 DP Cable x 1 User Manual x 1 (DC 12V, 4 A)

  • Page 6: Section 3: Product Overview

    Section 3: Product Overview 3.1 – Monitor Buttons M Menu Button: Press to display the OSD menu or enter sub-menus. Up Button: Press to navigate up in the menus. Down Button: Press to navigate down in the menus. E Exit Button: Press to exit. Power Button: Press to turn on/off the monitor.

  • Page 7: Section 4: Stand Installation

    Section 4: Stand Installation Keep the foam underneath the monitor before attaching the stand. 1. Open the packaging, gently take out the foam and monitor. 2. Remove the upper foam, keep the monitor laying on the nether foam. 3. Take out the stand stem and stand base and fasten them with 2pcs of 12mm screws. ( Screws are in the accessory bag )
  • Page 8 4. Insert the stem to the slot of back cover, then lock with 4pcs of 23mm screws. ( Screws are in the accessory bag ) 5. Gently lift the monitor up and enjoy using it.

  • Page 9: Section 5: Mount Installation

    Section 5: Mount Installation 1. Open the packaging, gently take out the foam and monitor. 2. Remove the upper foam, keep the monitor laying on nether foam. 3. Take out 4pcs of Spacer Screw*25mm (VESA Connector); in the accessory bag and lock them in back cover with a straight screwdriver.

  • Page 10: Section 6: Connectivity Options

    Section 6: Connectivity Options 6.1 – Connecting Your Earphones Plug in your earphones to receive audio signals from your monitor. If you have an audio device connected to your computer when you connect your earphones to the monitor, the audio devices will not produce sound. Earphones and other audio devices are not included.

  • Page 11: Connecting The Power Cable

    6.3 – Connecting the Power Cable Connect the included power cable to the power connector and then plug the other end into wall outlet. Power Cable 6.4 – HDMI Connectivity For the monitor to receive HDMI signals from the computer, use an HDMI cable to connect the monitor to the computer.

  • Page 12: Section 7: Basic Operation

    Section 7: Basic Operation 1. Insert one end of the DP cable into your PC’s graphics card. A HDMI cable may also be used. HDMI cable is not included. 2. Connect the other end of the cable to the corresponding connector on your monitor.

  • Page 13: Section 9: On-Screen Display (Osd)

    Section 9: On-Screen Display (OSD) The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button. When using the monitor for the rst time, settings will automatically adjust to optimal settings according to your computer’s con guration and parts etc.

  • Page 14: Osd Menu Functions

    9.1 – OSD Menu Functions Main Menu Sub-Menu Options Description BRIGHTNESS Brightness Adjust display brightness 0~100 Contrast Adjust display contrast 0~100 Set visual mode Standard , Game , RTS , FPS , Movie, Text Turn On DCR function Turn Off DCR function IMAGE H.
  • Page 15 Main Menu Sub-Menu Options Description Reset Reset monitor configurations RESET MISC Signal source HDMI 1 , HDMI 2 , DP Display the input signal Adjust audio volume Volume 0-100 Low blue ray Set blue light filtering level 0-100 High,Middle,Low,Off Set the Overdriver function OVER DRIVER OFF,Normal,Flicker LED EFFECT...

  • Page 16: Section 10: Eco Modes And Gameplus Switching

    Section 10: ECO Modes and Gameplus Switching • Press any one of the buttons (M, , E, ) to activate the navigation window. • Press to switch Gameplus modes. According to the needs of your game, choose the corresponding game icon. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios.

  • Page 17: Section 11: Speci Cations

    Section 11: Speci cations Item Detail Model Number PG240 Screen Size 23.8” Curvature FLAT Viewing Angle 178°(H); 178°(V) Aspect Ratio 16:9 Resolution DP1.2: 1920x1080@165Hz HDMI2.0: 1920x1080@120Hz Backlight E-LED Typical Brightness 300cd/m Default Color Temp. 6500 Contrast Ratio 1000:1 (Static) Response Time (GTG)
  • Page 19 108.007.12901 SF2EG PG240 PRISM+ 2020.11.13 140x210mm 120g双铜版纸 单色印刷 骑马钉 feihong *封二不要印刷内容...
