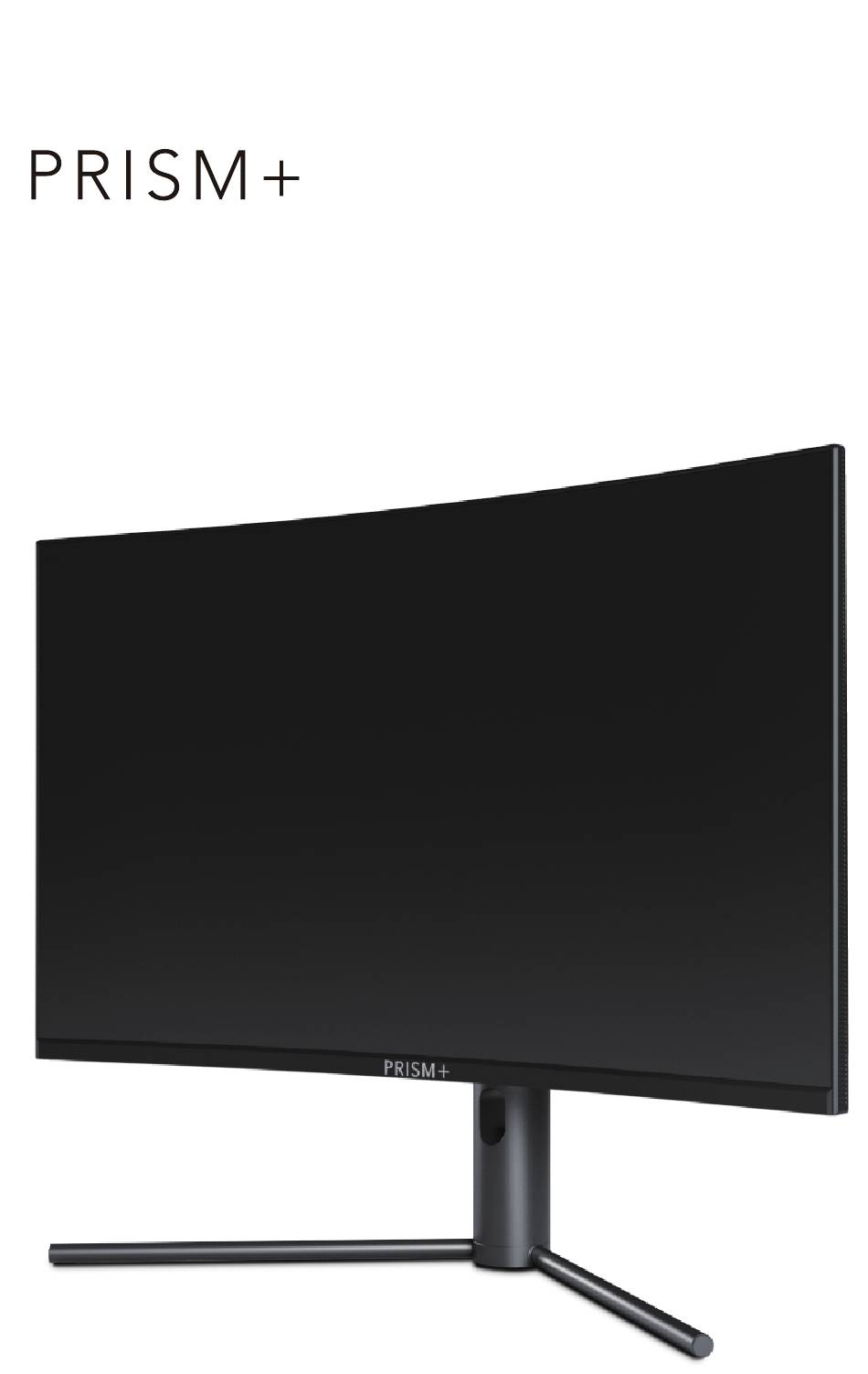

- Page 1 XQ315 PRO User Manual...
-
Page 3: Table Of Contents
Table of Contents Section 1: Safety Precautions ............. 4 Section 2: Box Contents .............. 5 Section 3: Product Overview ............6 3.1 – Monitor Buttons ............... 6 3.2 – Monitor Ports ..............6 Section 4: Stand Installation ............7 Section 5: Mount Installation ............9 Section 6: Connectivity Options .......... -
Page 4: Section 1: Safety Precautions
Section 1: Safety Precautions Read and observe the following warnings and information below. 1. Please disconnect the power plug before cleaning the product. It is recommended to wipe the monitor with a clean, soft and dry cloth. If using a damp cloth, kindly ensure that your monitor is dry before connecting the power plug. -
Page 5: Section 2: Box Contents
Section 2: Box Contents Stand Stem x 1 Screws*11mm x 3 Spacer Screws*35mm x 4 (for stand installation) (VESA Connector) XQ315 PRO User Manual DP Cable x 1... -
Page 6: Section 3: Product Overview
Section 3: Product Overview 3.1 – Monitor Buttons M Menu Button: Press to display the OSD menu or enter sub-menus. Down Button: Press to navigate down in the menus. Up Button: Press to navigate up in the menus. E Exit Button: Press to exit. Power Button: Press to turn on/off the monitor. -
Page 7: Section 4: Stand Installation
Section 4: Stand Installation Place the upper and lower foam on the table and place the monitor on top of the foam. lower foam upper foam Push the click button and remove the shaft assembly as shown below. shaft assembly... - Page 8 Take out the shaft assembly and stand stem. Fasten it with two 11mm screws as shown in the picture. Then fasten the stand stem and stand base with one 11mm screw. Based on the picture below, place the well assembled stand to the corresponding slot at the back cover and ensure the rotation shaft is well attached to the monitor.
-
Page 9: Section 5: Mount Installation
Section 5: Mount Installation VESA and mounting accessories are not included. Open the package, remove the foam from the monitor, and place the monitor on the foam on a stable, flat table. Remove the shaft assembly. shaft assembly Take out the four hexagonal spacer screws with a height of 35mm from the accessory bag, and fasten them into the M4 threaded hole of the rear tank sinking slot with a screwdriver (not included). -
Page 10: Section 6: Connectivity Options
Section 6: Connectivity Options 6.1 – Connecting Your Earphones Plug in your earphones to receive audio signals from your monitor. If you have an audio device connected to your computer when you connect your earphones to the monitor, the audio devices will not produce sound. Earphones and other audio devices are not included. -
Page 11: Connecting The Power Cable
6.3 – Connecting the Power Cable Connect the included power cable to the power connector and then plug the other end into a wall outlet. 6.4 – HDMI Connectivity For the monitor to receive HDMI signals from the computer, use an HDMI cable to connect the monitor to the computer. -
Page 12: Section 7: Basic Operation
Section 7: Basic Operation 1. Insert one end of the DP cable into your PC’s graphics card. A HDMI cable may also be used. HDMI cable is not included. 2. Connect the other end of the cable to the corresponding connector on your monitor. -
Page 13: Section 9: On-Screen Display (Osd)
Section 9: On-Screen Display (OSD) The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button. When using the monitor for the rst time, settings will automatically adjust to optimal settings according to your computer’s con guration and parts etc. -
Page 14: Osd Menu Functions
9.1 – OSD Menu Functions Main Menu Sub-Menu Options Description Input Source NONE Switch to DP signal input DP 2 HDMI 1 NONE Switch to HDMI signal input HDMI 2 Brightness/ Brightness 0~100 Adjust display brightness Contrast Blacklevel 0~100 Adjust display black level Contrast 0~100 Adjust display contrast... - Page 15 Main Menu Sub-Menu Options Description Audio Mute On, Off Turn mute mode on/off Volume 0-100 Adjust audio volume Audio Source DP 1, DP 2, Select audio signal input via HDMI or DP HDMI 1, HDMI 2 Multi-Window Multi-Window Off, PIP Mode, Select PIP/PBP modes according to the PBP 2Win number of input signals etc.
-
Page 16: Section 10: Eco Modes And Gameplus Switching
Section 10: ECO Modes and Gameplus Switching Press any one of the buttons (M, , E, ) to activate the navigation window. 2. Press button to switch Gameplus modes. Choose the crosshair icon best suited for your game. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios. -
Page 17: Section 11: Speci Cations
Section 11: Speci cations Item Detail Model Number XQ315 PRO Screen Size 31.5” Curvature 1500R Viewing Angle 178°(H); 178°(V) Aspect Ratio 16:9 Resolution DP1.4: 2560x1440@165Hz HDMI2.0: 2560x1440@144Hz Backlight E-LED Typical Brightness 400 cd/m Default Color Temp. 6500 Contrast Ratio 3,000:1 (Static)
