VTRIX SWB41MV Manual

Seamless uhd video switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

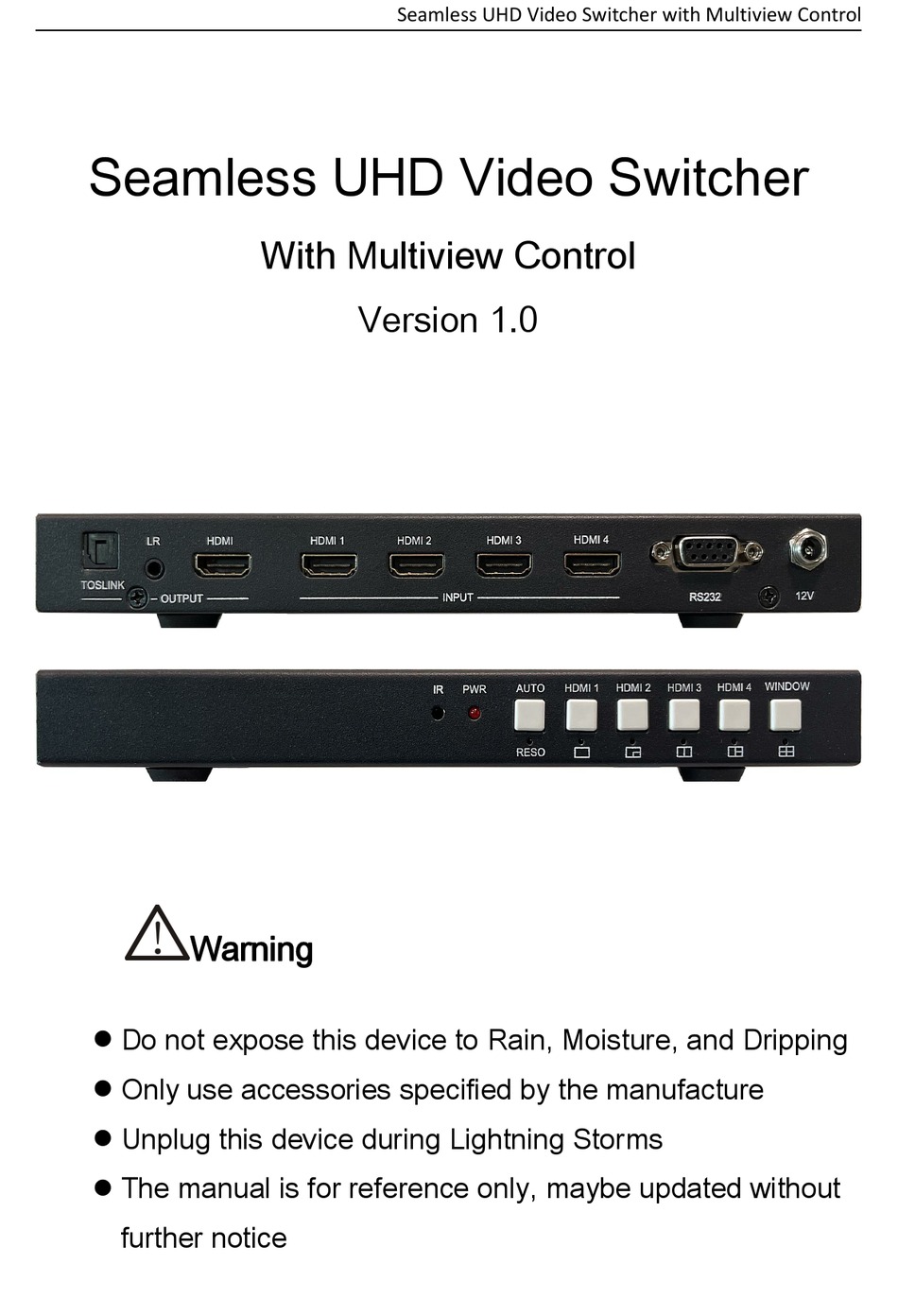

Seamless UHD Video Switcher with Multiview Control
Seamless UHD Video Switcher
With Multiview Control
Version 1.0
Warning
 Do not expose this device to Rain, Moisture, and Dripping
 Only use accessories specified by the manufacture
 Unplug this device during Lightning Storms
 The manual is for reference only, maybe updated without
further notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWB41MV and is the answer not in the manual?

Questions and answers

Related Manuals for VTRIX SWB41MV

Summary of Contents for VTRIX SWB41MV

  • Page 1 Seamless UHD Video Switcher with Multiview Control Seamless UHD Video Switcher With Multiview Control Version 1.0 Warning  Do not expose this device to Rain, Moisture, and Dripping  Only use accessories specified by the manufacture  Unplug this device during Lightning Storms ...

  • Page 2: Table Of Contents

    Seamless UHD Video Switcher with Multiview and KVM Control Content FEATURES PANEL LAYOUT REMOTER EDID AND HDCP HANDLE VIDEO AND AUDIO MULTIVIEW OSD MENU NAVIGATION SPECIFICATION PACKAGE CONTENTS RS232 COMMAND System command Switching command, only available on SINGLE mode Output command Multiview command Audio command EDID command...

  • Page 3: Features

    Seamless UHD Video Switcher with Multiview and KVM Control Introduction The 4x Inputs and 1x Output seamless multiview video switcher was developed for the purpose of multiple sources displayed on a single screen and supporting high input and output resolutions. User can easily manage it via the front buttons, remoter, USB or RS232 commands.

  • Page 4: Panel Layout

    Seamless UHD Video Switcher with Multiview and KVM Control 2. Panel Layout Front Name Description Press AUTO button to enable or disable auto switching function AUTO, when work on single window display mode RESO Long press this button for 3 seconds to change the output resolution Press these buttons to direct select HDMI 1, 2, 3, 4 to display.
  • Page 5 Seamless UHD Video Switcher with Multiview and KVM Control Default baud rate 9600, 8 data bits, 1 stop bit, no parity PIN 2 TX ( Matrix → PC) PIN 3 RX (Rx( Matrix ←PC ) RS232 control 12V power adapter to plug in Side There are one USB-A port and one USB-B port...

  • Page 6: Remoter

    Seamless UHD Video Switcher with Multiview and KVM Control 3. Remoter Number Description Return/Exit Video input selection OSD menu navigation Menu (Enter),UP, DOWN, LEFT,RIGHT Multiview mode selection Audio input selection Reserved 4. EDID and HDCP handle User can select following EDID modes by RS232 command or OSD menu navigation Number EDID mode Number...

  • Page 7: Video And Audio

    Seamless UHD Video Switcher with Multiview and KVM Control 5. Video and Audio The switcher support multiple resolution video input up to 3840x2160@60, and support multiple audio format such as LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 channel pass through function via HDMI cable User can control the audio volume when the audio input is LPCM format The switcher support following video output resolution by a powerful scaling engine Number...
  • Page 8 Seamless UHD Video Switcher with Multiview and KVM Control Resolution 3840x2160p60 3840x2160p60,… BLACKSCREEN, BLACKSCREEN, Output BLUESCREEN 4K-Auto ON,OFF ON,OFF Single Input select HDMI1, … Win1 Select HDMI1,… Win2 Select HDMI1,… PIP Position RightBottom,… PIP Size SMALL,… Win1 Select HDMI1,… Win2 Select HDMI1,…...

  • Page 9: Specification

    Seamless UHD Video Switcher with Multiview and KVM Control 38400,57600, 115200 Reset FW Version Read only Please note, for ITC setting, suggest OFF for video display and ON for PC especially desktop display, default setting is OFF 8. Specification Band Width 594MHz (18Gbps), HDMI 2.0, HDCP2,2 LPCM, AC3, DD+, DTS, DTS-HD Audio Format...

  • Page 10: Rs232 Command

    Seamless UHD Video Switcher with Multiview and KVM Control 10. RS232 command Note: All the commands begin with SET or GET, end with Carriage Return (CR).  Represents Carriage Return (CR). All return messages are always end with CR. System command Command Details GET HELP...

  • Page 11: Output Command

    Seamless UHD Video Switcher with Multiview and KVM Control Output command Commands Details w is one of the following, default: 3840x2160p60 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 3840x2160p25, SET OUT RESOLUTION w 1920x1200p60RB, 1920x1080p60, 1920x1080p50, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60 Return: OUT RESOLUTION w Get current output resolution setting GET OUT RESOLUTION...
  • Page 12 Seamless UHD Video Switcher with Multiview and KVM Control Get the current Multiview mode GET MULTIVIEW Return: MULTIVIEW w Select one input for one display window for the current Multiview mode. x is one of 1, 2, 3 or 4 SET WINDOWx IN y...
  • Page 13 Seamless UHD Video Switcher with Multiview and KVM Control Return: PBP ASPECT w GET PBP ASPECT Return: PBP ASPECT w Set the 3xWIN display mode w is one of 1 or 2, default 1 SET 3xWIN MODE w Return: 3xWIN MODE w GET 3xWIN MODE...

  • Page 14: Audio Command

    Seamless UHD Video Switcher with Multiview and KVM Control Return: 4xWIN ASPECT w GET 4xWIN ASPECT Return: 4xWIN ASPECT w Audio command Commands Details w is one of the following: SET AUDIO SOURCE w WIN1, HDMI1, HDMI2, HDMI3, HDMI4 Return: AUDIO SOURCE w GET AUDIO SOURCE...

  • Page 15: Edid Command

    Seamless UHD Video Switcher with Multiview and KVM Control EDID command The following commands are used to set EDID mode for the inputs Commands Details w is one of the following: 4K60-2.0, 4K60-5.1, 4K60-7.1, 4K30-2.0, 4K30-5.1, 4K30-7.1, 1080p60-2.0,1080p60-5.1, SET IN EDIDMODE w 1080p60-7.1,1920x1200, 1680x1050, 1600x1200, 1440x900, 1360x768, 1280x1024, 1024x768, 720p, AUTO...
