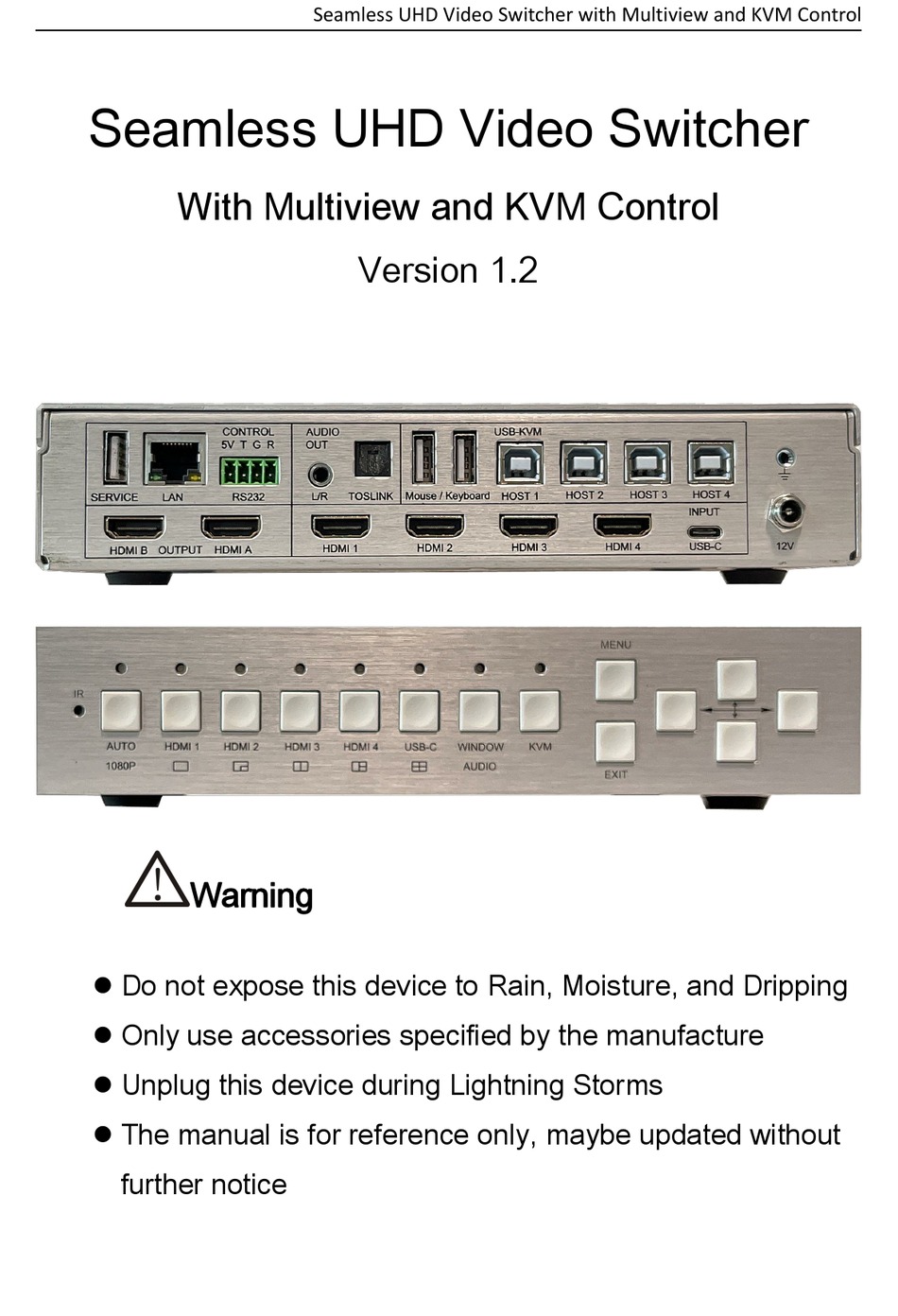

Seamless UHD Video Switcher with Multiview and KVM Control
Seamless UHD Video Switcher
With Multiview and KVM Control
Version 1.2
Warning
Do not expose this device to Rain, Moisture, and Dripping
Only use accessories specified by the manufacture
Unplug this device during Lightning Storms
The manual is for reference only, maybe updated without
further notice
Advertisement
Table of Contents
Related Manuals for VTRIX SWB512MV
Summary of Contents for VTRIX SWB512MV
- Page 1 Seamless UHD Video Switcher with Multiview and KVM Control Seamless UHD Video Switcher With Multiview and KVM Control Version 1.2 Warning Do not expose this device to Rain, Moisture, and Dripping Only use accessories specified by the manufacture ...
-
Page 2: Table Of Contents
Seamless UHD Video Switcher with Multiview and KVM Control Content FEATURES PANEL LAYOUT REMOTER EDID AND HDCP HANDLE VIDEO AND AUDIO MULTIVIEW KEYBOARD KVM SELECTION OSD MENU NAVIGATION SPECIFICATION PACKAGE CONTENTS RS232 COMMAND System and IP command Switching command, only available on SINGLE mode Output command Multiview command Audio command... -
Page 3: Features
Seamless UHD Video Switcher with Multiview and KVM Control Introduction The 5x Inputs and 2x Outputs seamless multiview video switcher with USB-KVM control was developed for the purpose of multiple sources displayed on a single screen and supporting high input and output resolutions. The switcher can combine up to four video signals onto a single UHD or HD displayer. -
Page 4: Panel Layout

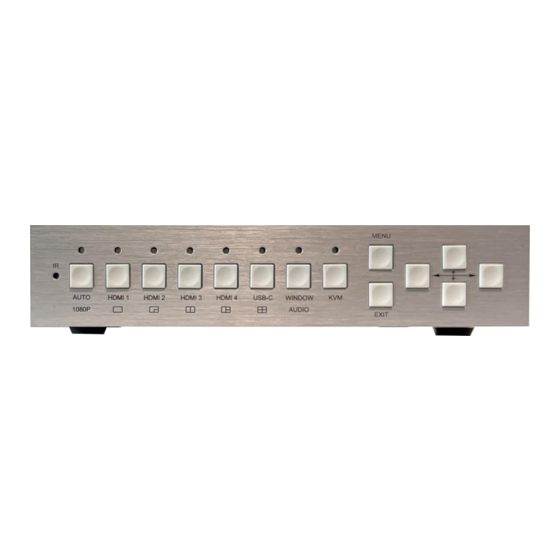

Seamless UHD Video Switcher with Multiview and KVM Control 2. Panel Layout Front Name Description Press AUTO button to enable or disable auto switching function when single window display mode AUTO Long press this button for 3 seconds will change the output resolution to 1080p60 Press these buttons to direct select HDMI 1, 2, 3, 4 or USB-C HDMI 1, HDMI 2... - Page 5 Seamless UHD Video Switcher with Multiview and KVM Control Rear Name Description HDMI scaling output up to 3840x2160@60 HDMI A, B out HDMI A is the main output INPUTs HDMI 1, HDMI 2, HDMI 3, HDMI 4, USB-C(Video only) USB-Service Used for firmware update TCP/IP control.
-
Page 6: Remoter
Seamless UHD Video Switcher with Multiview and KVM Control 3. Remoter Number Description Return/Exit Video input selection OSD menu navigation Menu (Enter),UP, DOWN, LEFT,RIGHT Multiview mode selection Audio input selection USB-KVM selection. The same with the front KVM button function 4. -
Page 7: Video And Audio
Seamless UHD Video Switcher with Multiview and KVM Control 5. Video and Audio The switcher support multiple resolution video input up to 3840x2160@60, and support multiple audio format such as LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 channel pass through function via HDMI cable User can control the audio volume when the audio input is LPCM format Please note, USB-C input port can only accept LPCM 2.0 audio The switcher support following video output resolution by a powerful scaling engine... -
Page 8: Keyboard Kvm Selection
Seamless UHD Video Switcher with Multiview and KVM Control 7. Keyboard KVM selection Besides front button, remoter and RS232 commands, Keyboard can do KVM selection too. For all these selection, there will be a border on the selected window. For example: Press Ctrl + Ctrl + 1 (2, 3, or 4) in sequence Select WIN1 as KVM source 8. - Page 9 Seamless UHD Video Switcher with Multiview and KVM Control Win3 Select HDMI1,… Win4 Select HDMI1,… MODE 1, 2 Aspect Full,16:9 Audio Select WIN1 WIN1,HDMI1,… Volume 0..100 AUDIO AUDIO-MUTE ON, OFF Language/语言 English English, 中文 EDID 4K60-2.0 4K60-2.0,… USB Roaming ON, OFF 9600, 19200, System Baud rate...
-
Page 10: Specification
Seamless UHD Video Switcher with Multiview and KVM Control 9. Specification Band Width 594MHz (18Gbps), HDMI 2.0, HDCP2,2 LPCM, AC3, DD+, DTS, DTS-HD Audio Format Up to 7.1 channel Input ports 4x HDMI, 1x USB-C, 4x USB-B (Host) 2x HDMI, 2x USB-A (Device), Output ports 1x 3.5mm LR audio, 1x Toslink digital audio... -
Page 11: Rs232 Command
Seamless UHD Video Switcher with Multiview and KVM Control 11. RS232 command Note: All the commands begin with SET or GET, end with Carriage Return (CR). Represents Carriage Return (CR). All return messages are always end with CR. System and IP command Command Details GET HELP... -
Page 12: Output Command
Seamless UHD Video Switcher with Multiview and KVM Control w is one of the following: SET IN SOURCE w HDMI1, HDMI2, HDMI3, HDMI4, USB-C Return: IN SOURCE w Get current input channel selection information GET IN SOURCE Return: IN SOURCE w Get current input resolution GET IN RESOLUTION... -
Page 13: Multiview Command
Seamless UHD Video Switcher with Multiview and KVM Control GET OUT HDCP Return: OUT HDCP w w is BLUESCREEN or BLACKSCREEN. SET OUT VKA w Default BLACKSCREEN. It is for no signal display Return: OUT VKA w GET OUT VKA Return: OUT VKA w SET OUT ITC w... - Page 14 Seamless UHD Video Switcher with Multiview and KVM Control SET PIP SIZE w w is one of the following, default LARGE SMALL,MIDDLE, LARGE Return: PIP SIZE w GET PIP SIZE Return: PIP SIZE w Set the PBP display mode SET PBP MODE w w is one of 1 or 2, default 1 Return: PBP MODE w GET PBP MODE...
-
Page 15: Audio Command
Seamless UHD Video Switcher with Multiview and KVM Control GET 3xWIN ASPECT Return: 3xWIN ASPECT w Set the 4xWIN display mode SET 4xWIN MODE w w is 1 or 2 ,default 1 Return: 4xWIN MODE w GET 4xWIN MODE Return: 4xWIN MODE w Set the 4xWIN window display aspect SET 4xWIN ASPECT w... -
Page 16: Kvm Command
Seamless UHD Video Switcher with Multiview and KVM Control Mute or unmute audio output SET AUDIO-MUTE w Here w is ON or OFF, default OFF Return: AUDIO-MUTE w GET AUDIO-MUTE Return: AUDIO-MUTE w KVM command Commands Details w is one of WIN1, WIN2, WIN3, WIN4 SET KVM w... -
Page 17: Common Troubleshooting
Seamless UHD Video Switcher with Multiview and KVM Control 12. Common troubleshooting Q: Why no image displayed on screen? A: Please check if the switcher output resolution is set to 4K and 4K-AUTO setting is OFF. If the setting like this and the displayer doesn’t support 4K, the issue should happened, then please long press front Auto button to change the output resolution to 1080p and change 4K-AUTO to ON Q: Why no audio heard?
