900# PWC LIFT DIRECTIONS
2
54 1/2" cross bar
8
3/8" x 2 1/2" hex head bolt
4
3/8" x 1 1/4" hex head bolt
12
3/8" brass nylock
24
3/8" flat washer

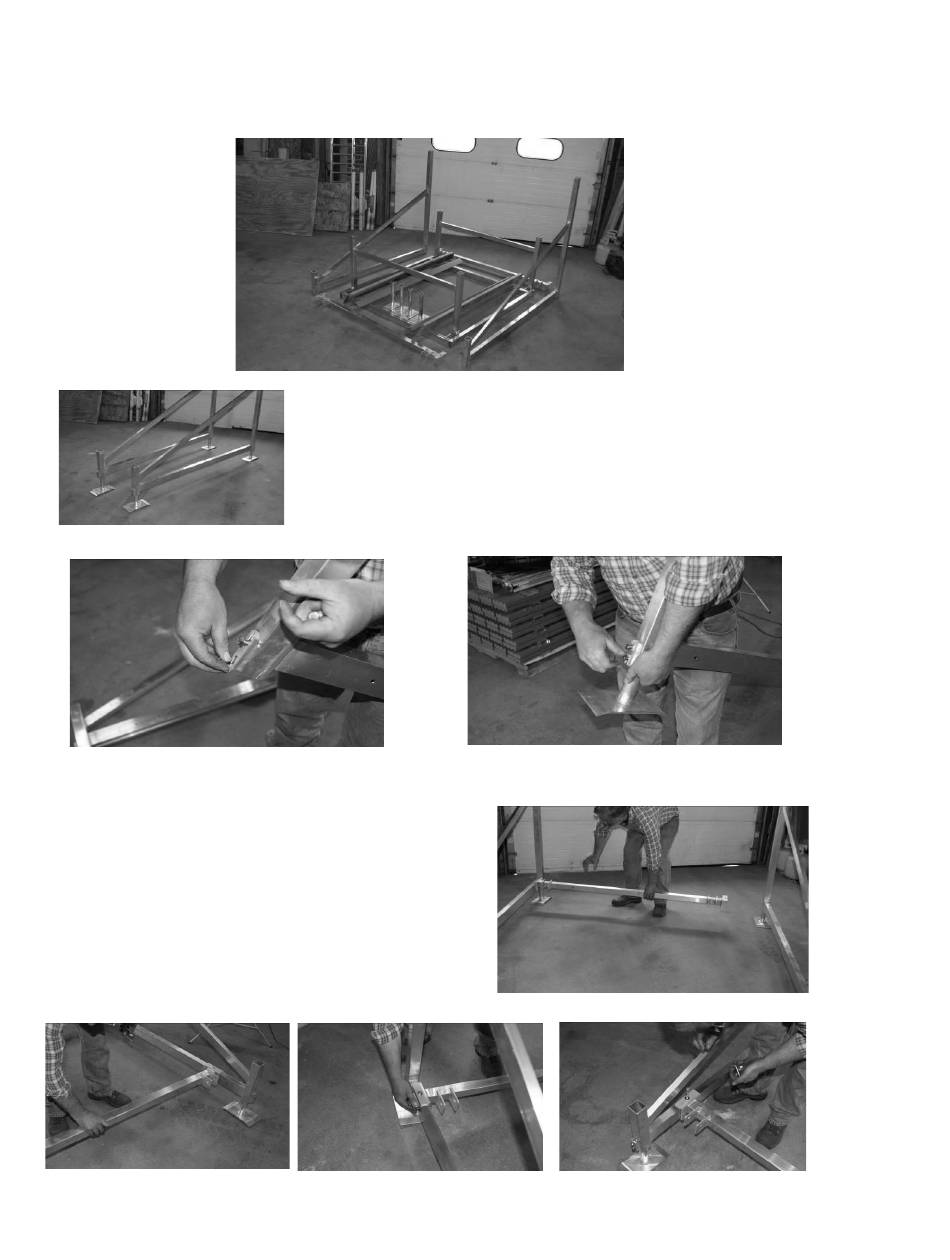

Position frames so the offset hole on the 5' upright
faces in to the middle. Place cross bars between frames
with lifting tabs facing the rear. Position on frame aligning
with predrilled holes, insert bolts and tighten
SHORE SIDE DOCKS
2
4
8
8
Slide legs into the leg pockets at bottom of frame.
Using the sq. nut and 1" bolts, slide
nuts into the channel and tighten
leg, measure legs so frames sit level
CROSS BAR
508-248-9933
RJIND@VERIZON.NET
SHORESIDEDOCKS.COM
welded side frames
12" legs
3/8" x 1" hex head bolt
3/8" square galv. Nut
