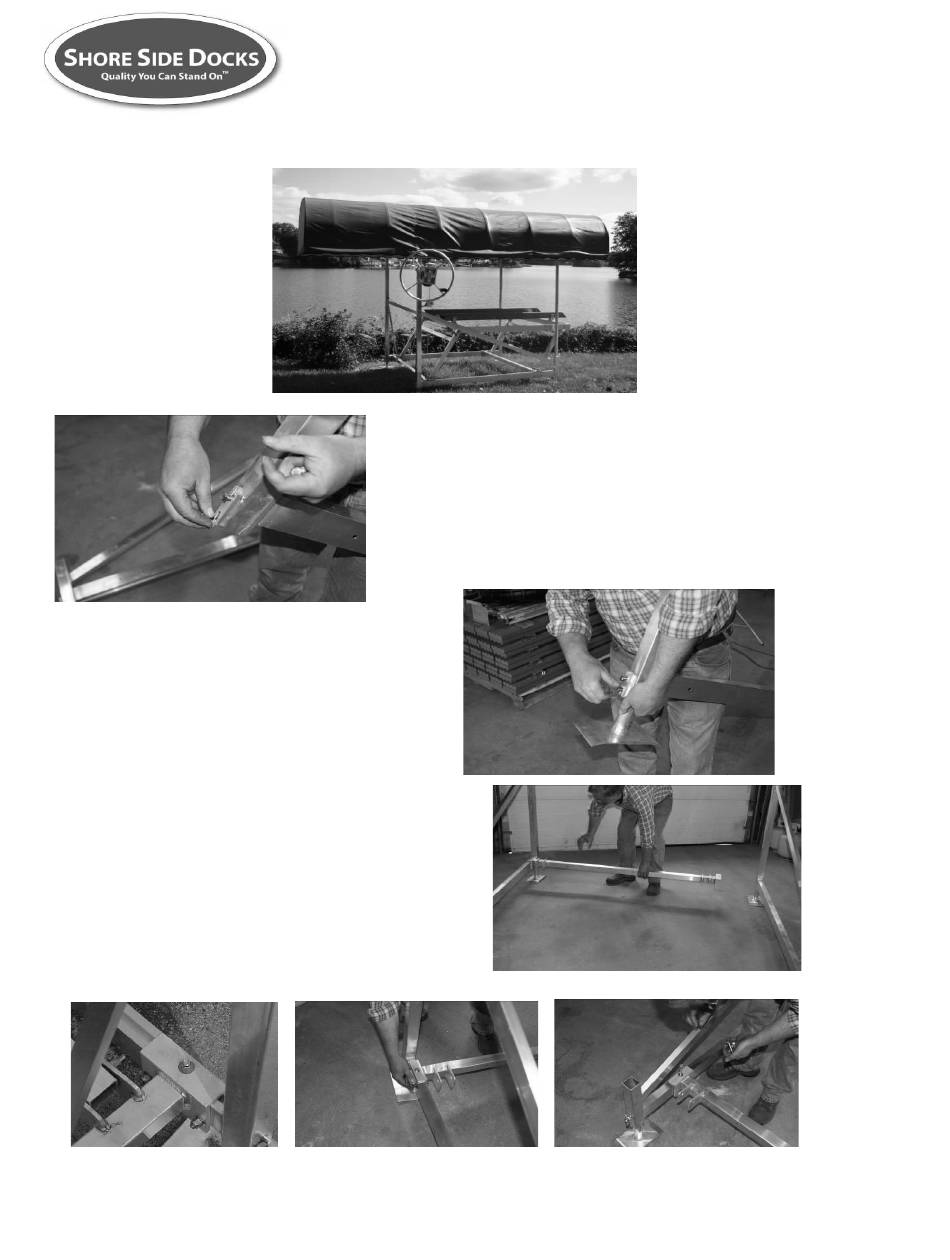

1200# PWC LIFT DIRECTIONS
CROSS BAR
2
62" cross bar
8
3/8" x 2 1/2" hex head bolt
4
3/8" x 1 1/ 4" hex head bolt
12
3/8" brass nylock
20
3/8" flat washer
MAKE SURE THE TABS ON THE CROSS BAR ARE
FACING THE REAR OF THE LIFT
Position frames across from each other about 5' apart.
Slide 1 1/4" bolts into trac at each end, between the 3/8"
holes drilled in the frame. Place cross bars over the 1 1/4"
bolts and line up the holes on the side of the frame, insert
2 1/2" bolts thru holes. Tighten after all the bolts are in.
508-248-9933
LEG KIT
2
4
8
8
Slide legs into the leg pockets at bottom of frame.
Using the sq. nut and 1" bolts, slide
nuts into the channel and tighten
leg, measure legs so frames sit level
R J INDUSTRIES
SHORESIDEDOCKS.COM
welded side frames
12" legs
3/8" x 1" hex head bolt
3/8" square galv. Nut
10/26/2021
Advertisement
Table of Contents
Summary of Contents for Shore Side Docks 1200
- Page 1 1200# PWC LIFT DIRECTIONS LEG KIT welded side frames 12" legs 3/8" x 1" hex head bolt 3/8" square galv. Nut Slide legs into the leg pockets at bottom of frame. Using the sq. nut and 1" bolts, slide nuts into the channel and tighten...
- Page 2 FRONT BRACE 2 2" x 1" x 36" angle brace Position angle brace with holes in the front cross bar. 4 3/8" x 2 3/4" hex head bolts Insert bolts, repeat w/ holes in the side of the front 4 3/8" brass nylock 5' uprights.
- Page 3 3/8" x 2 3/4" bolts, attach pulley w/ 3 links to the 12 3/8" washer outside of post 3/8"x3" bolt & large washer on each side 1 1200# D/L winch of chain. Bolt cable to opposite side w/ 3/8" x 3" bolt 1 19 X 7 s.s. 3/16 cable, 15' and large washer on the outside.
- Page 4 Slide covers over the bunks 5/16" brass nylock and attach w/ 12 x 3/4" s.s. screws. 5/16" washer 12 x 3/4" s.s. screws 1200# PWC LIFT HARDWARE LEG KIT WINCH & WHEEL KIT welded side frames 1200# D/L winch 12"...
