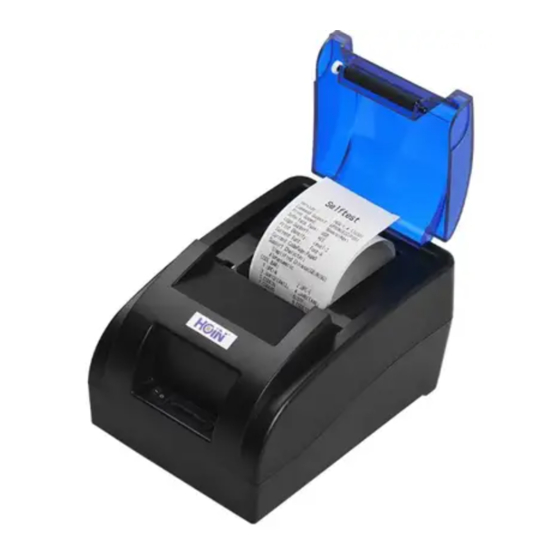

- Page 1 58MM Thermal Receipt Printer User manual Please read this manual carefully before using it, and keep it for future reference.
- Page 2 About this manual Thank you for your purchase of our company's 58MM thermal printer. This manual can help you learn to use this product. Please read this manual before use, and safekeeping, so that all the use of this product can read it.
- Page 3 Package: ◆Printer ◆Power line 1 PC ◆Paper roll 1 ROLL ◆USB Data cable 1PC ◆Use manual 1PC ◆Driver CD 1PC Product Features： ◆High Print quality, low cost ◆Low noise, high speed printing ◆Support raster bitmap printing ◆Easy paper install structure,simple and convenient to operate ◆Built-in power supply design, to save space and more convenient to configure ◆Support GB18030 big font, easy to print uncommon characters...
- Page 4 Printing Speed 90mm/Second Interface Type USB,Bluetooth(Optional) Line Spacing 3.75 mm （Can adjust line spacing by command） Font A:32 character /Line Line No. Font B:42 character/Line Print Simple,traditional Chinese-16 lines parameters Standard GB18030 simplified/traditional Character Chinese Fonts ANK character，Font A：1.5×3.0mm （12×24Dots） Font B：1.1×2.1mm（9×17Dots）...
-
Page 5: Printer Connection
Casher Drawer DC 12V/1A output Input Buffer 32K bytes Buffer NV Flash 40K bytes Weight 590g physicacha racteristics Dimension 185*130*112(MM) Temp：5 ~ 45℃,Humidity：10 ~ 80% Environme Working Storage Temp： -10 ~ 50℃,Humidity： 10 ~ 90% （No dew） Reliability 50KM（print density≤12.5） Print Head Life parameter Android,IOS,Linux,Win2000,Win2003,WinXP,W... - Page 6 2.Put thermal print paper in the paper holder according to the pic below. 3.Press down the flip cover Note: take care of the paper roll direction, if reverse direction, the content won’t be print out. Switch, key name, indicator and function: 1 POWER switch The switch can turned on and off the printer power supply.
- Page 7 the same time until you see status red light on, then release your hand, printers will print a self test page. Switching between English and Chinese: Switching between English and Chinese are as follows: When the printer connected to the power adapter, under off status, press feed key and power key at the same time until you see status red light on-off, then release your hand, printers will change to other language.
- Page 8 ②Open the Android mobile phone (or PDA) Bluetooth, commonly used path: system settings - Device connectivity-Bluetooth; ③Click "Scan" or "Search Bluetooth", in the "available devices",will automatically search to the name of “Bluetooth Printer" or “Thermal Printer"; ④Click “Bluetooth Printer" or “Thermal Printer", and input pair code (factory default: 1234), click"...
- Page 9 Failure Analysis: Failure phenomenon Failure cause Solution Printer status 1.Printer lack of paper 1.Install paper correctly indicator flashing 2.The printer head is 2.Open cover too hot dissipate heat fully then go on 3.The flip not closed printing. well 3. Cover the flip well When printer Print...
