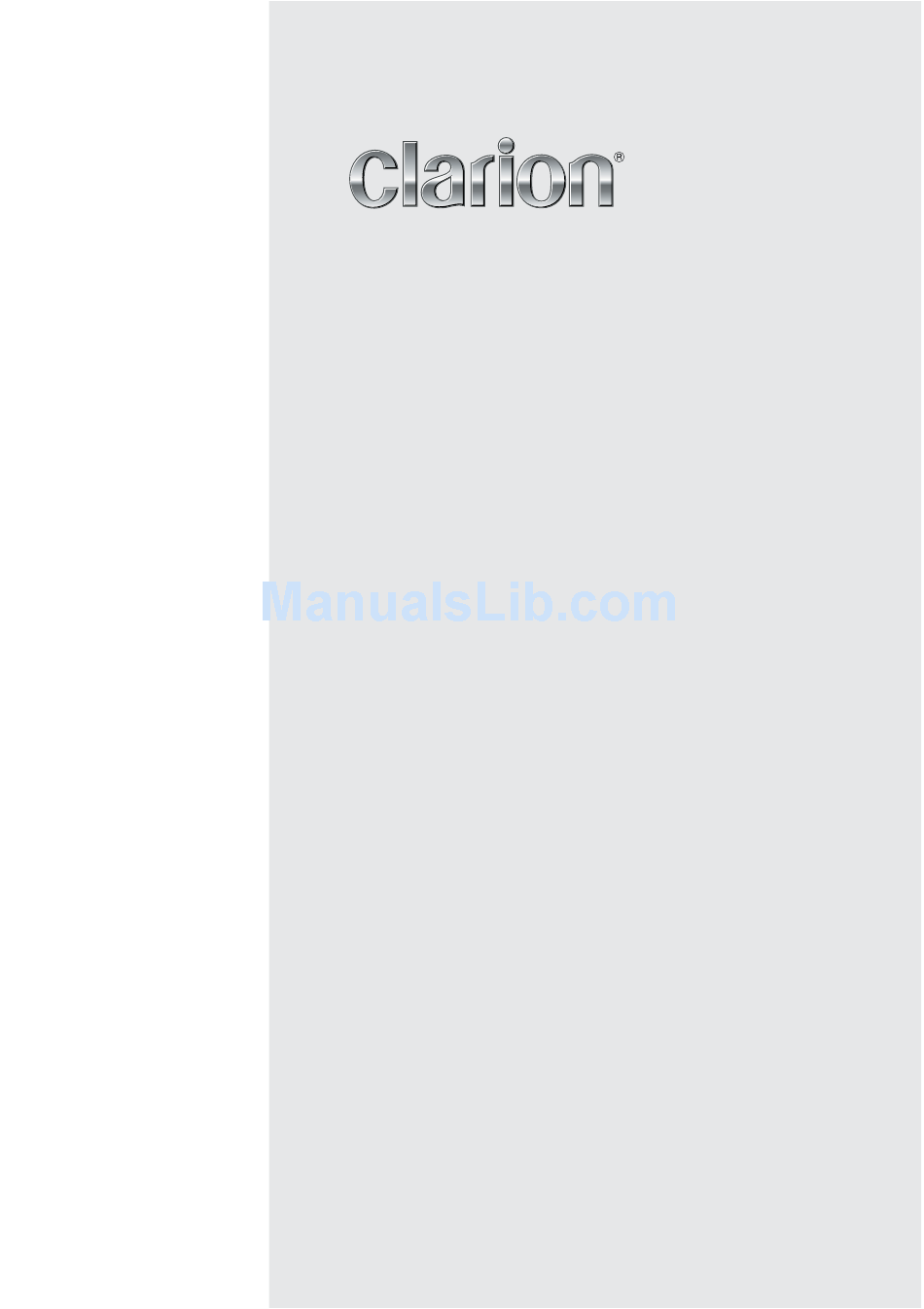

- Page 1 Installation / Owner’s manual Installation / Mode d'emploi et manuel CLA-SC1 CLA-SC1 CeNET SIRIUS SATELLITE RADIO INTERFACE BOX BOITE D'INTERFACE RADIO SATELLITE CeNET SIRIUS...
-
Page 2: Table Of Contents
English Contents 1. What is included in this package?...4 2. Introduction ...5 3. System ...5 4. Installation ...7 5. Compatible Models ...8 6. Specifications ...9 Clarion 2007 Limited Warranty... - Page 3 Do not drop, throw, or try to bend the product as rough treatment could damage it. Do not use accessories other than original Clarion products. Use of non-original accessories may result in loss of performance, damage to the product, fire, electric shock or injury.
-
Page 4: Information For Users
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in vehicle installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 5: What Is Included In This Package
English 1. What is included in this package? A complete CLA-SC1 package consists of the following items: CeNET Sirius Satellite Radio Interface Box CeNET Extension Cable (2.5m) Mounting Screws x 4 Note! CeNET is an abbreviation of Clarion Entertainment Networks, an original bus system developed by Clarion, which enables high-speed data transfer and high quality sound transmission. -
Page 6: Introduction
English 2. Introduction The Clarion CLA-SC1 is a CeNET SIRIUS SATELLITE Radio Interface that allows you to connect a SIRIUS SATELLITE Radio Tuner to your compatible Clarion radio. For compatible Clarion source units, please refer to Compatible Models on page 8 for further details. -
Page 7: System Connection Examples
English System Connection Examples System 1: Clarion CeNET Source Unit and CLA-SC1. System 2: Clarion CeNET Source Unit, CD Changer and CLA-SC1. SIRIUS CLA-SC1 SIRIUS SATELLITE RADIO INTERFACE Ce-NET HEADUNIT PASS-THRU SIRIUS CLA-SC1 SIRIUS SATELLITE RADIO INTERFACE Ce-NET HEADUNIT PASS-THRU... -
Page 8: Installation
Mount CLA-SC1 away from moving parts in the vehicle. Using Screws The CLA-SC1 has 4 mounting holes to be used with the included screws. Before drilling, make sure there are no hidden wires and parts that might be damaged. -
Page 9: Compatible Models
M475 DXZ865MP DXZ765MP DXZ365MP DXZ265 M455 Refer to your Source Unit owners manual for operation with Satellite Radio. Please consult your Clarion dealer or visit www.clarion.com for more details and for older models' compatibility. DXZ775USB DXZ675USB DXZ375MP DXZ275MP VRX765VD MAX675VD... -
Page 10: Specifications
Operating Voltage Power Consumption Quiescent Current Physical Interface Tuner CeNET Connector Outside Dimension Provided by head unit through Clarion CeNET cable 14.4V DC (10.8 -15.6V allowable) Less than 1 Amp <4.0mA 8-pin DIN connector Two Clarion CeNET compatible jacks 126mm x 52mm x 35mm... - Page 12 Clarion Co., Ltd. All Rights Reserved. Copyright © 2007: Clarion Co., Ltd. EE-2167A-A Printed in China / Imprimé en Chine...
