OPERATION MANUAL
SERVE-OVER
VEGA SPACE S LG / HG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGA SPACE S LG and is the answer not in the manual?

Questions and answers

Related Manuals for freor VEGA SPACE S LG

Summary of Contents for freor VEGA SPACE S LG

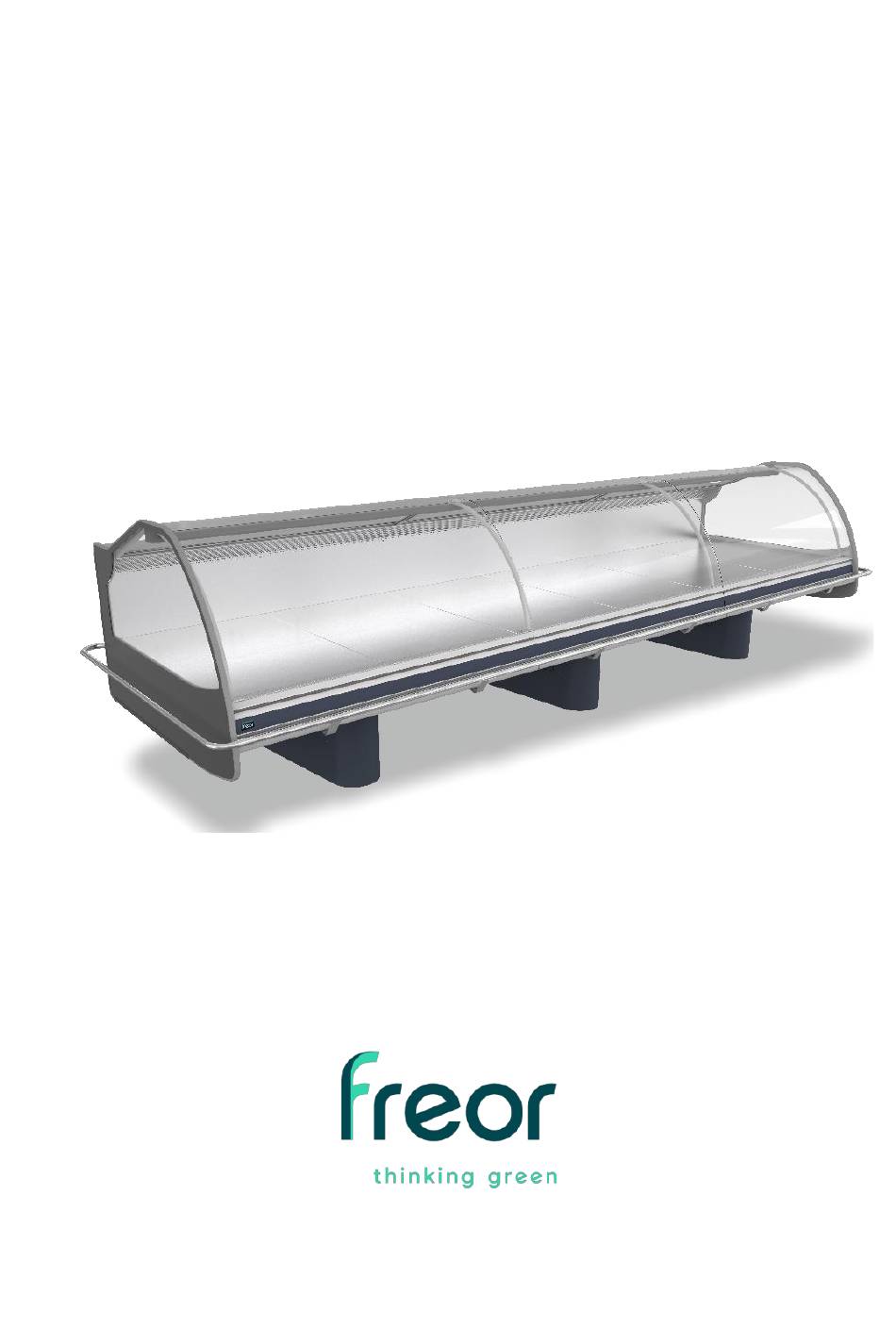

  • Page 1 OPERATION MANUAL SERVE-OVER VEGA SPACE S LG / HG...

  • Page 2: Table Of Contents

    UNPACKING ................... 11 INSTALLATION ..................14 4.1. Requirements for installation the serve-over ........14 4.2. Installation of Vega Space S LG / HG ..........15 INSTALLATION OF DUST COVERS ............21 INSTALLATION OF LEG PANELS ............... 23 ELECTRICAL CONNECTION ..............24 7.1.
  • Page 3 10. INNER LIGHTING ................... 26 11. ENERGY SAVING ..................27 12. DISPOSAL ....................27 13. STORAGE ....................27 14. TESTING ....................27 15. ACCESSORIES ..................27 16. TECHNICAL DATA ................. 28 16.1. Electrical layouts ................28 16.2. Failures and troubleshooting ............28 17.

  • Page 4: General Information

    GENERAL INFORMATION 1.1. Manufacturer information FREOR LT, UAB Katiliskiu St. 92, LT - 02212 Vilnius, Lithuania Manufacturer, T: +370 5 232 9188 address Made in Lithuania Customer Installation date Installation place Start of the product operation [PLACE FOR PRODUCT LABEL]...
  • Page 5 • The operation manual of the serve-over Vega Space S LG / HG must be kept at the place of operation. It must be available to technical personnel, service...

  • Page 6: Dimensions

    1.2. Dimensions Fig. 2. Dimensions of Vega Space S HG Fig. 3. Dimensions of Vega Space S LG...

  • Page 7: Package Dimensions

    1.3. Package dimensions Fig. 4. Vega Space S HG package dimensions. Fig. 5. Vega Space S LG package dimensions. Length of serve-over Length of package (X) 3750 (mm) 3900 (mm) 2500 (mm) 2650 (mm) 1880 (mm) 1880 (mm) 1250 (mm)

  • Page 8: Material Damage During Prolonged Shutdown

    and risk analysis are in accordance with explosion protection regulations (defined by standard EN378-1). Safety guidelines: • Keep ignition sources away (heat, sparks, open flames, hot surfaces). • Use a damp cloth or sponge to remove condensation water and for cleaning. Do not use dry clothes or sponges to dry the unit.

  • Page 9: Personal Protective Equipment

    • Check that the unit is in proper condition. Any damage must be repaired immediately. • In the event of a power failure, stored products must be inspected by the operating company (temperature check). • Check the area in which goods are placed for foreign objects. Remove goods stored incorrectly immediately.

  • Page 10: Refrigerant Circuit

    Applicable standards and safety instructions. The power supply voltage and frequency must match the specifications on the technical data sticker. • Only trained operating personnel may disconnect the unit. • Observe the following safety rules if the unit is damaged during operation or prior to maintenance: Disconnect the unit (switch off all sources of electrical power).

  • Page 11: Purpose Of Use

    2.9. Purpose of use The serve-over Vega Space S LG / HG is intended to be used for the presentation chilled products. Vega Space S LG / HG provides average operating temperature (0...+10°C) in the inner space of the serve-over.
  • Page 12 Size 17 15 min Use appropriate equipment for unit transportation (refer to unit weight and dimension information). Lift the serve-over. Remove pallet’s screws. Remove the pallet. Screws M6x100 ISO 7380.
  • Page 13 Install the plastic legs. Lower the serve-over.

  • Page 14: Installation

    INSTALLATION 4.1. Requirements for installation the serve-over Installation of the unit must be performed following next requirements: • The unit must be aligned horizontally (both depth and length) and installed in the stable position. • Set up the unit only on the designated adjustable legs. •...

  • Page 15: Installation Of Vega Space S Lg / Hg

    4.2. Installation of Vega Space S LG / HG Size 17, 32 Using the front and rear legs, perform horizontal and vertical pre-adjustment of the serve-over. The legs are adjustable up to 5 cm.
  • Page 16 Apply the foam tape around perimeter of connection. Apply silicone to seal the perimeter of connection.
  • Page 17 Insert the guiding pins into indicated places. Push the serve-overs together.
  • Page 18 With help of spirit level, check if both serve-overs are horizontal. All 3 connection slot positions in the figure.
  • Page 19 Front connection slot position. Connection slots are fixed together with threaded pin – M10x90 ISO 7985. Remove the back decoration.
  • Page 20 Back connection slot position. Connection slots are fixed together with threaded pin – M10x90 ISO 7985. River the connection plate on the back of the connection. Rivets D4.8x10.

  • Page 21: Installation Of Dust Covers

    Example of installed serve-overs. INSTALLATION OF DUST COVERS 15 min Fix the front dust cover with self-tapping screws D4,2x13.
  • Page 22 Fix the rear dust covers and cover connector with self-tapping screws D4,2x13. Fix the side dust covers with self-tapping screws D4,2x13.

  • Page 23: Installation Of Leg Panels

    INSTALLATION OF LEG PANELS 15 min Attach the front panel to the leg. Fix the sides of the panel with self-tapping screws D4.2x13.

  • Page 24: Electrical Connection

    Fix the back panel with self-tapping screws D4,2x13. ELECTRICAL CONNECTION 7.1. Connecting the unit to the power supply Unit connection to the to the power supply must be carried out only by qualified personnel. Note the following before connecting the unit: •...

  • Page 25: Drainage

    DRAINAGE 8.1. Drainage system Serve-over Vega Space S LG / HG to be equipped with suitable drainage system. The condensate can be drained to the tub trough the drainage siphon. Also, condensate drainage can be connected to the common sewerage system.

  • Page 26: Inner Lighting

    moisture residue and to dry up the surface. Chromed surfaces must be cleaned with suitable cleaning agents. After cleaning, they must be dried up with a soft cloth that does not leave dust. • Painted components must be cleaned with liquid cleaning agents without abrasive materials.

  • Page 27: Energy Saving

    After the multi-decks are installed, each serve-over and the overall system must be inspected before their start-up. 15. ACCESSORIES Variety of special accessories available on request, such as: partitions, tabs, price holders, a drainage collection tub, evaporation baths, safety bumpers, etc. For more information, please call FREOR LT or sales partner.

  • Page 28: Technical Data

    16. TECHNICAL DATA 16.1. Electrical layouts The layouts are in the electrical console. 16.2. Failures and troubleshooting Repair of the internal freezing coil of the serve-over, check the refrigerant amount and replacement of parts may only be carried out by a specialist qualified to work with F and OAM gases. Only an electrician with the respective qualification may carry out inspection and repair of electrical installation.
  • Page 29 Possible causes: Error signal Potential reason Troubleshooting Power supply failure (the Check electrical installations, system does not receive the network, and fuses. power supply). The temperature of the Remove warm products from the uploaded products is cabinet and freeze them up to higher than the the necessary temperature in the temperature in the internal...
  • Page 30 Check for the phase matching (in the event of changing phases, one-phase cabinet elements can The serve-over is out of Power supply malfunction. be operational). order. Check switches. Check the power network. Fluctuations of the electrical network voltage. Refrigeration cycle Contamination of refrigerant malfunction.

  • Page 31: Meanings Of Symbols

    17. MEANINGS OF SYMBOLS Symbol Meaning Type Qualified specialist; Work clothing; Protective gloves; Brittle surfaces; Wrench; Sizes: 10,13, 17, 32 Screwdriver; Rubber hammer; Protective goggles; Silicone pistol; Clamp;...
  • Page 32 FREOR LT, UAB Manufacturer of the commercial refrigeration equipment Katiliskiu St. 92, LT - 02212 Vilnius, Lithuania T: +370 5 232 9188 E: sales@freor.com www.freor.com DOM-1CA0X-00000E_v2.0 FREOR LT is not affiliated with Chemours or FREON.
