1
IDENTIFY ALL PARTS AND HARDWARE
THAT ARE INCLUDED WITH YOUR
CHICKEN ROOSTING PERCH. GRAB A
SCREWDRIVER (OR HAND DRILL).
FIND A LEVEL PLACE TO BUILD IT AND
AN EXTRA SET OF HANDS WOULD BE
HELPFUL. START BUILDING!
2

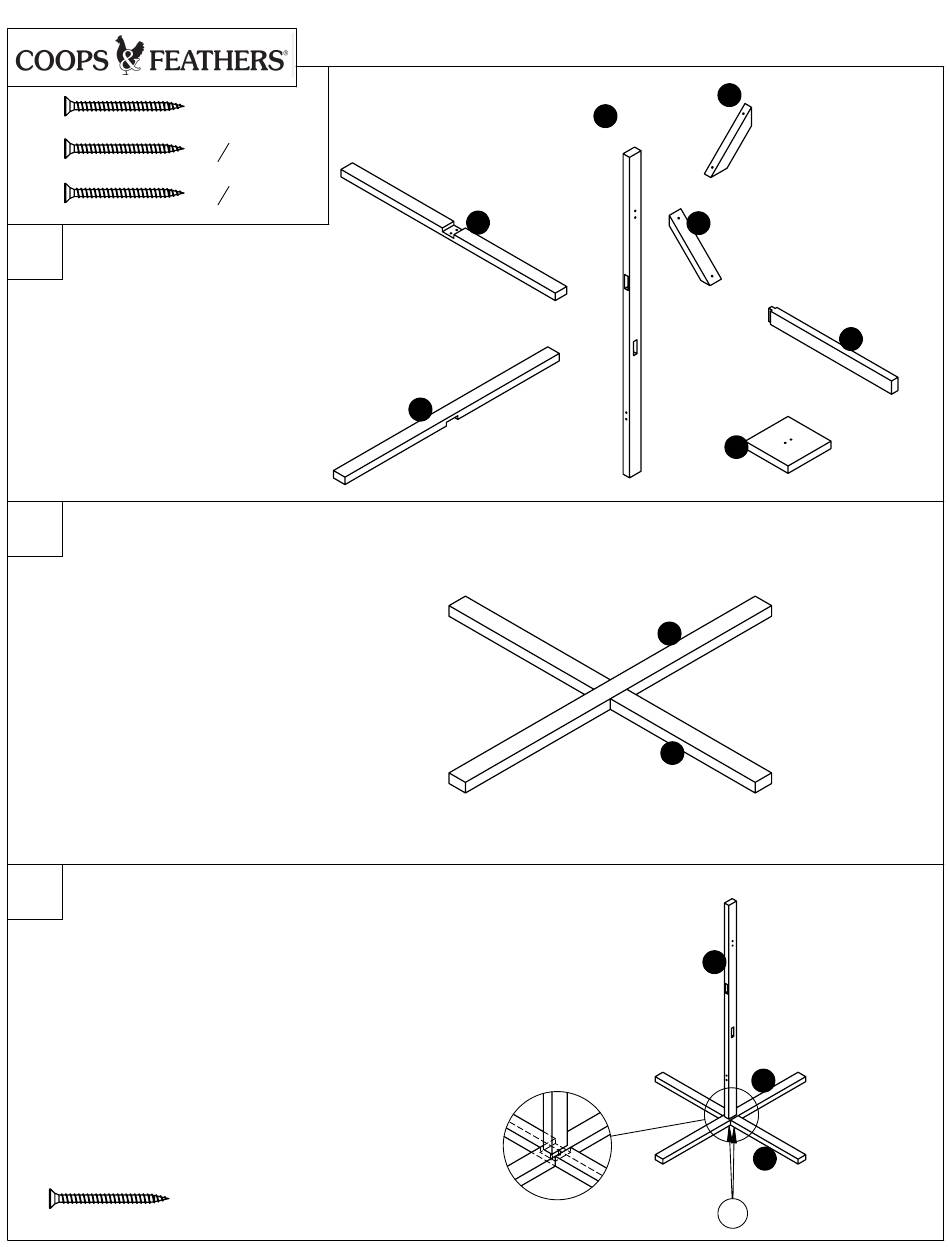

PLACE BOTTOM LOWER BASE (1) WITH
NOTCH FACING UP ON THE GROUND. TAKE
BOTTOM UPPER BASE (2) WITH NOTCH
FACING DOWN AND NEST INTO BOTTOM
LOWER BASE (1).
3
GET YOUR EXTRA SET OF HANDS. PLACE CENTER POLE
(3) ON TOP OF NOTCHED LOWER BASE (1+2) SO IT IS
CENTERED OVER THE NOTCHED AREA. MAKE SURE IT
IS NOT TWISTED. INSERT TWO SCREWS (C) INTO
PRE-DRILLED HOLES THROUGH THE UNDERSIDE CENTER
OF THE NOTCHED BASE AND TIGHTEN WITH YOUR
SCREWDRIVER OR HAND DRILL. SET UPRIGHT.
C
2x
ASSEMBLY INSTRUCTIONS
1"
4 pcs
1
"
4 pcs
1
4
1
"
12 pcs
3
4
BOTTOM LOWER BASE
(TOP IS NOTCHED)
1
2
BOTTOM UPPER BASE
(BOTTOM IS NOTCHED)
x2
4
3
CENTER POLE
SUPPORTS (ATTACHES TO
BOTTOM UPPER BASE (2))
x2
5
SUPPORTS (ATTACHES TO
BOTTOM LOWER BASE (1))
ROOSTING PERCHES
7
UPPER LANDING PAD
2
1
3
2
1
C C
Chicken Roosting Perch
Model# 223-40
(2) CENTER POLE
(2) CENTER POLE
x4
6
