IDENTIFY ALL PARTS AND HARDWARE THAT ARE INCLUDED WITH YOUR
CHICKEN PLAY ACTIVITY CENTER. GRAB A SCREWDRIVER (OR HAND
DRILL) AND A RUBBER MALLET. FIND A LEVEL PLACE TO BUILD IT AND
AN EXTRA SET OF HANDS WOULD ALWAYS BE HELPFUL. START
BUILDING!
2

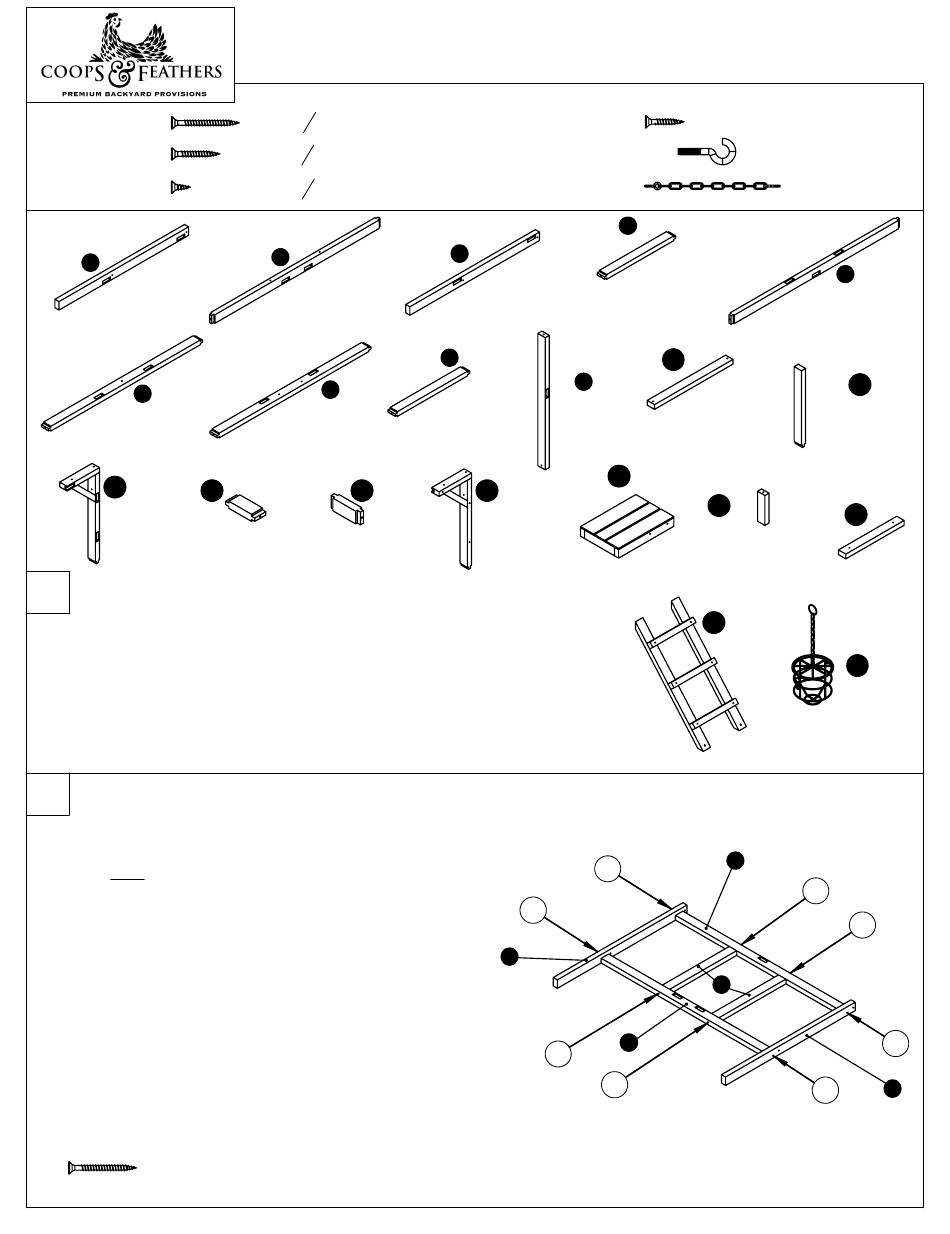

GET PARTS 1-5 AND SET THEM OUT AS THE IMAGE SHOWS. MATCH UP
NOTCHES BEFORE INSERTING ANY OF THE PIECES TOGETHER. BEING
THIS IS THE BASE OF THE UNIT, THESE PIECES ARE GOING TO FIT VERY
SNUG, SO ENSURING IT IS SET SQUARE AND GENTLY USING A RUBBER
MALLET WILL HELP. INSERT #2 INTO #1 AND #3 FIRST. INSERT #4
(BOTH PIECES) INTO THE NOTCHES OF #2. TAKE YOUR TIME AND
START WITH INSERTING #5 INTO #3 AND THEN WORK TO THE LEFT
WITH ONE OF #4, THEN THE SECOND #3 AND FINALLY INTO #1. YOU
WILL NEED TO SLIGHTLY ADJUST THE FRAME TO ENSURE A TIGHT FIT
AND THAT ALL THE TONGUE AND GROOVES ARE FULLY INSERTED.
SECURE TWO SCREWS (A) ON EACH OUTSIDE EDGE OF THROUGH THE
PRE-DRILLED HOLES INTO EACH PART. SET ASIDE.
