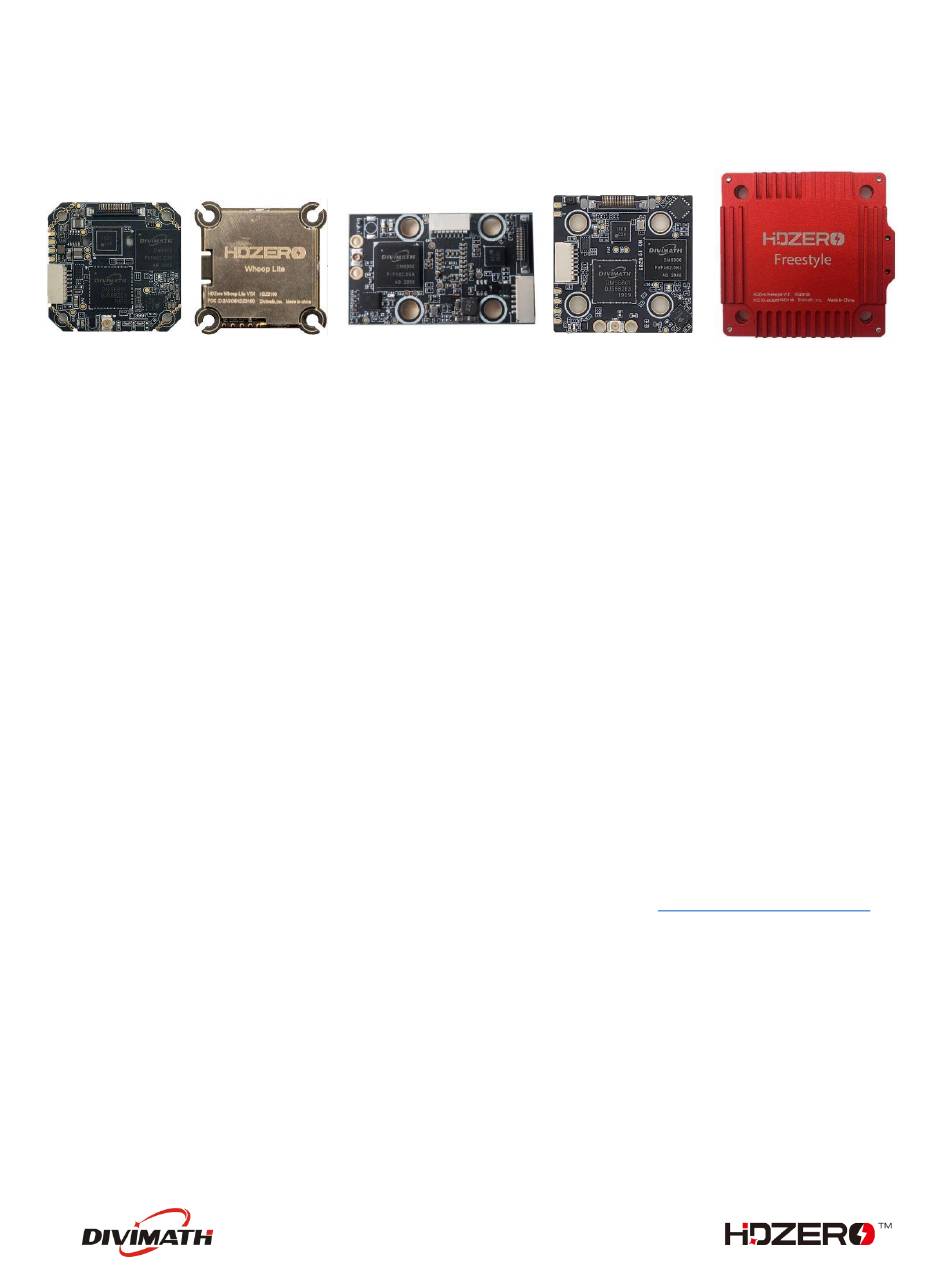

HDZero Video Transmitters
Whoop
Whoop Lite
Race V1
Race V2
Freestyle
What is HDZero?
PUSH YOUR SKILLS TO THE LIMIT
HDZero offers industry-leading low latency, giving you more time to react and the best possible chance of hitting
that next gap. With its smooth, consistent FPV video feed, you'll experience the same locked-in feeling you get
with analog video–but with the clarity of HD.
MAKE IT AN EVENT
HDZero supports the standard 5.8ghz video channels, meaning you can have up to 8 simultaneous pilots flying
either full-quality HDZero or analog video. When you're ready to take a break and spectate, you can tune in to any
channel and view the pilot's feed with no loss of quality, giving you the same feeling of being in the air yourself.
UPGRADE YOUR FLEET
From 1S whoops to long-range wings, HDZero offers a variety of VTX and camera options to suit every build. You
may even be able to use the gear you already have–the HDZero receiver will work with any FPV goggle with an
HDMI input. HDZero can grow with your needs and fit perfectly into your preferred FPV craft.
RAPIDLY EVOLVING SYSTEM
HDZero is rapidly evolving. Please always use the latest firmware that is located at www.hd-zero.com/document.
1
Advertisement
Table of Contents
Related Manuals for DIVIMATH HDZero
Summary of Contents for DIVIMATH HDZero
-
Page 1: What Is Hdzero
HDZero supports the standard 5.8ghz video channels, meaning you can have up to 8 simultaneous pilots flying either full-quality HDZero or analog video. When you’re ready to take a break and spectate, you can tune in to any channel and view the pilot’s feed with no loss of quality, giving you the same feeling of being in the air yourself. -
Page 2: Table Of Contents
4. Flight controller Configuration (Use Betaflight as example) 5. Restart/Connect Flight controller Configuration (Use Betaflight as example) Stick Movement Using VTX Menu (Applicable to all HDZero VTXes) Using SmartAudio (Not applicable to HDZero Whoop VTX) Help and Troubleshooting Trouble Shooting... -
Page 3: Hdzero Vtxes
HDZero VTXes Whoop Whoop Lite Race V1 Race V2 Freestyle Dimension 32x32 32x32 27x45 34x34 40x40 Mounting Pattern 25.5x25.5 25.5x25.5 20x20 20x20 30x30 M2 (Soft) M4 (Soft) M4 (Soft) M3 (Soft) Weight 5.3grams 4.5grams 7 grams 6 grams 28grams Power Input... -
Page 4: Hdzero Whoop Video Transmitter
HDZero Whoop Video Transmitter The HDZero Whoop VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. The power input range is 7V – 26V (2S – 6S). Though the Whoop VTX has an integrated surge protection circuit, a... -
Page 5: Hdzero Whoop Lite Video Transmitter
HDZero Whoop Lite Video Transmitter The HDZero Whoop lite VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. The power input range is 2.8V – 13V (1S-3S). When it is powered by a 5V pad of FC/BEC, make sure that 5V has 1.5A current output. -
Page 6: Hdzero Race V1 Video Transmitter
HDZero Race V1 Video Transmitter The HDZero Race VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. The power input range is 7V – 26V (2S – 6S). Though the Race VTX has an integrated surge protection circuit, a... -
Page 7: Hdzero Race V2 Video Transmitter
HDZero Race V2 Video Transmitter The HDZero Race VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It works with the Shark Byte RX5.1 goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera. -

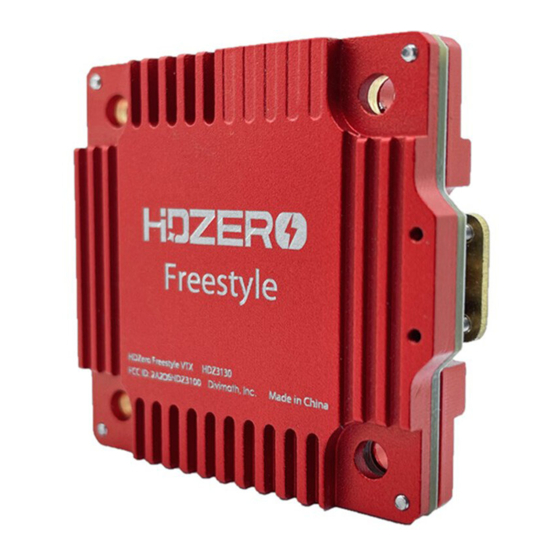

Page 8: Hdzero Freestyle Video Transmitter
HDZero Freestyle Video Transmitter The HDZero Freestyle VTX offers unprecedented range and performance for the HDZero 5.8GHz digital FPV system. With its high maximum output power and robust construction, this VTX is perfect for freestyle and long-range builds. With a tested maximum range of more than 18 miles, the Freestyle VTX will transmit a digital FPV feed as far as you’re willing to fly. - Page 9 HDZero Freestyle VTX is compliant with FCC 47 CFR 97.215(c). It is limited to 25mW/200mW out of the box, but it is capable of up to 1W if you have the required HAM radio license to use this power output.
-
Page 10: Hdzero Vtx Installation Guide
Notes: VTX can be powered by VBAT or BEC. Check each VTX’s power requirement above; Use of capacitor is mandatory for HDZERO VTX; One UART is needed for OSD, Camera, VTX menu; Never apply power on VTX without antenna installed and secured;... -
Page 11: Hdzero Firmware Update Guide
HDZero Firmware Update Guide The firmware can be downloaded from www.hd-zero.com/document Each revision contains firmware for all the VTX and VRX. And revision number is formatted as revddmmyyyy.zip where “ddmmyyyy” denotes its release date. Products Firmware HDZero VRX HDZeroVRX_4SMA_Revddmmyyyy.zip HDZero Freestyle VTX FreestyleVTX.Revddmmyyyy.zip... -
Page 12: Vtx Update Guide
(1) Power off VRX; (2) Unzip content of the file below onto SD-card, insert SD to the module; a. - HDZeroVRX_4SMA_Revddmmyyyy.zip for HDZero VRX, or b. - SharkByteVRX_2SMA_Revddmmyyyy.zip for Shark Byte VRX (3) Move the switch to Bottom position with tweezers (not included);... - Page 13 (4) Power on goggle module, the red LED will be lit; (5) Wait for red LED to turn off, on, and then off again (it may take over 10 min to complete); (6) Power off, and move the switch to TOP position with tweezers; (7) Repower goggle module, it should now boot up normally.
-
Page 14: Setup And Getting Started
Setup and Getting Started OSD Setup 1. Prerequisition o Betaflight >= 4.2.8 o Inav >= 4.1 o FlightOne >= 10.1.1.5576 | 10.1 Alpha 29 2. Update firmware VTX and VRX Download the latest firmware: www.hd-zero.com/document Firmware package (Rev_ddmmyyyy.zip) contains the firmware for all the VTX and VRX 3. -
Page 15: Restart/Connect Flight Controller Configuration (Use Betaflight As Example)
5. Restart/Connect Flight controller Configuration (Use Betaflight as example) Go to configuration tab Activate OSD function Activate Telemetry function SAVE Go to OSD tab, and configure the items you want to show on your screen SAVE Go to CLI tab to enable MSP Display Port set osd_displayport_device = MSP set displayport_msp_serial = YOUR_UART_PORT_NUMBER - 1 save... -
Page 16: Stick Movement
Enter VTX menu Move Up Move Down BetaFlight Menu Move Left Move Right | Enter Enter BetaFlight menu Move Up Move Down For HDZero Cameras Enter HDZero Move Up Move Down Move Left Move Right | Enter Camera menu For Non-HDZero Cameras... -
Page 17: Using Vtx Menu (Applicable To All Hdzero Vtxes)
Notes: HDZero VTX will still become hot even on P1mW mode. It is better to keep VTX on PIT 0mW mode when it will be idle for a while. Though the receiver will not have live video on this mode, it will come back as soon as the quad is armed. -
Page 18: Using Smartaudio (Not Applicable To Hdzero Whoop Vtx)
FC within 10 seconds. If the link exists, FC will fully control race VTX’s RF output power and working frequency. VTX table needs to be set as below. Please note that HDZero Race VTX supports all 8 channels (R1 ~ R8) on R band, and 2 channels (F2 and F4) on F band. - Page 19 #3 is to turn off RF output completely. HDZero Race VTX will become very hot if it is on the bench without airflow, even if it is on 25mW or PIT mode. It is recommended to put VTX on 0mW while quad is waiting on the line.
-
Page 20: Help And Troubleshooting
(3) Remains OFF for HDZero Micro Camera(Beta), ON for all other cameras. If a Non beta HDZero Micro camera is attached, and get NO blue LED, please (a) Check if MIPI cable is secured on both end of camera and VTX, and... - Page 21 - Joystick does not work in digital mode. Must use stick commands (Thr mid, yaw right) to enter cam menu (BF OSD disappears) (d) If it is Micro HDZero camera, it needs firmware that is released after June 23 2021...
