THE MOST POWERFUL
SOLAR MPPT INVERTER
RUNNING ON JUST 2 BAT TERIES
USER MANUAL
USER MANUAL
BULLET SERIES
BULLET SERIES
Runs 1 HP Pump + ALL household loads*
High-quality IGBT-based MPPT design
Quick Battery Charging from Solar/ Grid: upto 65A/ 18A
Can connect to PV Modules upto 2000W - Poly/ Mono/ Mono Perc
Also Works for non-Solar home applications
Compact, no-plastic, all-metal shell for toughness & long life
'LOADS' OF SMARTNESS: Multiple modes of operation, reduced grid
consumption, PV-generation data stored
www.energiaa.in
Customer Care No.: 1800-891-3319
*Terms & conditions apply
info@energiaa.in
Advertisement
Table of Contents
Related Manuals for STATCON ENERGIAA BULLET Series
Summary of Contents for STATCON ENERGIAA BULLET Series
- Page 1 THE MOST POWERFUL SOLAR MPPT INVERTER RUNNING ON JUST 2 BAT TERIES USER MANUAL USER MANUAL BULLET SERIES BULLET SERIES Runs 1 HP Pump + ALL household loads* High-quality IGBT-based MPPT design Quick Battery Charging from Solar/ Grid: upto 65A/ 18A...
-
Page 2: Table Of Contents
Contents Copyright Declaration.................................2 1. NOTES ON THE MANUAL ........................ 3 1.1. SCOPE OF VALIDITY .............................. 3 1.2. SYMBOL INDICATIONS ............................... 3 1.3. SAFETY ................................... 3 2. INTRODUCTION ............................ 4 2.1. PRODUCT DESCRIPTION ............................ 4 2.2. PHYSICAL APPEARANCE & TERMINATION DETAILS OF INVERTER............5 2.3. -
Page 3: Copyright Declaration
(including software, etc.) it. Reproduction or distribution of it any from or by any means is not permitted. All rights reserved. STATCON ENERGIAA PVT. LTD. reserves the right of final interpretation. This document is subject to changes without prior notice. This is valid only for BULLET SERIES... -
Page 4: Notes On The Manual
This manual is an integral part of inverter, and it describe the assembly, installation, commissioning, maintenance and failure analysis/ troubleshooting of BULLET SERIES MPPT-Based PCU. This operating manual is applicable for bullet series PCU provided in writing by Statcon Energiaa Pvt. Ltd. (hence for the ‘SEPL’ or the company’). -
Page 5: Introduction

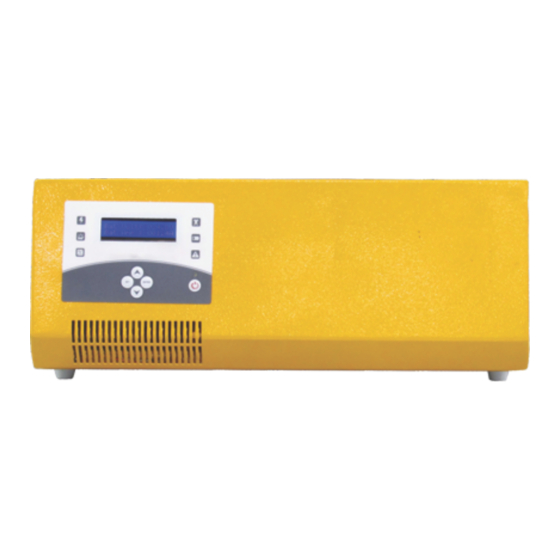

2. INTRODUCTION 2.1 PRODUCT DESCRIPTION The BULLET SERIES MPPT-Based PCUs are mechanically and electrically robust with a operating range and suitable for operating in harsh environments. This unit is perfectly fit for low-maintenance for industrial and residential applications both. -
Page 6: Physical Appearance & Termination Details Of Inverter
2.2 PHYSICAL APPEARANCE & TERMINATION DETAILS OF INVERTER BULLET SERIES MPPT-Based PCU comes in sheet metal enclosure of standard sizes with table top mounting and colour shades as mention in Table 2. This unit is for Indoor application only and should not be kept in open. -
Page 7: Installation
2.3.3 INDUSTRIAL GRADE INVERTER Designed for reliability against frequent grid variations. Our Transformer provides galvanic isolation & has a long life. 2.3.4 PLUG IN PLAY Designed for screw-type/ pin type terminal blocks for all input and output Ideal for solar integrators due to ease of installation ... - Page 8 This image shows a typical single-line diagram showing use of SPD and earth connection there of.
-
Page 9: Electrical Wiring
3.2 ELECTRICAL WIRING WIRING AND THIMBLE/LUG SIZE CHART AS PER IS-3961-PART V THIMBLE/LUG size should be same as wire size given below. Wire size (SQ. MM) Details PCU Model Mains Wire Load Wire PV Wire Battery Wire BULLET 3024 Table 3 AC Mains Battery Loads... -
Page 10: Instruction To Follow
3.4 INSTRUCTION TO FOLLOW Charge the batteries before first use. Use thimbles for proper connection of wire at screw terminals Figure 4 NOTE: ✓ ✕ DO NOT USE STABILIZER/ STABILIZER/ MAINS STABILIZER/ CVT/SERVO CVT/SERVO CVT/SERVO AT OUTPUT OF PCU. Figure 5 3.5 EARTHING Earthing of any equipment is required to ensure that the chassis of the equipment is at ground... -
Page 11: Led Indication & Keypad Details
3.7 LED INDICATION & KEYPAD DETAILS LED-1 LED-4 LED-2 LED-5 LED-3 LED-6 KEY-1 LED-7 KEY-2 KEY-5 KEY-3 Figure 6 KEY-4 INDICATION NAME COLOUR IF LED OFF IF LED BLINKING IF LED CONSTANT ON POWER ON BLUE POWER OFF POWER ON LED-1 SOLAR ON YELLOW... -
Page 12: Display
PV Volt : 000.0V Switched OFF PV Amp : 000.0A Visit Us: www.energiaa.in Bat Volt : 025.4V Grid Charging: Bat Amp : 000.0A Disabled BULLET SERIES MODEL No: 3024 Battery Grid Charging: Boost Charging Enabled Battery WORKING MODE: Float Charging... -
Page 13: Menu Setting Flow Chart
4.3.1 USER LOGIN Press SET key to enter in user login when displayed on screen. After entering in user login it will show software versions and system rating. Press SET/INC/DEC key to select your battery type, Priority mode, Battery AH, working mode, Grid ... -
Page 14: Operating Modes
FAULT NAME IN DISPLAY FAULT DESCRIPTION SYSTEM TRIP/OFF When system Shuts Down due to any fault/internal error INVERTER UNDER VOLTAGE When Inverter O/P Voltage goes below inverter under voltage set value INVERTER OVER VOLTGE When Inverter O/P Voltage goes above inverter over voltage set value BATTERY UNDER VOLTAGE When Battery Voltage goes below the battery under voltage set value BATTERY OVER VOLTAGE... - Page 15 6. MAINTENANCE & TROUBLESHOOTING 6.1 VISUAL INSPECTION Inspect the PCU and the cables for visible damage and pay attention to the operating status display of the PCU. Before maintenance, you must disconnect AC and DC to avoid risk any shock. ...
- Page 16 IN CASE THESE DO NOT WORK, CONTACT THE SERVICE ENGINEER. BATTERY UNDER-VOLTAGE : This fault/alarm may occur due to loose connection of your battery or due to deep discharging of battery. The other reason of this fault may be due to issues related battery. REMEDY: Check the connections of your battery.
- Page 17 REMEDY: Check the battery voltage and battery connections. IN CASE OF ANY OTHER ISSUE, CONTACT TO SERVICE ENGINEER. MAINS UNDER FREQUENCY : This fault may occur due to improper frequency of mains. REMEDY: Check the mains supply. IN CASE OF ANY OTHER ISSUE, CONTACT TO SERVICE ENGINEER.
- Page 18 APPENDIX-1 GENERAL FAULT AND THEIR SOLUTIONS 1. INVERTER OUTPUT VOLTAGE IS NOT AVAILABLE CAUSE REMEDY Input DC Voltage is not available Make it available first Battery connected in reverse polarity Check and connect in correct polarity System is trip DC under voltage condition Assure input DC range is above the DC under voltage cut setting 2.
- Page 19 APPENDIX-2 TECHNICAL SPECIFICATIONS...
- Page 20 Table 7...
- Page 21 SEPL’s HBD, ECO HBD, ESS, SEOG series, BULLET series of PCUs are used with battery only, and SEPL shall, in no way, be responsible for cases like battery failure, poor battery back-up, poor solar generation, or an increase in electricity bills.
- Page 22 Places not covered under warranty - Andaman & Nicobar Island, Kerala, Leh, Tamil Nadu, Andhra, Tripura, Mizoram, or any other place not accessible by Indian Railways or Govt. buses. Claims, if any, to this warranty shall be made only before courts having jurisdiction in Gautam Buddha Nagar, Uttar Pradesh. The warranty will not apply if the original enclosure is found opened or tampered with, Warranty in case of defect caused by household pets, rats, cockroaches or other animals or insects in invalid.
- Page 23 B-81, Sector-63, Noida, G.B. Nagar- 201307 (U.P.) - INDIA Phone : +91-120-4088665, 4258645, Toll Free : 1800 891 3319 Website : www.energiaa.in E-mail : info@energiaa.in...
