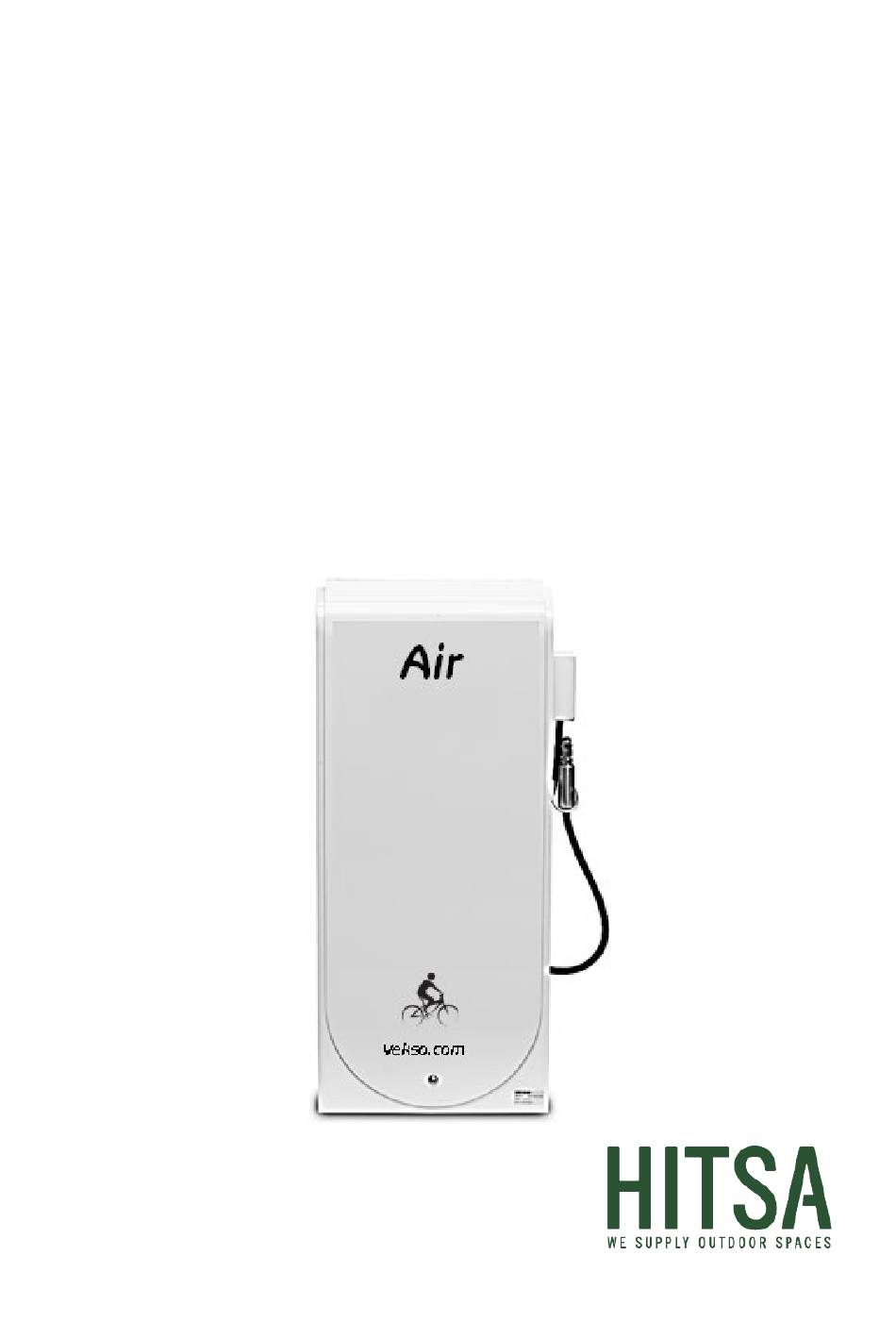

- Page 1 AROS Compressor Pump CARPU2011 TECHNICAL MANUAL 10057045 V02021 10 30 EN...
-
Page 2: Table Of Contents
TECHNICAL SPECIFICATION ............... 14 ..................14 VERALL IMENSIONS MAINTENANCE ..................16 SPARE PARTS & WEAR PARTS ..............17 TERMS & CONDITIONS OF SALE ..............18 HITSA & OUR URBAN CYCLING SOLUTIONS ..........20 CONTACT INFORMATION & SERVICE SUPPORT ......... 20... -
Page 3: Introduction
HITSA - Aros Compressor Pump CARPU2011 INTRODUCTION Thank you for choosing a HITSA product from our range of Urban Cycling Solutions. Aros Compressor Pump is an automatic air pump designed for use with bicycles. The pump features an electrical compressor to make filling bicycle tires with air simple and easy. -
Page 4: Product Overview
HITSA - Aros Compressor Pump CARPU2011 PRODUCT OVERVIEW External Components Figure 1: Product overview Table 1: Part description Description Air pump system Cabinet Start button Cover for hose Hook for pump handle Pump handle and hose Embedment frame... -
Page 5: Internal Components
HITSA - Aros Compressor Pump CARPU2011 Internal Components Figure 2: Internal view Table 2: internal Components Description Start button connector Control box Combi HPFI Timer Base Quick connection air Circuit breaker Solenoid valve Security valve Compressor... -
Page 6: Safety Information
HITSA - Aros Compressor Pump CARPU2011 SAFETY INFORMATION IMPORTANT: Read these instructions before product installation and operation Before product installation and operation, please read the following safety information and sections in this manual concerning operation and installation. In addition to addressing safety concerns, reading this material will also help prevent damage to the product. - Page 7 HITSA - Aros Compressor Pump CARPU2011 COMPRESSOR SYSTEM SAFETY INFORMATION Ensure compressor system is always protected against rain, moisture, frost • and dust. Ensure all openings on compressor system are kept free of restriction and • never blocked. Keep all openings free from dust, dirt and other particles.
-
Page 8: Operation
HITSA - Aros Compressor Pump CARPU2011 OPERATION General use Before turning on the pump, ensure the Combi HPFI (Table 2, Item 3) is in the ON position. Turn on the pump by moving the circuit breaker to the ON position (Table 2, item 7). -
Page 9: Installation
HITSA - Aros Compressor Pump CARPU2011 INSTALLATION ATTENTION: During installation, ensure that the frame is positioned in the concrete foundation in a level position. This should be done using appropriate measurement tools, and will ensure that the mounted air pump system will be installed in the correct vertical position. -
Page 10: Mounting
HITSA - Aros Compressor Pump CARPU2011 Mounting The air pump system is mounted on top of the frame (Figure 5). It is secured in place with four M10 x 25mm bolts and 4 M10 washers which connect into the frame. -
Page 11: Electrical
HITSA - Aros Compressor Pump CARPU2011 Electrical SAFETY WARNING: Incorrect electrical connection may result in electric shock. The electrical connection must be carried out in accordance with local electrical regulations and by qualified electricians. ATTENTION: Make sure that your air pump system is disconnected from the external power supply by turning off the Circuit breaker before changing, plugging or unplugging any component inside your air pump system. - Page 12 HITSA - Aros Compressor Pump CARPU2011 Table 3: Electrical connections From Description Cable Description Terminal External Power 230Vac 50/60Hz Circuit breaker Cable (3x1,5mm²) Ground Figure 7: Connection diagram...
-
Page 13: Main Diagram Of The Air Pump System Internal Components
HITSA - Aros Compressor Pump CARPU2011 Main diagram of the air pump system internal components Start button Combi HPFI Compressor Circuit Timer Solenoid breaker valve Power Supply (230Vac) Figure 8: Main diagram of the air pump system components... -
Page 14: Technical Specification
HITSA - Aros Compressor Pump CARPU2011 TECHNICAL SPECIFICATION Overall Dimensions Figure 9: Overall dimensions... - Page 15 HITSA - Aros Compressor Pump CARPU2011 Table 4: Technical specification Model Model no. CARPU2011 Materials and finish Outer casing 3mm Aluminum Aluminum or powder coated Hose Armored steel hydraulic air hose. Pump handle Accommodates Dunlop, Schrader, and Presta valve types.
-
Page 16: Maintenance
HITSA - Aros Compressor Pump CARPU2011 MAINTENANCE Regular maintenance will prolong the life of your HITSA product and also ensure optimal operating performance. HITSA recommends that the air pump system should be maintained according to the following maintenance schedule. Table 5: Maintenance list... -
Page 17: Spare Parts & Wear Parts
Frequency of replacement depends on use patterns specific to each product installation location. To order spare parts or enquire about service options, please contact HITSA through the contact information found on the back page of this manual. Table 6: Spare parts Description Part no. -
Page 18: Terms & Conditions Of Sale
HITSA - Aros Compressor Pump CARPU2011 TERMS & CONDITIONS OF SALE HITSA Terms & Conditions of Sale are available on the HITSA website. This product has a 1-year warranty covering manufacturing defects. Warranty coverage does not include damage due to vandalism. Warranty coverage does not include replacement of parts which require replacement due to normal product use. -
Page 20: Hitsa & Our Urban Cycling Solutions
HITSA - Aros Compressor Pump CARPU2011 HITSA & OUR URBAN CYCLING SOLUTIONS HITSA proudly offers a range of products and services all focused around the theme of Enriching Urban Life. HITSA product areas include Urban Lighting Solutions, Urban Furniture Solutions, and Urban Cycling Solutions.
