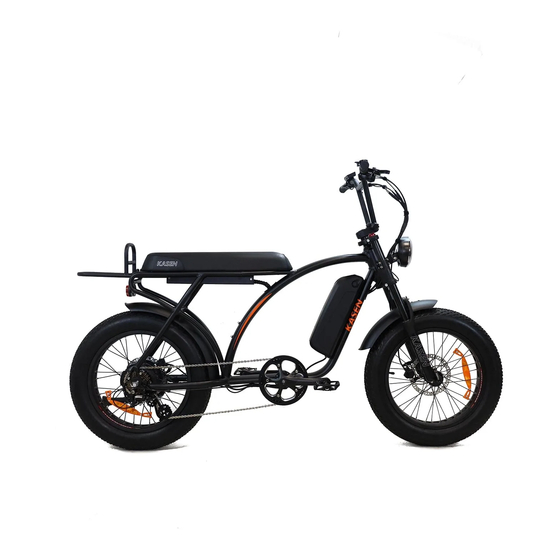

KASEN KABBIT Owner's Manual
  1. Manuals
  2. Brands
  3. KASEN Manuals
  4. Bicycle
  5. KABBIT
  6. Owner's manual

KASEN KABBIT Owner's Manual

Hide thumbs

Advertisement

Table of Contents

KABBIT OWNER'S MANUAL
GENERATING PURE EXCITEMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KABBIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KASEN KABBIT

Summary of Contents for KASEN KABBIT

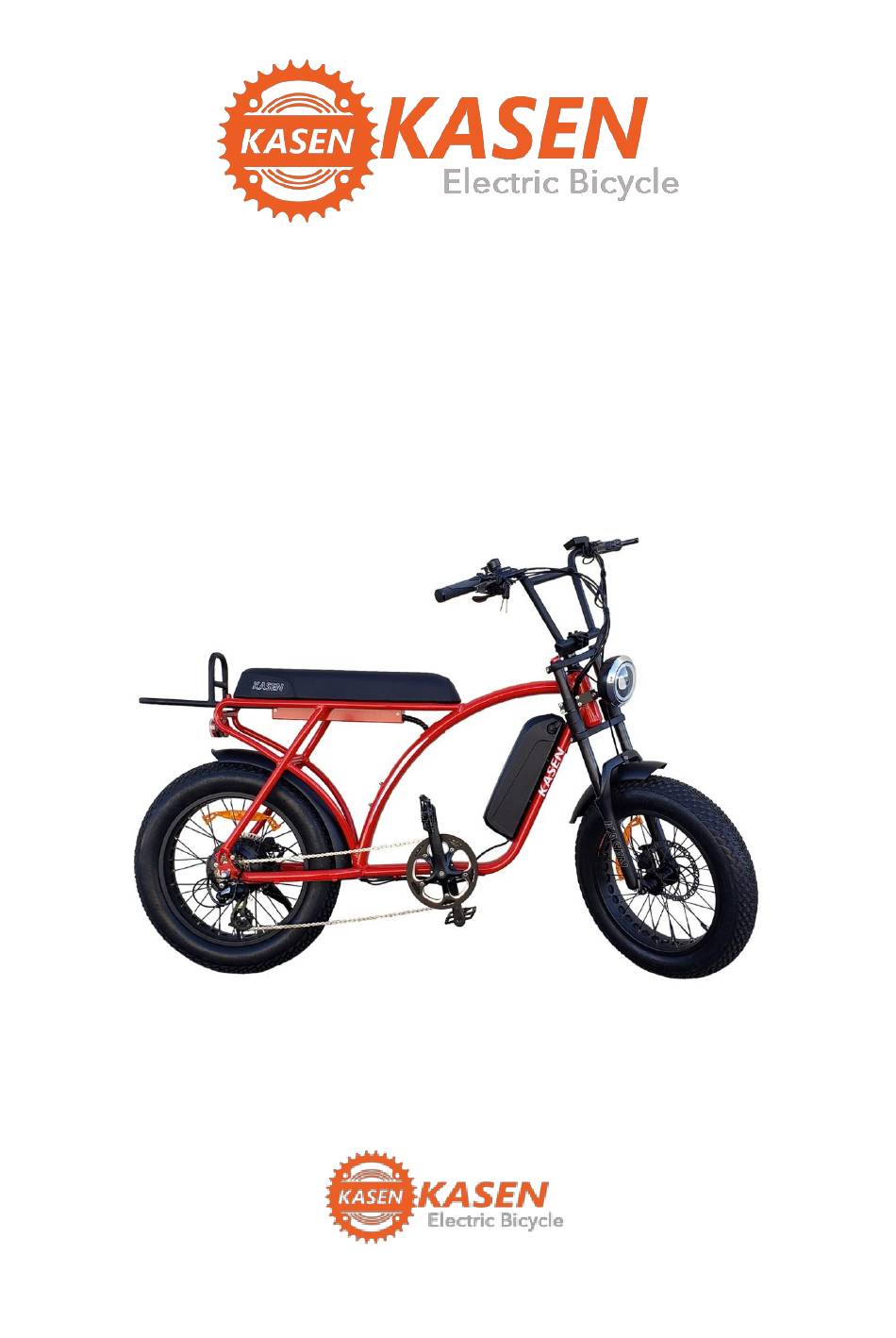

  • Page 1 KABBIT OWNER'S MANUAL GENERATING PURE EXCITEMENT...
  • Page 2 We can't thank you enough for choosing to purchase an electric e-bike from Kasen Electric Bicycles. Our mission is to make sure our customers get the utmost enjoyment out of their e-bikes and enjoy them safely. We hope you'll have a great riding experience on your new e-bike. If you decide to snap some photos of you and your e-bike on your adventures, we'd love to add them to our website's photo gallery.
  • Page 3 BEFORE YOU RIDE YOUR KASEN KABBIT Please carefully read the following information. • User assumes all risk when using the Kasen Kabbit e-bike. Read all instructions and warnings before use! If you have any questions about any instructions in this manual and the e-bike, please contact us at KasenBikeCustomerService@gmail.com...
  • Page 4 • The e-bike is not meant to be towed behind a vehicle or any other product or system, motorized or not. • This Kasen Electric Bicycle is designed with a 28mph speed limit when using pedal assist (PAS) and 21mph on throttle assist only.

  • Page 5: Riding Tips

    Such skills can be learned with this product, but care should be taken. It is recommended that any user know how to ride a bicycle before riding a Kasen Electric Bicycle. • Medical limitations – Do not use if you have an existing medical...
  • Page 6 • Weather – Your e-bike is designed to be water-resistant to rain and snow. It is not designed to be subjected to prolonged heavy rainfall or subjected to the increased water pressure that occurs when transporting an e-bike on a car or truck during rain or snow. Please protect your display from rain when transporting by car or truck.

  • Page 7: Riding Instructions

    RIDING INSTRUCTIONS • Check the e-bike before every use to make sure the e-bike and components, including, but not limited to, that wheels are secure, brakes work, and the frame is solid, to confirm they are in working order. • Check battery level before every use to confirm it is charged. General Components and use: •...
  • Page 8 Please ride within your limits. You agree not to hold Kasen Electric Bicycles liable for any injuries incurred due to riding above and beyond your limits and terrain abilities and speed.
  • Page 9 (by setting the display to level zero) when you are not using it. The motor interrupt brake levers on Kasen e-bikes stop the motor from running when they are squeezed. This adds an additional measure of...

  • Page 10: Battery And Charging

    Replacement batteries are available from Kasen to extend the life of your e-bike. When you install the battery on the Kabbit, lock it into place with the supplied key. To remove the battery, turn the key to the unlock position, then gently lift the battery out of its mount.

  • Page 11: Adjusting The Suspension Fork

    ADJUSTING THE SUSPENSION FORK The Kabbit features a MOZO suspension fork to help you ride with more comfort and control. The fork features two adjustments to fine-tune its performance. You can use these adjustments to customize your riding experience. PRELOAD ADJUSTMENT You can find the preload adjustment knob on the top of the left (from the rider's perspective) side of the fork crown.

  • Page 12: Maintenance And Service

    MAINTENANCE AND SERVICE Properly maintaining your Kabbit ensures its longevity and smooth operation. Before assembling your bike, please watch the "How To Assemble" video we've prepared for you. If you have questions during the assembly process, please contact Kasen at (800) 680-6698-3311 or email KasenBikeCustomerService@gmail.com...
  • Page 13 Class II e-bike, 1000 watts with pedal assist up to 28 MPH and throttle up to 21 MPH. You should only ride it where it's legal and safe. Your Kabbit will run without the throttle plugged in. You can remove the throttle to comply with local regulations if needed.

  • Page 14: Troubleshooting

    3. If you bent the derailleur hanger on your Kabbit in a fall, don't worry. It's actually designed to fail, sparing damage to the more expensive frame, and is inexpensive to replace for this reason.

  • Page 15: Battery Troubleshooting

    BATTERY TROUBLESHOOTING Your e-bike battery uses several sophisticated monitoring systems to prevent damage from overcharging, overheating, deep battery discharge, charging with the wrong voltage, and other errors. Please use the specific charger supplied with your bike. Other chargers may not supply the correct voltage required for charging. Even if another charger has the required voltage, it may not be programmed to initiate the charge cycle.
  • Page 16 Once charged, remove from wall power and check for proper operation. Under specific circumstances, you might see one single LED flashing constantly on the battery. One blinking LED is a warning of excessive strain on the battery for its charge level. To correct this issue: •...

  • Page 17: Warranty And Support

    909.393.3977 to diagnose and repair your Kasen Electric Bicycle. This is an integrated and final statement of Kasen Electric Bicycles limited warranty. Kasen Electric Bicycles does not authorize or allow anyone to extend any other warranties, express or implied.
  • Page 18 NOTES This owner's manual is summary information and not an exhaustive list of every possible operation, fit, troubleshooting, or maintenance scenario. Your e-bike should be assembled, maintained, and serviced by a qualified person. If in doubt about your knowledge or capabilities, please consult a bicycle industry professional for guidance.
  • Page 19 Tianjin APT Science and Technology Co., Ltd. Kabbit Display Manual Product TFT LCD Display Mode KASEN TFT500C Abbreviation 500C Client Customer audit Supplier Tianjin APT Science and Technology Co., Ltd. 1001, Building 5 HuaDing, No.1 HuaKe 3 Road, Binhai hi-tech Industrial Development...

  • Page 20: Product Name

    Tianjin APT Science and Technology Co., Ltd. 1． Product Name TFT LCD display Model : KASEN TFT 500C 3． Electrical Parameters 2.2inch IPS screen 24V/36V/48V battery supply Rated operating current : 40mA Off leakage current < 1uA Max output current to controller : 100mA Operating temperature : -20～70℃, Storage temperature : -30～80℃...

  • Page 21: Functional Description

    Tianjin APT Science and Technology Co., Ltd. Speed display : AVG SPEED, MAX SPEED, SPEED(Real-time). Kilometer / Mile : Can be set according to customers’ habits. Smart battery indicator : Provide a reliable battery indicator. 9-level Assist : 3-level/5-level/9-level optional. Mileage indicator : Odometer/Trip distance/ Clock/ Riding time.
  • Page 22 7.1 Power On/Off Press and hold Power button for 1 second can turn on/off the display. The Display can automatically shut down when there is no operate & ride for X minutes（X could be 0~9）. *If the display has been set password power on, you need to input the right password before start. 7.2 Assist level operating Short press UP/DOWN button can change the assist level.

  • Page 23: Parameter Setting

    Tianjin APT Science and Technology Co., Ltd. * This feature needs to be supported by controller. 7.6 Data cleanup Press and hold UP & DOWN buttons together for 1 second can reset several temporary data, temporary data include AVG Speed / MAX Speed / Trip / Time. * These temporary data can’t be erased by power off.
  • Page 24 Tianjin APT Science and Technology Co., Ltd. 8.3 Auto off : Press UP/DOWN button to change the auto power off time, from 1 to 9/OFF, the number represent time (minutes) to shutdown, OFF means disable auto off function, default value is 5 minutes. 8.4 Battery : ress UP/DOWN will c nge battery voltage s...
  • Page 25 Tianjin APT Science and Technology Co., Ltd. Speed Limit Speed Limit Speed Limit 60 km/h 25 km/h 10 km/h Poles in motor : Magnetic poles inside the motor, press UP/DOWN will change pole number, range 0~10. Default value is 1. Speed Poles Speed Poles Speed Poles...

  • Page 26: Connector Descriptions

    Tianjin APT Science and Technology Co., Ltd. 10． Assembly instructions M4*10 Please pay attention to the screw’s torque value, damaged caused by excessive torque is not within the scope of the warranty. 11． Connector descriptions...
  • Page 27 Tianjin APT Science and Technology Co., Ltd. 1、 Red wire : Anode(24v/36v/48V) 2、 Blue wire : Power cord to the controller 3、 Black wire : 4、 Green wire : RxD (controller -> display) 5、 Yellow wire : TxD (display -> controller) 12．...
