Summary of Contents for EKIZNSN F073

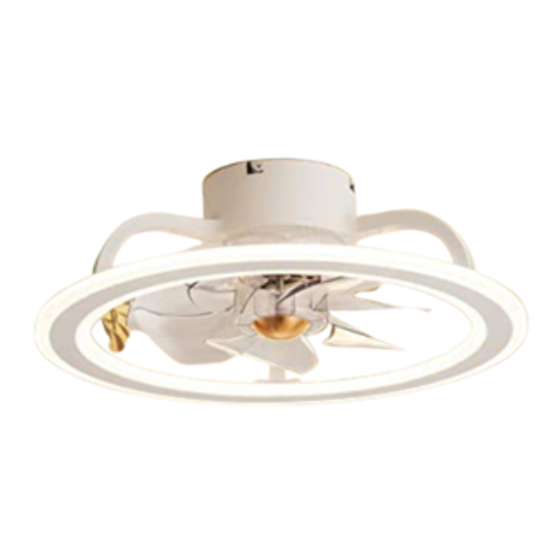

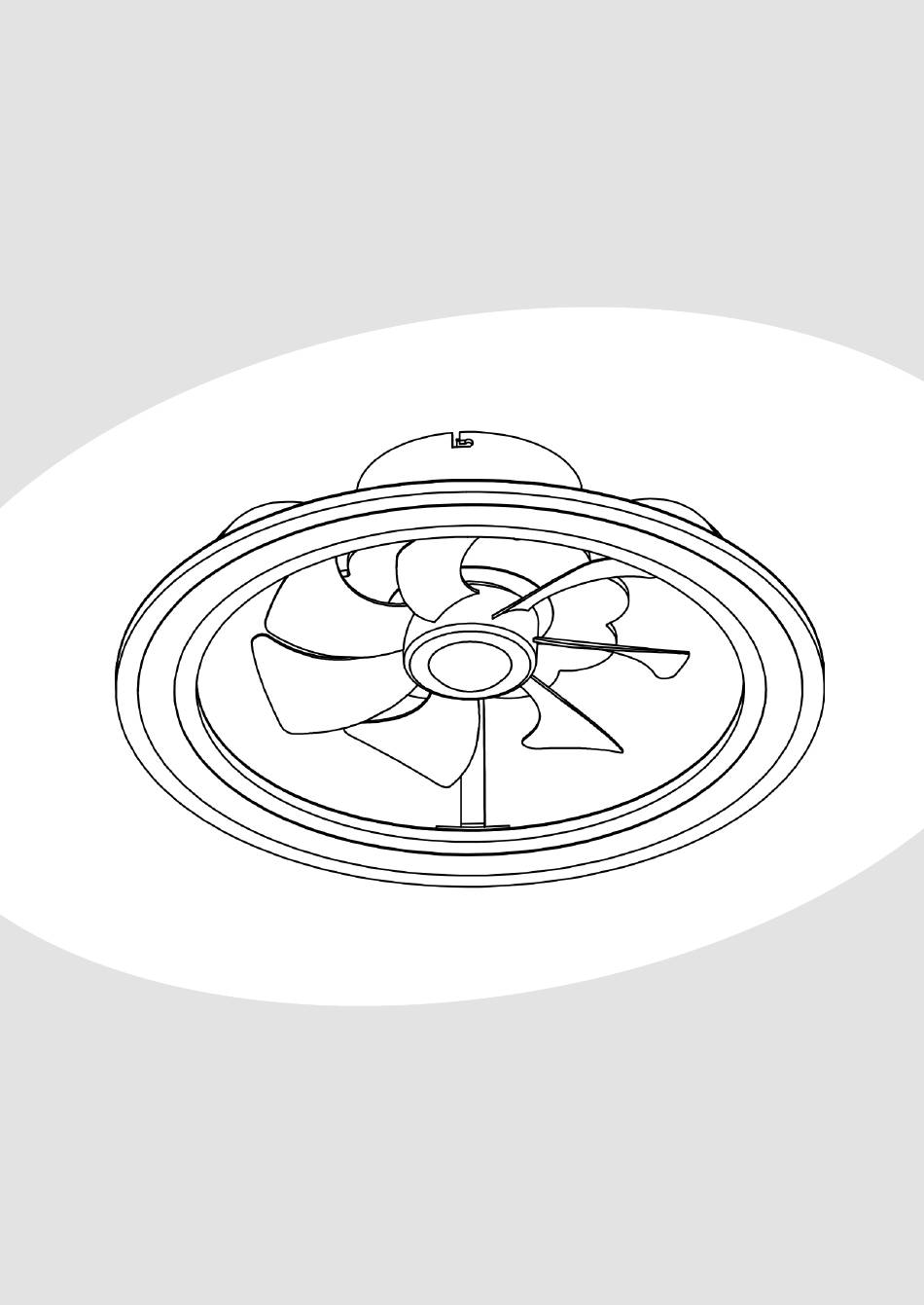

- Page 1 Owners's Manual Model: F073 Size: 20'' Weight: 9.58lbs...
-
Page 2: Safety Rules
If you are in doubt with any of the information provided or difficulty installing your fan, please the email customer service at: service_us@ekiznsn.com ▶ Before you begin installing the fan, shut power off the circuit breaker for the fuse box. -
Page 3: Bracket Installation
Bracket Installation Hanging Bracket 1. Loosen the four screws on the top and take the hanging bracket out of the fan body. 2. correctly locate the position of the hanging plate on the ceiling. Note: T h e t w o e x p a n s i o n screws shall be installed on the same line, otherwise the... -
Page 4: Wiring Preparation
Wiring Preparation 1. Rotate the bottom cap to secure it to the blades, then secure the side bolt into the cap with a hexagon wrench in case of the blades falling or loosen 2. Lift fan towards the ceiling to suspend from mounting bracket using security cable loop and washer hook. - Page 5 Wiring N(Black) L(Red) Black WARNING Disconnect the electrical supply circuit before wiring to reduce the risk of electric shock. 1. Put receiving unit into the top of the fan body and fastened it with electrical tape to avoid movement. 2. Make wire connections according to wire colors, labels and diagram above.
- Page 6 Mount Fan to Bracket Ceiling L-shape scew location hole Once wire connections are completed, lift fan body and carefully align collar with mounting bracket. Tabs on ceiling plate should seat into channel on inside of fan collar. Rotate fan so that set screw holes on fan body align with set screw holes on ceiling plate.
-
Page 7: Remote Control
Remote Control Pairing for first use: 1. Make sure the wires are connected correctly and turn on the power. 2. Turn on the light, pressing 2 keys(4,6,see as the picture above) at the same time in 5 seconds. 3. When hearing two beeps, the remote control is paired successfully. Speacial Notes About Setting Memory: •... -
Page 8: App Control
APP Control APP available at iPhone's APP Store and Android... -
Page 9: App Connection
APP Connection Here is the APP Connection Guide on iPhone: (Connection for Android devices are similar) 1. Scan the QR-Code and download the APP FanLampControl 2. Open the APP. If your Bluetooth is off, the notification will pop up. Go to Settings, then open the Bluetooth and open “Allow New Connection”FanLampControl APP 3. -
Page 10: Maintenance
Maintenance Here are some suggestions to help maintain your fan • Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachment twice a year. Make sure they are secure. • Clean your fan periodically to help maintain its new appearance over the year. -
Page 11: Troubleshooting
Troubleshooting Please read all installation instructions carefully. After reviewing the following tips, if you are unable to solve a problem, please contact customer service for additional assistance Fan makes humming noise • Be sure you are using the control set supplied with your fan •... - Page 12 For Any Problems Contact Customer Service: service_us@ekiznsn.com...
Need help?
Do you have a question about the F073 and is the answer not in the manual?
Questions and answers
Fan will not run but light works
If the EKIZNSN F073 fan is not running while the light works, possible causes include:
- The fan motor wire connections at the ceiling or receiver may be loose or incorrect.
- The receiver may not be properly connected to the fan motor.
- The remote or app may not be controlling the fan due to incomplete pairing.
- The fan may need a "break-in period" if it's new.
Check all wire connections and ensure the fan is properly paired with the remote or app.
This answer is automatically generated
I’m missing mount bracket for the fan . Where can I purchase one
