Summary of Contents for EKIZNSN F073

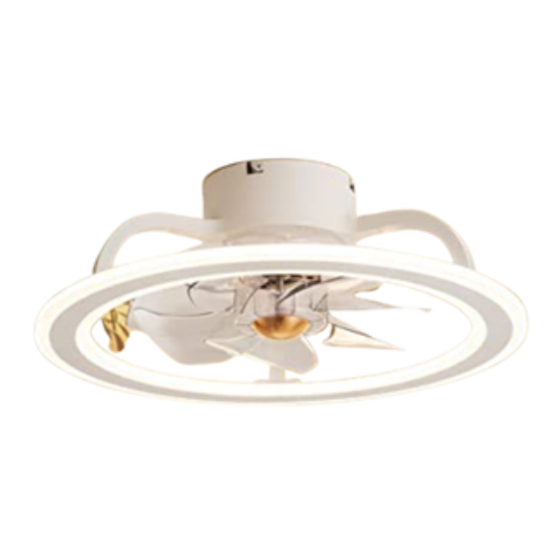

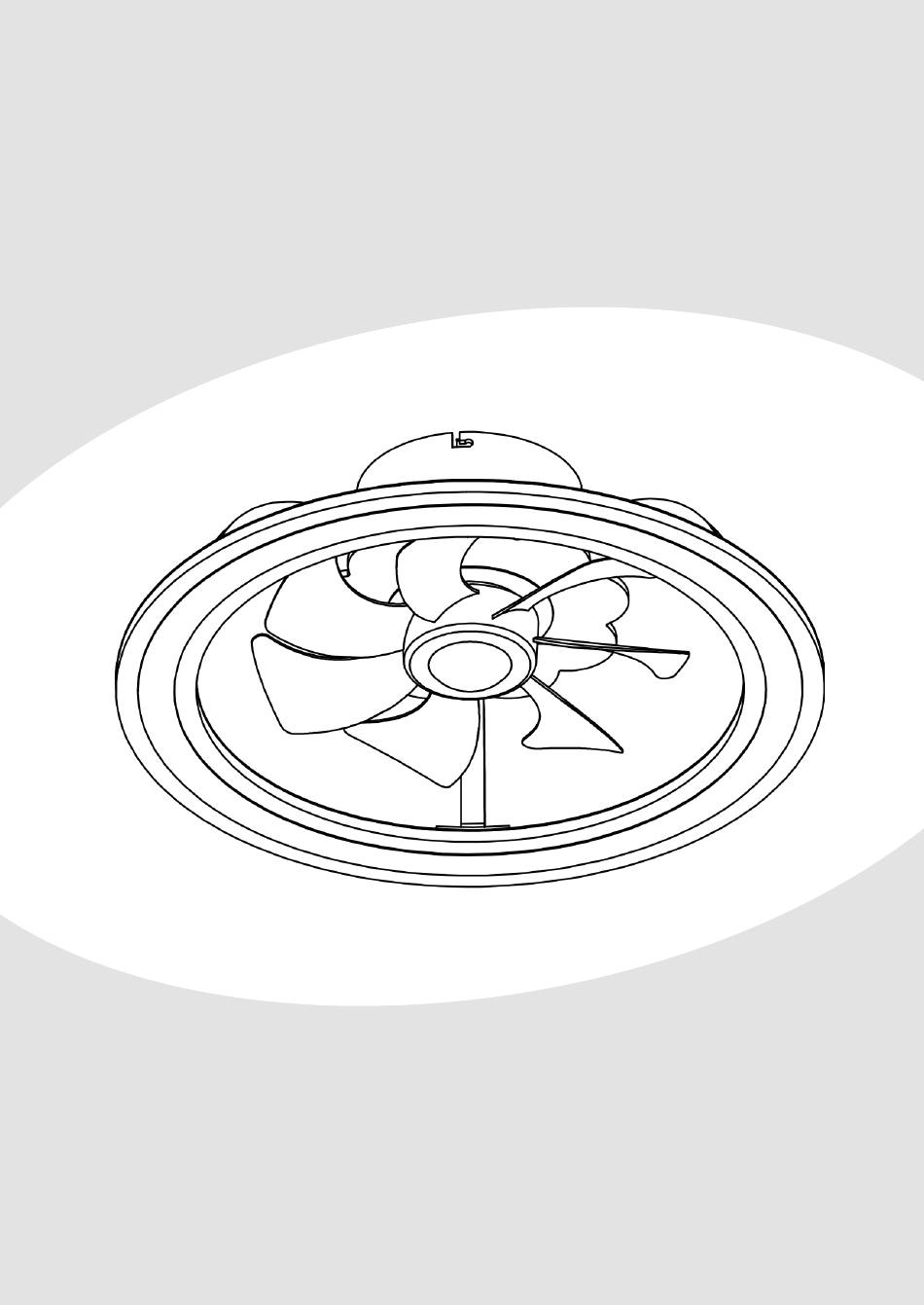

- Page 1 Owner's Manual Model: F073 Size: 20'' Weight: 9.58lbs...
-
Page 2: Safety Rules
If you are in doubt with any of the information provided or difficulty installing your fan, please the email customer service at: service_us@ekiznsn.com ▶ Before you begin installing the fan, shut power off the circuit breaker for the fuse box. - Page 3 Plate Installation Attach the mounting plate to the ceiling. There are two types of screws included in the pack. • For wooden ceiling Drilling a pilot hole in Wood screw your ceiling with the power drills first, then secure the plate with wood screws ceiling Mounting Plate...
-
Page 4: Wiring Preparation
Wiring Preparation 1. Rotate the bottom cap to secure it to the blades, then secure the side bolt into the cap with a hexagon wrench in case of the blades falling or loosen 2. Lift fan towards the c e i l i n g t o s u s p e n d from mounting bracket using security cable J-HOOK... - Page 5 Wiring Live(Black) Neutral(White) Black White WARNING Disconnect the electrical supply circuit before wiring to reduce the risk of electric shock. 1. Put receiving unit into the top of the fan body and fastened it with electrical tape to avoid movement. 2.
- Page 6 Mount Fan to Bracket L-shape scew location hole Once wire connections are completed, lift fan body and carefully align collar with mounting bracket. Tabs on ceiling plate should seat into channel on inside of fan collar. Rotate fan so that set screw holes on fan body align with set screw holes on ceiling plate.
-
Page 7: Remote Control
Remote Control CAUTION If the indicator light does't bright while pressing any buttons, then check the battery first. It may be reversed or out of power. CAUTION The remote is pre-paired with the fan. If the remote does not work, please re-pair as follow: Long press the "Pair Code"... -
Page 8: App Control
APP Control APP available at iPhone's APP Store & Google Play Store on Andorid. Caution If the QR-Code above is not valid, please scan the code below. -
Page 9: App Connection
APP Connection Here is the APP Connection Guide on iPhone: (Connection for Android devices are similar) 1. Scan the QR-Code to download the APP and register an account as perthe instructions 2. Log in the account, and click "+" to add the device. You can edit the device name, room, and choose the device type(such like fan light) 3. -
Page 10: Maintenance
Maintenance Here are some suggestions to help maintain your fan • Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachment twice a year. Make sure they are secure. • Clean your fan periodically to help maintain its new appearance over the year. -
Page 11: Troubleshooting
Troubleshooting Please read all installation instructions carefully. After reviewing the following tips, if you are unable to solve a problem, please contact customer service for additional assistance Fan makes humming noise • Be sure you are using the control set supplied with your fan •... - Page 12 For Any Problems Contact Customer Service: service_us@ekiznsn.com...
