GLOBIZ 55069A Quick Start Manual

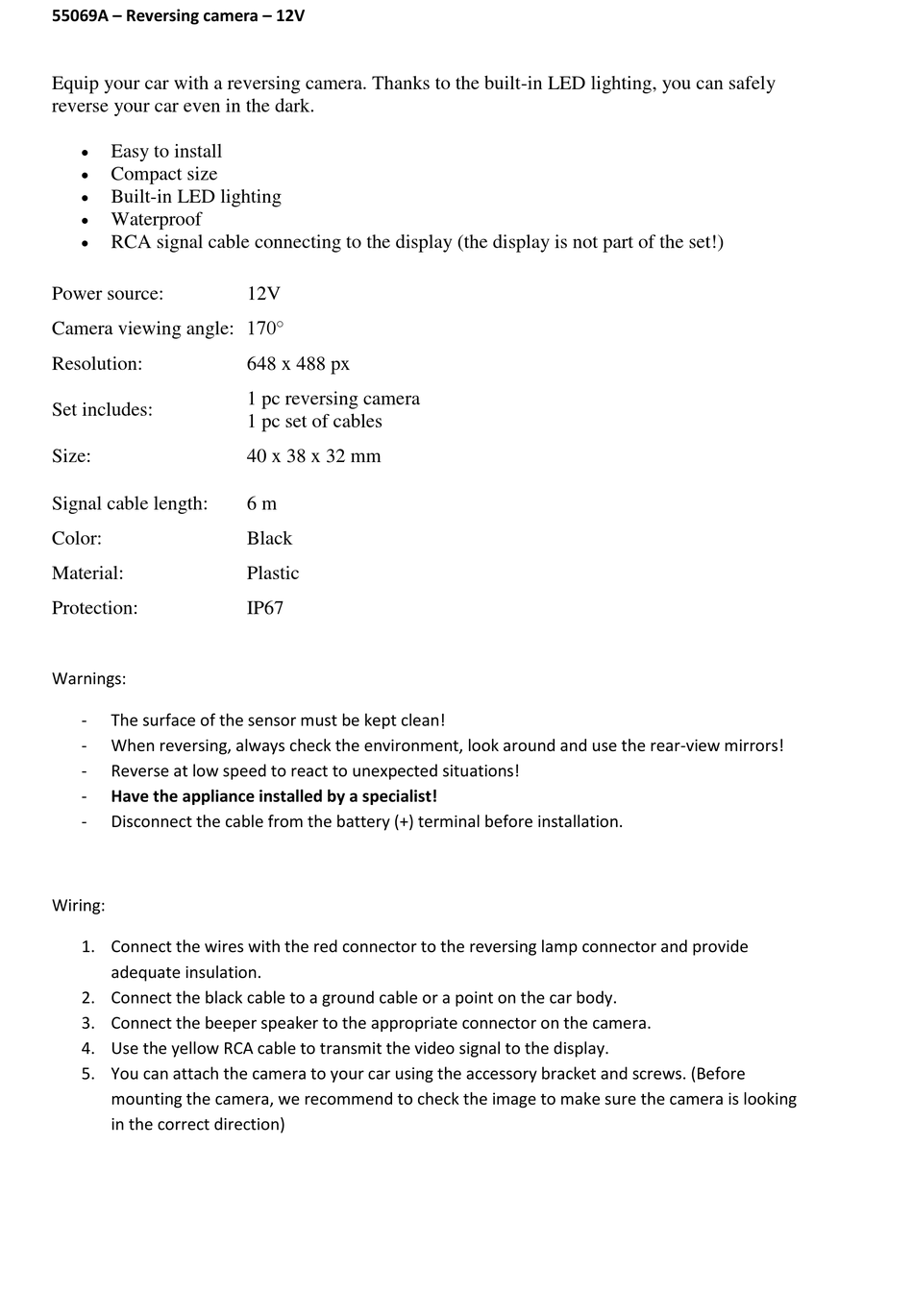

55069A – Reversing camera – 12V

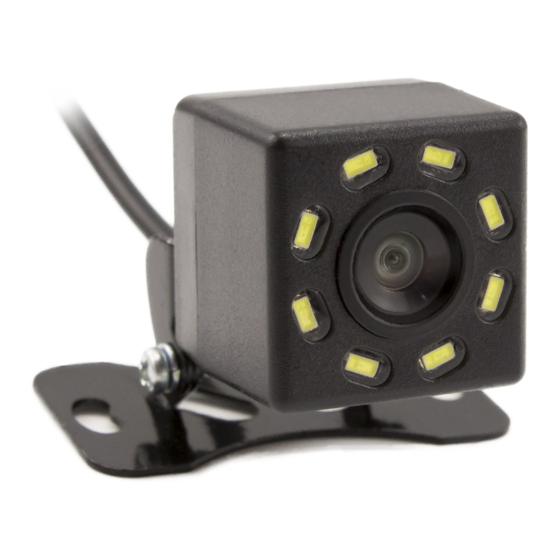

Equip your car with a reversing camera. Thanks to the built-in LED lighting, you can safely
reverse your car even in the dark.

Easy to install

Compact size

Built-in LED lighting

Waterproof

RCA signal cable connecting to the display (the display is not part of the set!)
Power source:
Camera viewing angle: 170°
Resolution:
Set includes:
Size:
Signal cable length:
Color:
Material:
Protection:
Warnings:
- The surface of the sensor must be kept clean!
- When reversing, always check the environment, look around and use the rear-view mirrors!
- Reverse at low speed to react to unexpected situations!
- Have the appliance installed by a specialist!
- Disconnect the cable from the battery (+) terminal before installation.
Wiring:
1. Connect the wires with the red connector to the reversing lamp connector and provide
adequate insulation.
2. Connect the black cable to a ground cable or a point on the car body.
3. Connect the beeper speaker to the appropriate connector on the camera.
4. Use the yellow RCA cable to transmit the video signal to the display.
5. You can attach the camera to your car using the accessory bracket and screws. (Before
mounting the camera, we recommend to check the image to make sure the camera is looking
in the correct direction)
12V
648 x 488 px
1 pc reversing camera
1 pc set of cables
40 x 38 x 32 mm
6 m
Black
Plastic
IP67
