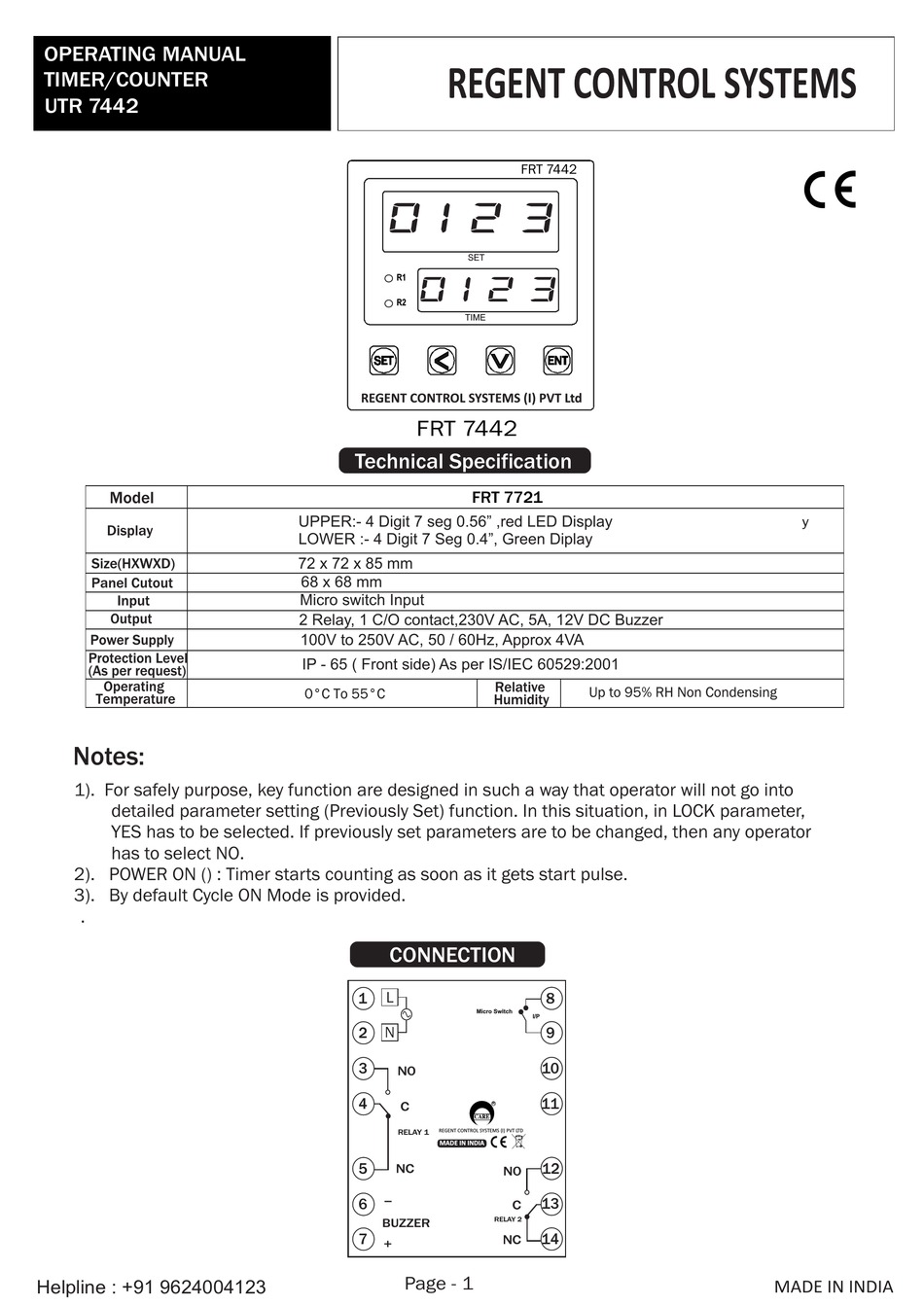

OPERATING MANUAL
TIMER/COUNTER
UTR 7442
Notes:
1). For safely purpose, key function are designed in such a way that operator will not go into
detailed parameter setting (Previously Set) function. In this situation, in LOCK parameter,
YES has to be selected. If previously set parameters are to be changed, then any operator
has to select NO.
2). POWER ON () : Timer starts counting as soon as it gets start pulse.
3). By default Cycle ON Mode is provided.
.
Helpline : +91 9624004123
REGENT CONTROL SYSTEMS
0 1 2 3
SET
R
R1
0 1 2 3
R2
TIME
REGENT CONTROL SYSTEMS (I) PVT Ltd
FRT 7442
Technical Specification
FRT 7721
UPPER:- 4 Digit 7 seg 0.56" ,red LED Display
LOWER :- 4 Digit 7 Seg 0.4", Green Diplay
72 x 72 x 85 mm
68 x 68 mm
Micro switch Input
2 Relay, 1 C/O contact,230V AC, 5A, 12V DC Buzzer
100V to 250V AC, 50 / 60Hz, Approx 4VA
IP - 65 ( Front side) As per IS/IEC 60529:2001
CONNECTION
L
1
2
N
3
N0
4
C
REGENT CONTROL SYSTEMS (I) PVT LTD
RELAY 1
MADE IN INDIA
5
NC
_
6
BUZZER
7
+
Page - 1
FRT 7442
8
Micro Switch
I/P
9
10
11
R
CARE
12
N0
13
C
RELAY 2
14
NC
MADE IN INDIA
Advertisement
Table of Contents
Related Manuals for Regent Control Systems FRT 7721
Summary of Contents for Regent Control Systems FRT 7721
- Page 1 UTR 7442 FRT 7442 0 1 2 3 0 1 2 3 TIME REGENT CONTROL SYSTEMS (I) PVT Ltd FRT 7442 Technical Specification FRT 7721 UPPER:- 4 Digit 7 seg 0.56” ,red LED Display LOWER :- 4 Digit 7 Seg 0.4”, Green Diplay...
- Page 2 85mm DIMENSIONS SET TIME REGENT CONTROL SYSTEMS (I) Pvt Ltd 1) Prepare the panel cutout with proper dimensions as show above. 2) Fit the unit into the panel with the help of clamp given. 3) The equipment in its installed state must not come in close proximity to any heating source, caustic vapors, oils steam, or other unwanted process by products.
