- Page 1 Elite 3500 Instruction Manual...
- Page 2 Ethos Welcome to techtron® by combining passion, drive and intellect with market leading research and cutting-edge technology, we innovate and deliver premium quality products that excite, inspire and challenge the sector. Striving for perfection, embracing new ideas and investing in the future is our ethos.
-
Page 3: Table Of Contents
Contents Product and Accessories Assembly Charging Display Panel Function Folding techtron® Smart App Maintenance and Warranty Rider Guidance, Safety and Specifications Troubleshooting IMPORTANT! Read carefully and keep for future reference. -
Page 4: Product And Accessories

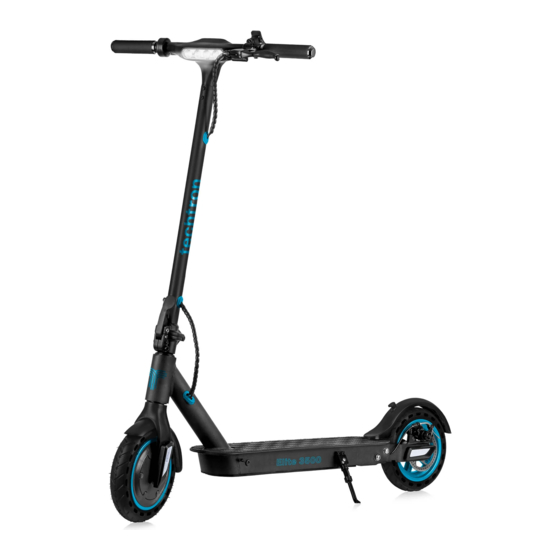

Product and Accessories Accelerator Main display panel Brake lever Folding handle and lock Footstep Battery compartment Motor wheel Charger port Front and rear lights Rear wheel disc brake Kickstand... - Page 5 Product and Accessories M3 hex key x1 M5 hex key x1 M3 hex screws x4 Charging adaptor x1...
-
Page 6: Assembly
Assembly Install the crossbar onto the standpipe. Using the M3 hex key, fasten the crossbar onto the standpipe with the four M3 hex screws. - Page 7 Assembly Unfold the scooter standpipe, move the handle into position and lock the folding mechanism in place. Make sure the brake lever is installed in the desired position. Use the M5 hex key to loosen and tighten the fixing.
-
Page 8: Charging
Charging To charge the techtron® eScooter simply open the rubber stopper on the side of the base and plug into the power supply. Please allow 5-6 hours for the eScooter’s battery to fully charge. Replace the stopper after charging to prevent water damage. -
Page 9: Display Panel Function
(see page 12). The app allows the user to set a pre-determined speed for each speed mode. The display can also be configured to show speed in mph or km/h using the techtron® app. Display panel button To turn the eScooter ON/OFF, hold down the button on the main display panel for two seconds. -
Page 10: Folding
Folding... - Page 11 Folding Folding mechanism The Elite 3500 can be easily folded for carrying and transporting. First unlock the standpipe in figure 1, then collapse the scooter and hook onto the folding clasp located on the rear mudguard as shown in figure 2.
-
Page 12: Techtron® Smart App
Smart App Your eScooter can be configured using the techtron® smart app. Use it to set up your desired settings such as riding mode and speed limiter. You can even lock the scooter to prevent unauthorised access. Please note - the eScooter will remember all settings applied in the techtron®... - Page 13 Smart App Home screen View the remaining range of your eScooter, so you can plan your journey. Light - Turn the main light On/Off. Settings - Access further controls. Lock - Secure your eScooter against Trip Info unauthorised access.
-
Page 14: Maintenance And Warranty
Maintenance and Warranty Standpipe shake Should your eScooter’s standpipe develop a slight shake over time, it may be necessary to tighten the two folding mechanism screws, using the M3 hex key. - Page 15 Maintenance and Warranty Brake adjustment To tighten the brakes, simply insert the M5 hex key into the slot and turn counterclockwise to release the pressure plate screw. Return the brake line to make the exposed tail length slightly longer, then lock the pressure plate screw.
- Page 16 Terms & Conditions/Exclusions apply, please see website for further details. Product registration For exclusive offers, product support and information on the latest techtron® innovations, register your product by completing the form on the website with your serial number and details - https://techtron.co/pages/warranty Battery maintenance and disposal Do not touch the battery contacts, and do not open or expose the shell.
-
Page 17: Rider Guidance, Safety And Specifications
Current Limit 16A+/-0.5V Motor Type Brushless DC The techtron® eScooter is designed to perform best on smooth dry surfaces, therefore avoid riding IP Rating IPX4 on uneven gravel, sand, grass, slick or wet surfaces. Foldable Never ride over curbs or jump. -
Page 18: Troubleshooting
Troubleshooting Error codes and what they mean Faults with techtron® eScooters rarely happen, but if you’re unfortunate enough to encounter a problem, just cross reference the error code shown on the scooter’s display panel with the ones listed in the table opposite. - Page 19 Troubleshooting Error code Description Solution Short circuit Check for a short circuit in the wiring/installation or replace the controller to eliminate the fault. Sub-motor Check the connection line between the secondary communication failure and primary controller. (dual drive models only) Display panel First check the connection wire between the display communication failure...
- Page 20 Unit 2, Jowett Street, Bradford, BD1 2JX. UK. e: info@techtron.co 01274 307310 w: techtron.co Research & Development 2100 Geng Road, Suite 210, Palo Alto, California, 94303 USA . e: info@techtroncalifornia.com w: techtroncalifornia.com techtron® is a division of Multibrands International Ltd. V02 15.6.2022...
