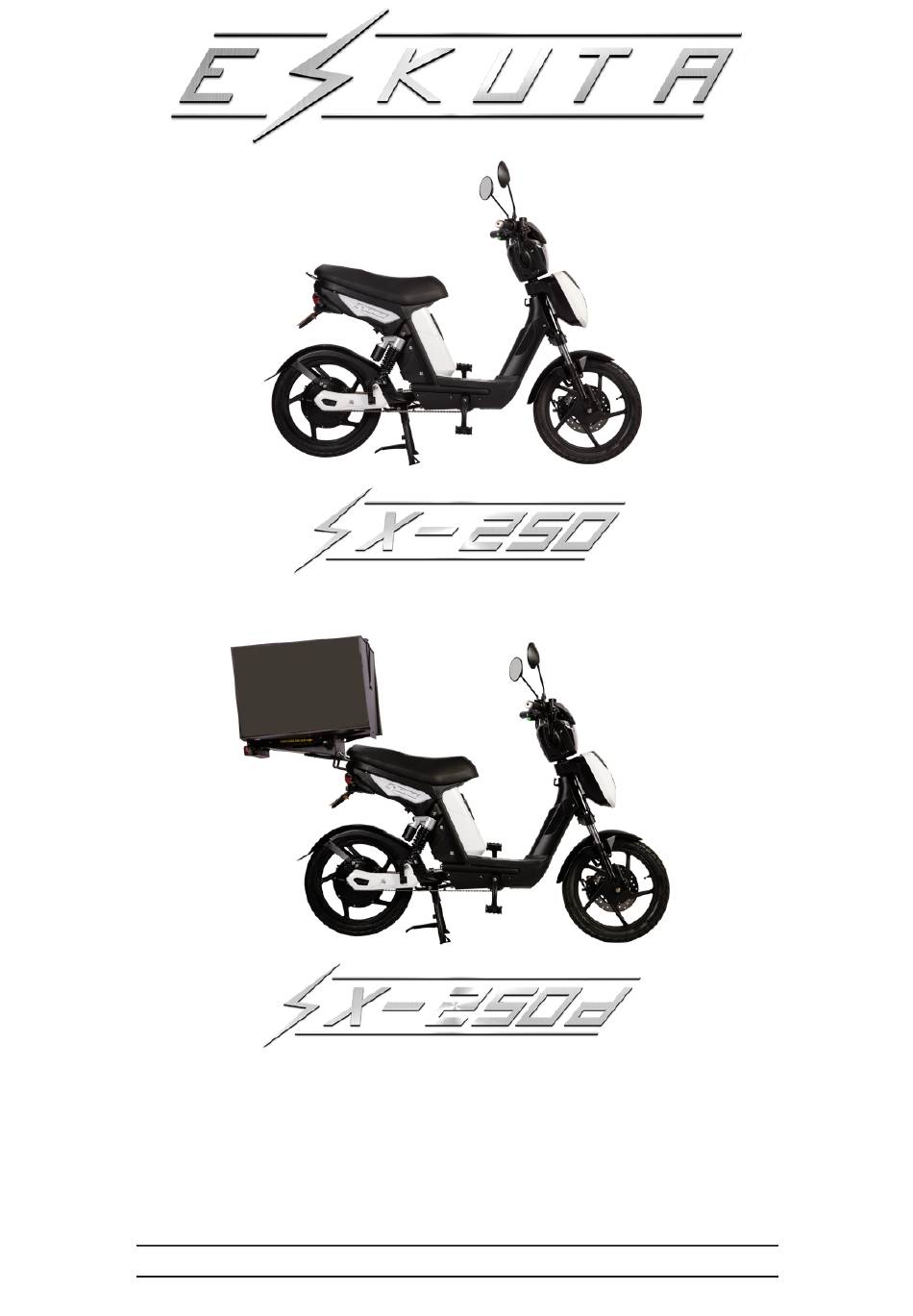

Your Model Information Your Name Your Address VIN No Colour Date of Purchase Dealer who sold the Eskuta Dealer Address Once you have completed the above details, then please scan and forward a copy to: registration@eskuta.com Owners Handbook...
We don’t conform to convention; we are the creators of the unorthodox. You can now go further, further than you’ve ever been before, have freedom and not be constrained by the conventional. You know who you are…Just ride and go on your Eskuta. THE FUTURE OF URBAN MOTION Contents...
How to charge your Eskuta The bike can be charged in two ways: METHOD ONE 1. Insert the key into the 2. Turn to the right and the 3. Unplug the power cable seat lock seat will pop open from the battery 4.
Charging your Eskuta ABOUT CHARGING Before riding your Eskuta for the first time, you must charge the battery for a minimum of 8 hours using the supplied charger. PLEASE NOTE If the bike has not been used for a long period, please note that charging should be executed periodically, normally a minimum of once per month, to maintain life time of the battery.
Lights 1. On the right handlebar flick over once to turn the tail light on only. 2. Flick the switch over twice to turn on the tail light and the front light. Indicators 1. Flick the switch left or right depending on which way you are turning.
How to Ride Your Eskuta Press and Hold the green walk mode button to get up to 4mph/6kph. 2. Release the walk mode button when up to 4mph/6kph. 3. Then start pedalling! 4. To slow down, simply stop pedalling and/or...
Fault Finding & Help DESCRIPTION ANALYSIS OF MALFUNCTION WAY OF ELIMINATING OF MALFUNCTION Screen does not (1) low voltage of battery (1) charge the battery light up when (2) circuit breaker not in ‘on’ position (3) turn to ‘on’ position ignition is switched on with key (1) low voltage of battery...
The rider must at all times keep both hands on the handlebars and both feet on the pedals during operation to maintain control of the Eskuta Eskuta’s are only designed to carry tandem riders up to a maximum of 120 kg which is a combination of the rider and passenger...
Page 10
Ride where other motorists can see you. Avoid riding in another motorist’s blind spot Never maintain your Eskuta without proper knowledge. Contact an authorised Eskuta dealer to inform you on basic maintenance. Certain maintenance can only be carried out by certified Eskuta engineers Many accidents have been caused by error of the cycle operator.
Page 11
LOADING Adding accessories or cargo to your Eskuta other than with the use of standard or approval Eskuta accessories, can adversely affect stability and handling if the weight distribution is changed. To avoid the possibility of an accident, use extreme caution when adding cargo or accessories to your Eskuta.
Technical Specification Standards Motor type Brushless Motor Motor rated power - Watt 249W Motor rated voltage - V Engine Power Consumption 1-2kW.h / 100km - kW•h/100km Speed - km/h – mp/h 25km/h - 15.5 mp/h Range - km - miles Max.
Know your Eskuta OTHER SIDE OTHER SIDE 8.Rear drum brake 1. Headlight 15. Side stand 9. Rear shocker absorber 2. Charging base 16. Main stand 10. Front fork 3. Seat 17. Rear footrest 11. Front disc brake 4. Tool Box 18.
Adjustment of Parts ADJUSTMENT OF BRAKES Loosen the brake wire locking screw Turn adjusting screw so that the wheel turns freely when the brake lever is not held Tighten the brake wire locking screw Ensure that the brake is fully applied when pulling the brake lever at least 20mm before it touches the handlebar.
Maintenance and Service The following are guidelines only. You should check the wear and tear of your Eskuta each time prior to riding to ensure the longevity and safety of your Eskuta bike. WEEKLY CHECK LIST Check your Eskuta is clean and free from dirt Check the front brake reservoir is above the minimum level.
Use lubrication oil to maintain the chain and rear wheel sprocket. Oil should not be applied to any other part of the Eskuta PARTS A full range of parts are available directly from Eskuta or one of our resellers. Please telephone with any requirements. Owners Handbook...
Eskuta Limited. Warranty services include the costs of parts 3. Eskuta reserves the right of change in order to improve the and reasonable labour up to a maximum labour charge of performance of products, no further notice will be given £75.00, but doe’s not include the cost of shipment, packaging or...
Page 18
@eskutauk @eskutauk facebook.com/eskuta +44 (0)2476 350150 ESKUTA LIMITED. UNIT 5 BERMUDA INNOVATION CENTRE, ST. DAVID’S WAY, BERMUDA PARK. NUNEATON, WARWICKSHIRE. CV10 7SD. REG No: 09042298Owners Handbook...
