hygn.me Station 3 Assembly Instruction

hy there! let's
assemble

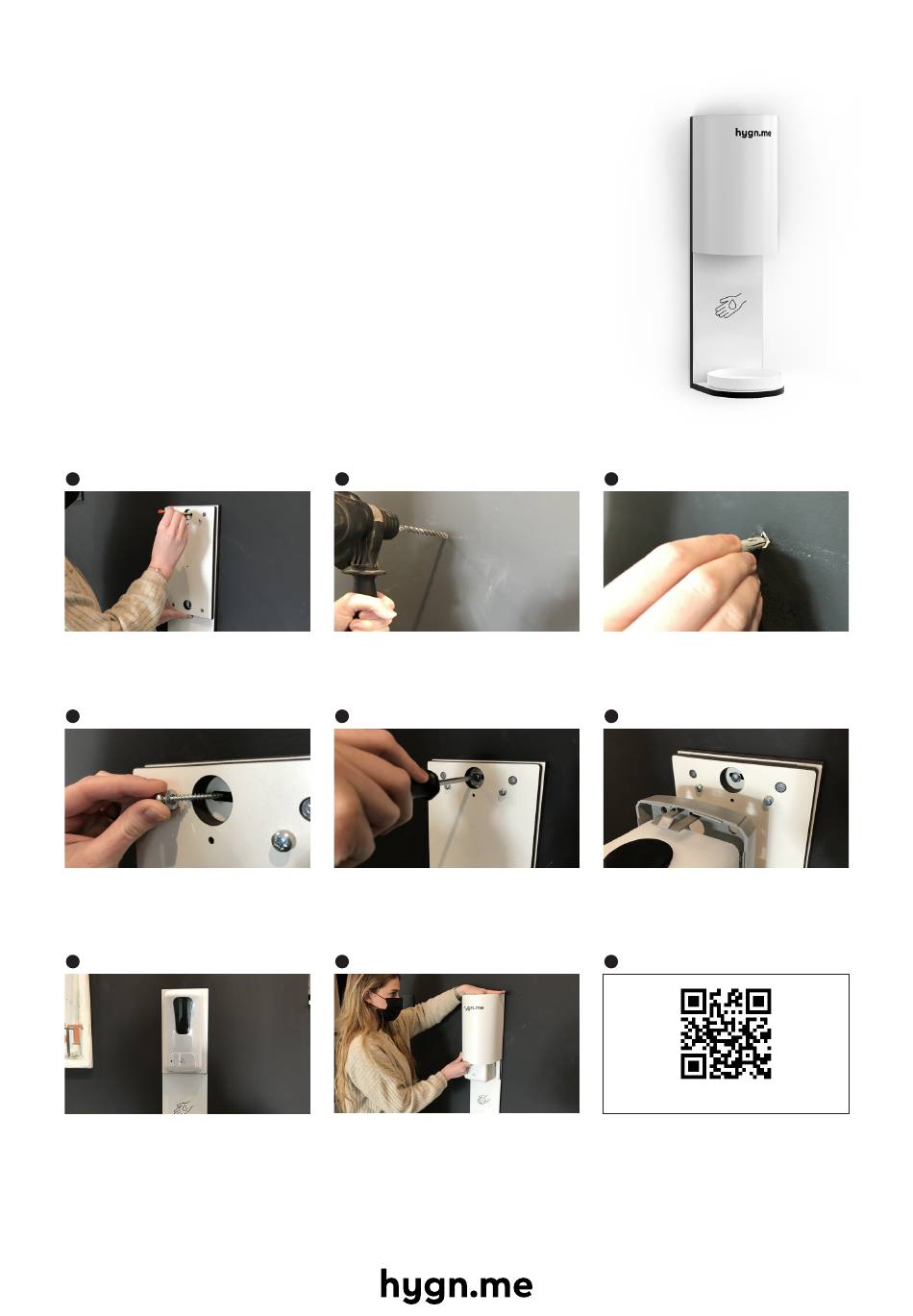

assembly instruction
1
Hold the pre-assembled station without
the dispenser against the wall in a com-
fortable hight and mark the drill holes
through the slits.
4
Hold the station against the wall, aligning
the slits with the holes. Insert the screws
and washers into the holes through the
slits.
7
Fill the canister with disinfectant and
insert the batteries. Close the lid and turn
the dispenser on, using the switch on the
right side.
WSP Wagner-Service-Partner GmbH & Co. KG . Niederlassung Berlin . Waisenstraße 30 . 10179 Berlin
Station 3 wall
2
Drill two holes using an 8mm bit.
5
Fasten the screws by turning in a clockwi-
se motion. Beware not to overtighten.
8
Attach the metal hood to the station and
place the melamine tray in the slot.
Fon +49 30 255 58 11 66 . beratung@hygn.me . hygn.me
3
Insert the provided screw anchors into
the holes.
6
Attach the dispenser.
9
www.hygn.me/service
