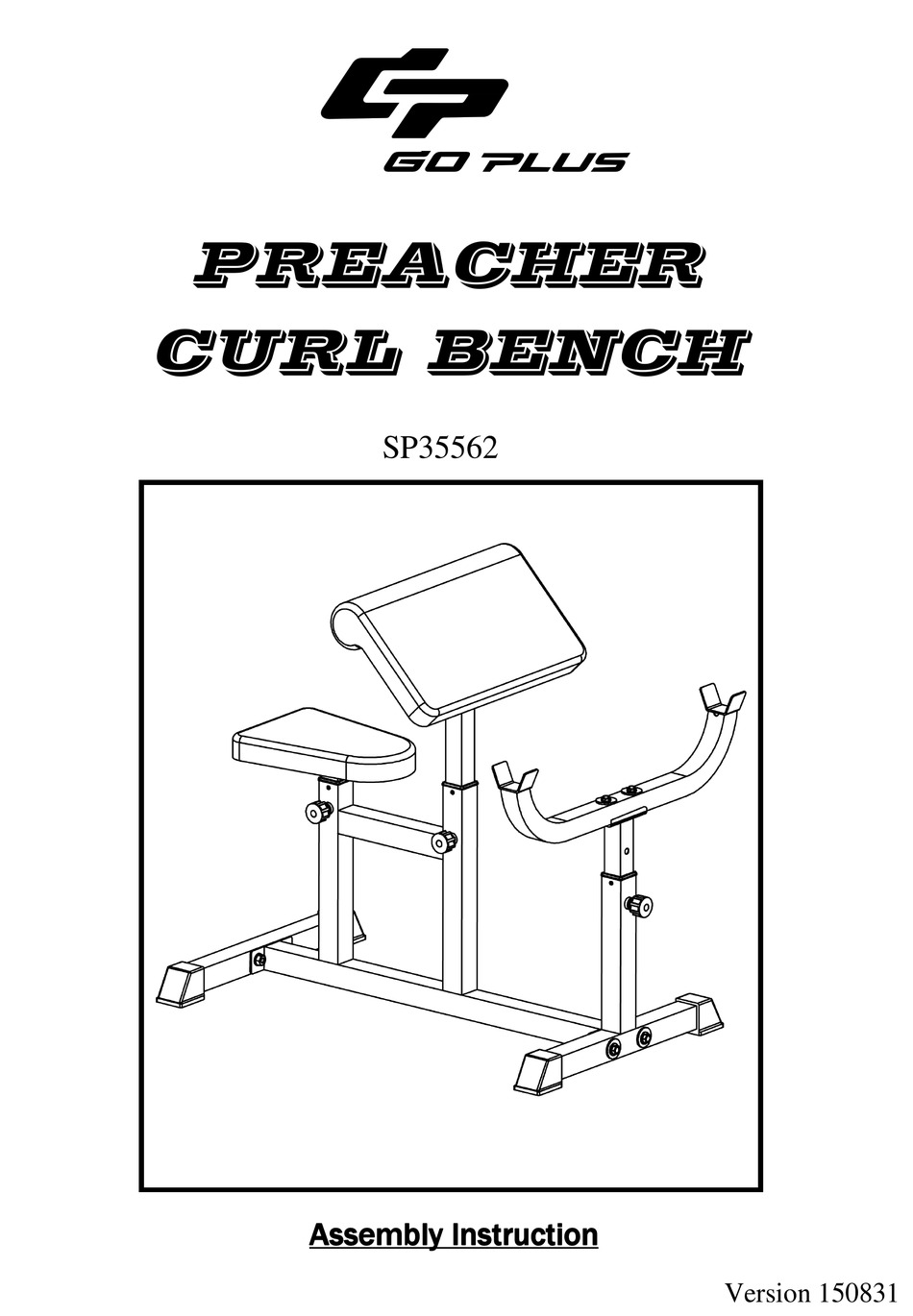

- Page 1 PREACHER CURL BENCH SP35562 Assembly Instruction Version 150831...
- Page 2 EXPLODED-VIEW ASSEMBLY DRAWING PART LIST PART NO. DESCRIPTION Main Frame Back Base Tube Front Stand Tube Adjustable Frame Bar Support Frame Arm Curl Frame Seat Frame Foot Cap Quick Pin □45x38 Plug Arm Curl Cushion Seat M10x65 Hex Bolt M10x60 Hex Bolt M8x20 Hex Bolt M10 Washer M8 Washer...
- Page 3 ASSEMBLY DRAWING Step 1 Assembly of the base frame and main frame 1) Screw together the back base tube (2) to the main frame (1), secured with M10x65 hex bolt (13-2pcs), M10 washer (16-4pcs) and M10 nylon nut (18-2pcs). 2) Screw together the front base tube (3) to the main frame (1), secured with M10x65 hex bolt (13-2pcs), M10 washer (16-4pcs) and M10 nylon nut (18-2pcs).
