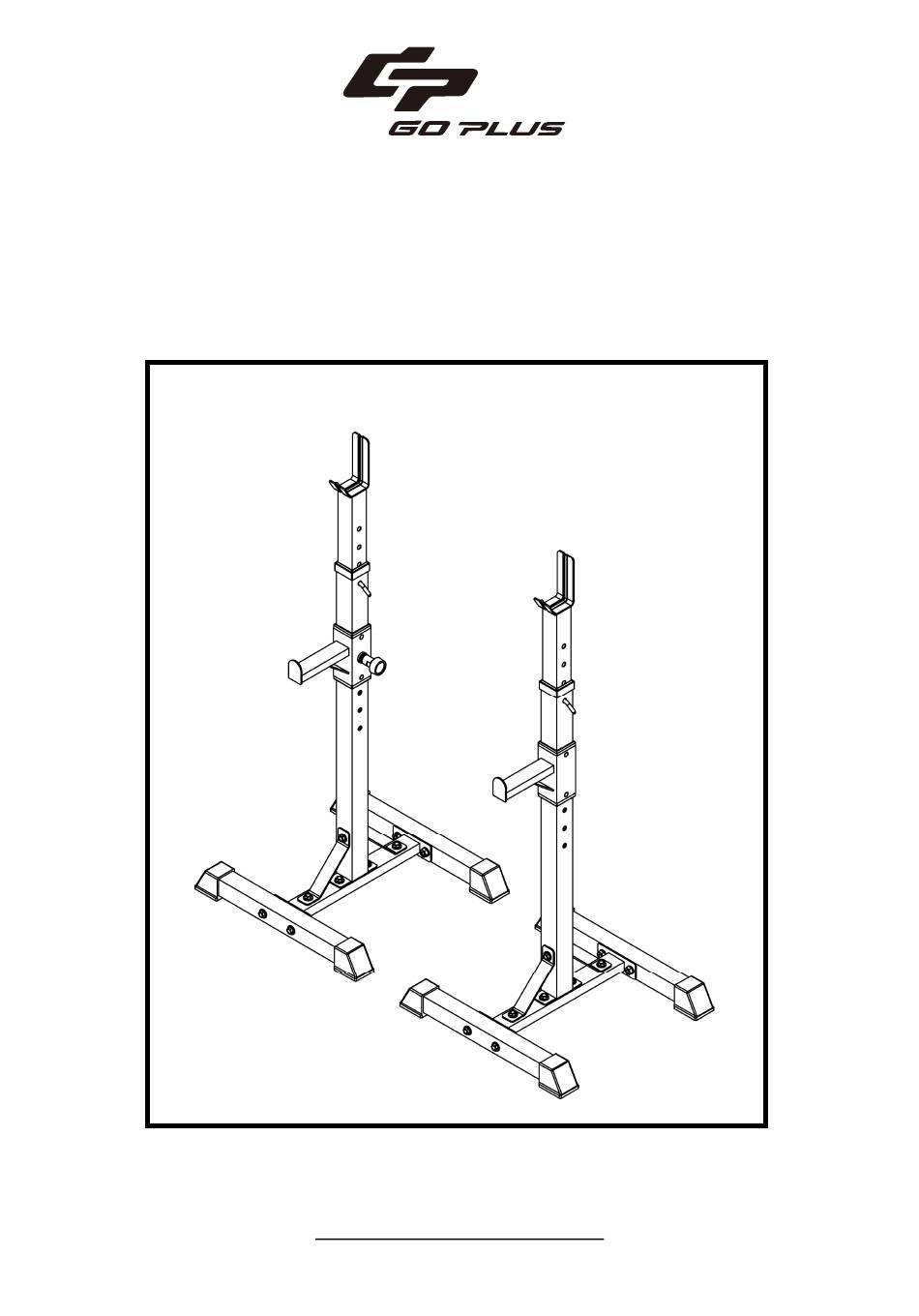

- Page 1 Bar Support Rack SP35516 Assembly Instruction Version 151216...
- Page 2 EXPLODED DRAWING PART LIST PART NO. DESCRIPTION Base Tube Connect Tube Stand Tube Adjustable Tube Support Tube Support Plate Safety Pin Quick Pin Foot Cap 60x50 Mid-empty Plug 50x45 Mid-empty Plug M10x65 Hex Bolt M10x40 Hex Bolt M10x70 Hex Bolt M10 Washer M10 Nylon Nut...
- Page 3 ASSEMBLY DRAWING Step 1 Assembly of the base frame 1) Assemble the foot cap (9) to the base tube (1). 2) Screw together the base tube (1) to the connect tube (2), secured with hex bolt (12-4pcs), washer (15-8pcs) and nylon nut (16-4pcs). Step 2 Assembly of the stand tube 1) Screw together the stand tube (3) to the connect tube (2), secured with hex bolt...
- Page 4 Step 3 Assembly of the support tube 1) Insert the adjustable tube(4) into the stand tube(3), locked with quick pin(8).then put the 60x50 mid-empty plug(11) onto the stand tube(3). Insert the support tube(5) into the stand tube(3), locked with safety pin(7).
