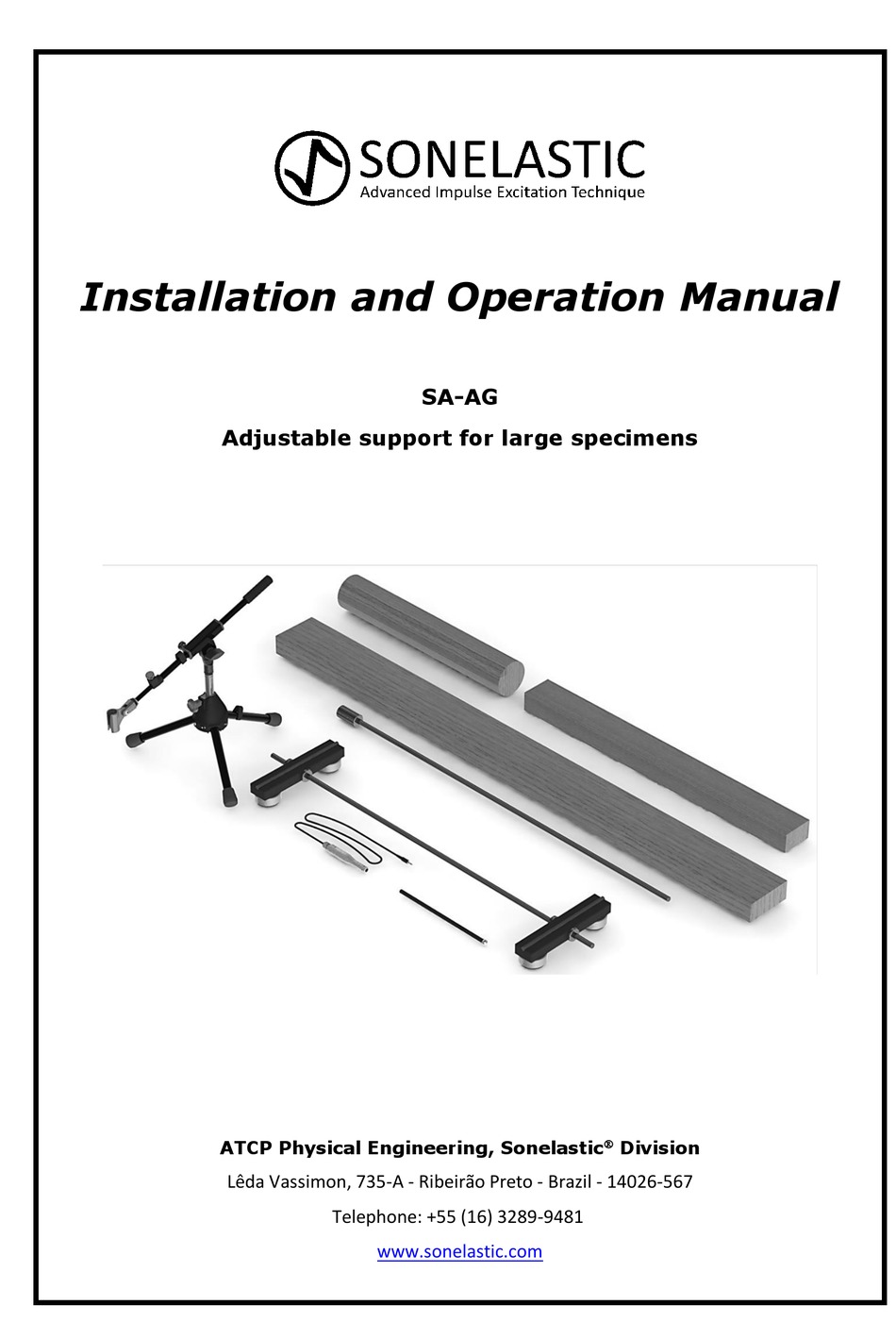

Installation and Operation Manual
SA-AG
Adjustable support for large specimens
ATCP Physical Engineering, Sonelastic
Division
Lêda Vassimon, 735-A - Ribeirão Preto - Brazil - 14026-567
Telephone: +55 (16) 3289-9481
www.sonelastic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-AG and is the answer not in the manual?

Questions and answers

Summary of Contents for Sonelastic SA-AG

  • Page 1 Installation and Operation Manual SA-AG Adjustable support for large specimens ATCP Physical Engineering, Sonelastic  Division Lêda Vassimon, 735-A - Ribeirão Preto - Brazil - 14026-567 Telephone: +55 (16) 3289-9481 www.sonelastic.com...
  • Page 2 Sonelastic ® Systems SA-AG Adjustable support for large specimens Installation and Operation Manual SA-AG Adjustable support for large specimens Manufactured by: ATCP do Brasil – Alves Teodoro Cerâmicas Piezoelétricas do Brasil Ltda. ATCP Physical Engineering, Sonelastic  Division Rua Lêda Vassimon, 735-A Ribeirão Preto –...
  • Page 3 Copyright Copyright © 2010-2022 by ATCP Physical Engineering All rights reserved. ATCP reserves the right to change the product or this manual without notice. Version 3.0 January/2022...
  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ....................05 2. Definitions ....................05 3. Application and features ................05 4. Configuration, parts, accessories and optional items ........06 5. Parts identification ..................07 6. Specifications ....................08 7. Specimen ...................... 09 7.1 Recommended aspect ratios ..............09 7.2 Placing the specimen ................
  • Page 5: Introduction

    ® Systems. SA-AG Support allows large rectangular and cylindrical specimens to rest on the nodal lines of the fundamental flexural vibration mode (for a specimen of length L, these nodal lines are 0.224L distant from the ends). This support offers a practical system to adjust the distance between the supporting blocks.
  • Page 6: Configuration, Parts, Accessories And Optional Items

    SA-AG Adjustable support for large specimens 4. Configurations, parts, accessories and optional items SA-AG Support consist of two supporting blocks linked by a threaded rod, allowing practical adjustment. It also has an extension rod to expand the maximum distance between the supporting blocks.
  • Page 7: Parts Identification

    Sonelastic ® Systems SA-AG Adjustable support for large specimens 5. Parts identification SA-AG Support 01- Threaded rod; 02- Fastening nut of the supporting block; 03- Supporting block; 04- Supporting frieze; 05- Damper foot; 06- Extension rod. Sturdy Tripod 01- Frame;...
  • Page 8: Specifications

    Sonelastic ® Systems SA-AG Adjustable support for large specimens CA-PD Acoustic Sensor 01-CA-DP Acoustic Sensor; 02- P2 plug (3.5 mm); 03- Flexible cable; 04- Cable gland; 05- Acoustic sensor frame; 06- Vertical mounting base*; 07- Height-adjusting disc**. * The Vertical mounting base allows positioning the acoustic sensor on the vertical, directly below the specimen, for measurements under the manual configuration.
  • Page 9: Specimen

    Sonelastic ® Systems SA-AG Adjustable support for large specimens 7. Specimens 7.1 Recommended aspect ratios Minimum aspect ratios must be observed to avoid coupling between specimen’s vibration modes. In addition, aspect ratio determines the pattern of frequency spectrum of the acoustic response.
  • Page 10: Placing The Specimen

    Sonelastic ® Systems SA-AG Adjustable support for large specimens 7.2 Placing the specimen The specimen should be symmetrically supported and placed over the supporting blocks, with these resting at a distance of 0.224 L from the specimen ends (L is the length of the specimen).
  • Page 11: Support Installation

    8. Support installation 8.1 Requirements - Floor or a flat surface to place the support with a free area large enough to fit the SA-AG Support and the specimens to be tested. - A workbench flat and leveled with a free space of at least 60 x 60 cm (depth and width).
  • Page 12 - SA-AG Support comes partially disassembled to facilitate its transportation. To be able to use it, follow the assembling instructions in 8.3 – Mounting the support in the default configuration, whist checking for descriptions in 5 –...
  • Page 13: Mounting The Support In The Default Configuration

    Sonelastic ® Systems SA-AG Adjustable support for large specimens 8.3 Mounting the support in the default configuration Step 01 - Hold the threaded rod [01] and fit the supporting block fastening nuts [02] on each end at a minimum distance of 60 mm from the tip, as shown next:...
  • Page 14: Mounting The Support With Extension Rod

    After mounting the extension rod, assemble the supporting block [03] and couple the respective fastening nuts to the extension rod ends, as described in step 01. Note: Depending on the specimen length, the SA-AG support may be further extended by using a second extension rod (optional item).
  • Page 15: Support Operation

    SA-AG Adjustable support for large specimens 9. Operating the support After following the steps of 8 – Support Installation, your SA-AG Support are ready for use. 9.1 Positioning the specimen To carry out a fast and precise characterization of specimens using SA-AG Support, follow carefully the steps: Step 01 –...
  • Page 16: Acquisition And Excitation Modes

    Sonelastic ® Systems SA-AG Adjustable support for large specimens 10. Acquisition and excitation modes The table below describes in detail the most practical positions of the acoustic sensor and impulse device for characterizing rectangular specimens, using flexural, torsional and longitudinal vibration modes.
  • Page 17: Warnings And Support Transportation

    Sonelastic ® Systems SA-AG Adjustable support for large specimens Note: Considering the typical arrangements presented, the optimum support form for the flexural mode is also proposed for torsional and longitudinal modes. Nodal lines and the optimum support for these vibration modes, however, do not match the ones for the flexural mode.
  • Page 18: Technical Support And Warranty

    After the 12 months of warranty, parts, expenses and services shall be charged. 15. Statement of responsibility ATCP Physical Engineering takes total technical and legal responsibility over the SA-AG Support and guarantees that all information here provided are true. Page 18 of 19...
  • Page 19: Notes

    Sonelastic ® Systems SA-AG Adjustable support for large specimens Notes: ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Page 19 of 19...
