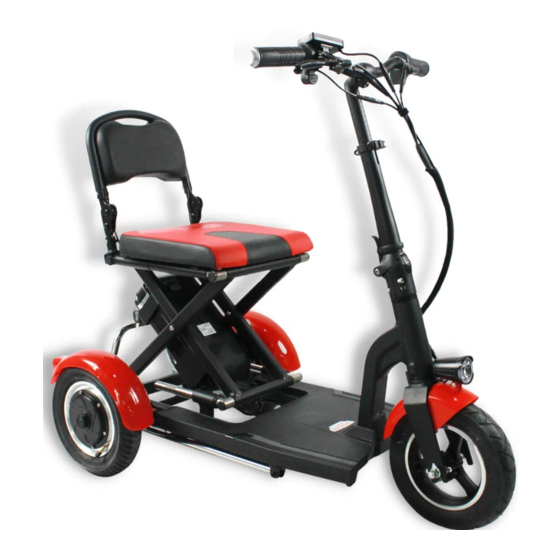

BETTY & BERTIE LUPIN Product Manual

BETTY & BERTIE LUPIN Product Manual

Hide thumbs Also See for LUPIN:

Advertisement

LUPIN
LUPIN
PRODUCT MANUAL
PRODUCT MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUPIN and is the answer not in the manual?

Questions and answers

Mrs Linda Blyth
March 25, 2025

Fitting new battery lock purchased from yourselves due to previous key being lost

1 comments:
Mr. Anderson
March 25, 2025

To fit a new battery lock for the BETTY & BERTIE LUPIN scooter, ensure the battery aligns properly in the tray. The tray has a track down the middle that must slot into the battery. If not aligned correctly, the battery will not lock in place, and the connection may be inconsistent, leading to power failures.

This answer is automatically generated

Summary of Contents for BETTY & BERTIE LUPIN

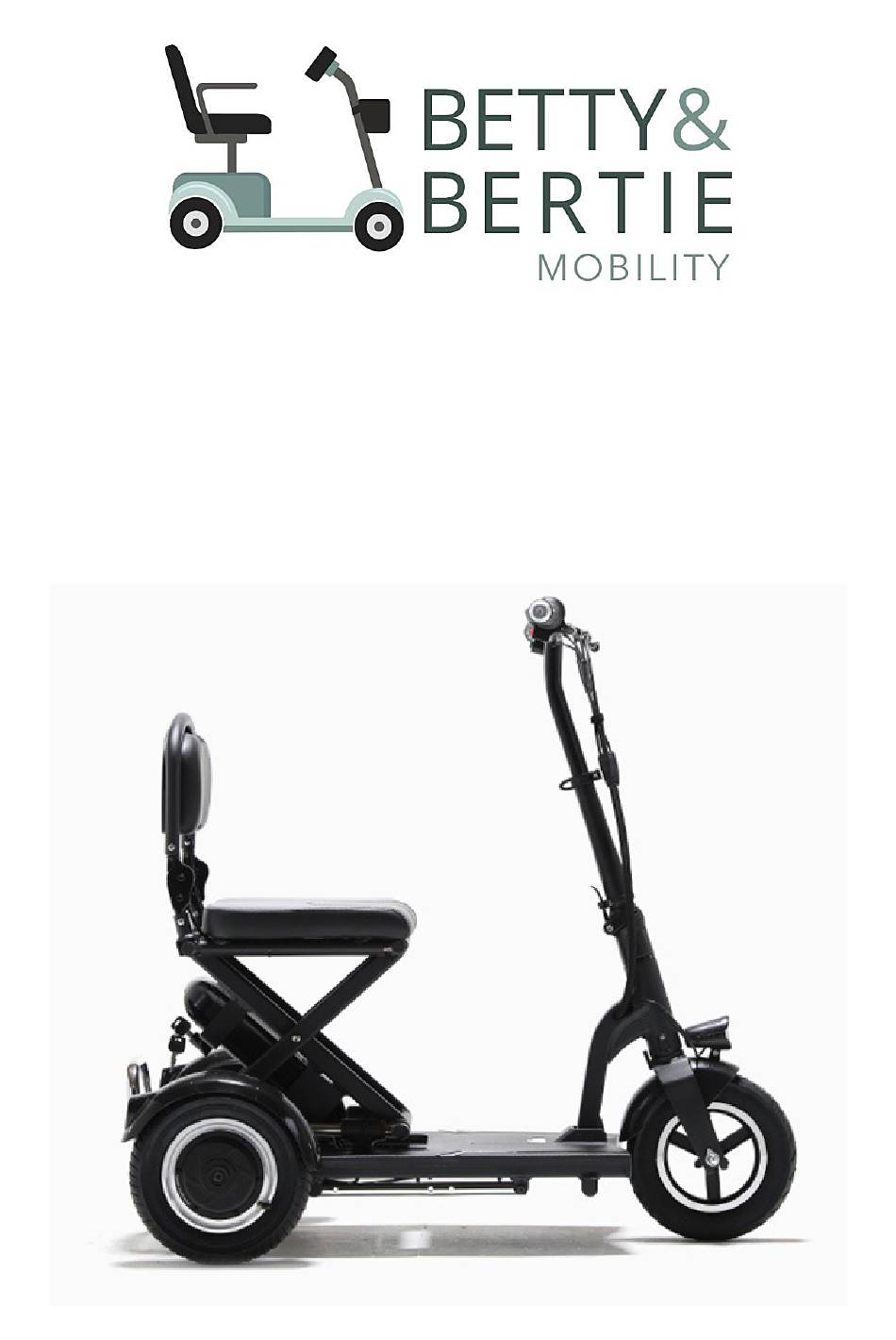

  • Page 1 LUPIN LUPIN PRODUCT MANUAL PRODUCT MANUAL...
  • Page 2: Table Of Contents

    Thank you for choosing me, my name’s Lupin and I’m here to take care of all of your mobility needs! We hope you love the scooter as much as we do. To get your relationship off to the best start we’ve compiled all the information you’ll need in this manual. As well as containing all operation guides we have also listed all safety checks and instructions.
  • Page 3: Important Safety Measures

    1. IMPORTANT SAFETY MEASURES WARNING: DO NOT TRY TO OPERATE THE SCOOTER BEFORE READING THROUGH THE SAFETY MEASURES. The scooter is designed for one person use only. The product is equipped with a lithium-ion battery. Do not disassemble internal parts of the battery. This scooter is intended for use on pavements only.
  • Page 4: Repairs

    3. REPAIRS If your scooter needs a repair then please contact our office who will be able to help you. In order for your warranty to be valid all repairs must go via our Betty and Bertie office. Call Us: 0800 999 6606 OR Email Us: info@bettyandbertie.com 4.
  • Page 5: Operating Instructions - Getting Started

    Set the directional switch to: D: Forward drive R: Reverse NOTICE: Lupin does not emit a warning sound when reversing. HORN BUTTON We advise that you only use it when needed to prevent an accident or injury. NOTICE: The Horn does not disable when turned off. Ensure nothing is touching the horn when folded.
  • Page 6: Setting The Brake

    9. SETTING THE BRAKE When setting the handbrake lock, you may need to squeeze the brake lever tighter to apply to the lock. Handbrake Lock Handbrake Lever TIP: You may find it easier to squeeze with one hand and use the other hand to set the lock CAUTION Make sure the power is OFF when you get on or off of the...
  • Page 7: Inspection & Maintenance

    BATTERY WARNINGS Do not disassemble the battery. Only use the charger provided and do not charge the battery for over 12 hours. Ensure the battery is fully charged before removing from the mains supply. Removing the charger too soon can damage the battery over time.
  • Page 8 15. SECURE STRAP We have included a strap in your delivery that will keep Lupin secure when it is folded and being transported. Feed the strap through the handle at the top of the backrest and through the bar across the footrest. Make sure the grippy side of the strap is on the inside and against the scooter.
  • Page 9: Troubleshooting

    16.TROUBLESHOOTING The following key below indicates some errors that can be assessed through observation. If the problem persists, despite our advised resolution, consult a qualified individual. TROUBLE DESCRIPTION: POSSIBLE CAUSE: Check the battery connection, if there is no problem with Low battery voltage or battery connection problem the connection, try charging the battery Problems with the motor connection...
  • Page 10: Technical Specification

    17.TECHNICAL SPECIFICATION ITEM PARAMETERS (Unfolded): H: 85cm W: 31cm L: 101cm Dimensions (L x W x H) (Folded): H: 73cm W: 31cm L: 101cm Handle bar height 71 - 82.5 cm Controller: Under-voltage protection value (V) 30 +/- 0.5 Controller: Over-current protection value (A) 14 +/- 0.5 Net Weight (with batteries) 23kg...
